1
Engine displacement
500
2
Year
2001
3
Trim
SPORTSMAN 500 HO - A01CH50AK
4
Parts Catalog

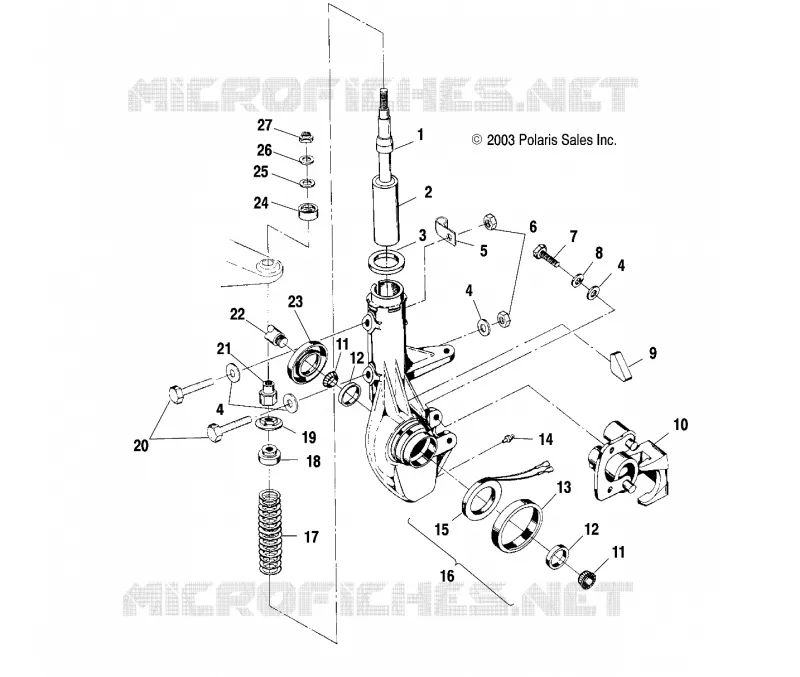

FRONT STRUT
5
Parts Diagram
Parts Catalog
PROP SHAFT
by
FRONT WHEEL
FRONT STRUT
1
BUMPER-MCU 17.80MM ID (After 11/2/98)
5411608
5412665
$12,59 Unit Price incl. VAT
2
Strut Front
7041761
$283,49 Unit Price incl. VAT
3
WASHER-2.06X2.62X.105-Y [BJ/BK/BX/B9]
5211115
$7,34 Unit Price incl. VAT
4
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
5
CLAMP-CABLE
7080367
$4,19 Unit Price incl. VAT
6
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
7
SCREW CAP(10) [CALIPER MOUNTING]
7512365
$2,09 Unit Price incl. VAT
8
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
9
RETAINER WIRE STRUT CAST
5810439
Not Available
10
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
11
BEARING TAPERED ROLLER
3554509
$40,94 Unit Price incl. VAT
12
BRG TAPER ROLL CUP
3554507
$54,59 Unit Price incl. VAT
13
SLEEVE STRUT HUB SEAL
5222193
$120,74 Unit Price incl. VAT
14
FITTING LUB W/BALL
7080306
$5,76 Unit Price incl. VAT
15
Coil Magnetic
2410133
2201313
$241,49 Unit Price incl. VAT
16
HUBSTRUT LH ASM. (Incl. 9 12-15 23)
1820950
Not Available
16
HUBSTRUT RH ASM. (Incl. 9 12-15 23)
1820951
Not Available
17
Spring Compression
7041375067
7042312-067
$120,74 Unit Price incl. VAT
18
RETAINER-SPRING STRUT
5243364
$36,74 Unit Price incl. VAT
19
PIVOT-BALL BOTTOM DELRIN
5432871
$19,94 Unit Price incl. VAT
20
SCR-HH-5/16-18X2.25 GR5 ZY3
7515339
$9,44 Unit Price incl. VAT
21
SPACER-1/2-20 STRUT
5132062
$36,74 Unit Price incl. VAT
22
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
23
SEAL HUB STRUT
3610028
$57,74 Unit Price incl. VAT
24
PIVOT-BALL TOP DELRIN
5432872
$19,94 Unit Price incl. VAT
25
SPACER-RUBBER
5810291
$7,34 Unit Price incl. VAT
26
WSHR-.500X1.50-12GA-Y
7555749
$2,09 Unit Price incl. VAT
27
NUT-1/2-20 NYLOK THIN HT-Y
7547104
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
