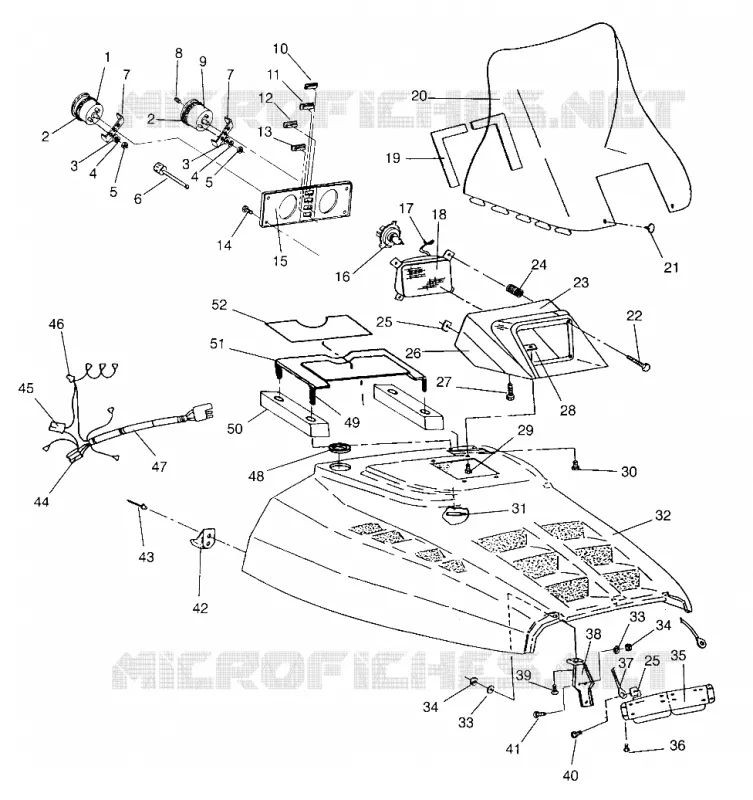

HOOD ULTRA SKS 0960578, EURO ULTRA SKS E960578, AND ULTRA RMK 0960978 (4931683168A010)
5
Parts Diagram
Parts Catalog
NOSEPAN ULTRA SKS 0960578, EUROPEAN ULTRA SKS E960578, and ULTRA RMK 0960 (4931683168A009)
by
FRONT SUSPENSION AND SKI ULTRA SKS 0960578 AND EURO ULTRA SKS E960578 (4931683168B003)
HOOD ULTRA SKS 0960578, EURO ULTRA SKS E960578, AND ULTRA RMK 0960978 (4931683168A010)
1
1
2
2
3
3
4
4
5
5
6
7
7
8
9
9
9
9
10
11
12
13
14
15
16
17
18
19
19
19
19
20
21
22
23
24
25
25
26
27
28
29
30
31
32
33
33
34
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
1
1
2
2
3
3
4
4
5
5
6
7
7
8
9
9
9
9
10
11
12
13
14
15
16
17
18
19
19
19
19
20
21
22
23
24
25
25
26
27
28
29
30
31
32
33
33
34
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
1
1
2
2
3
3
4
4
5
5
6
7
7
8
9
9
9
9
10
11
12
13
14
15
16
17
18
19
19
19
19
20
21
22
23
24
25
25
26
27
28
29
30
31
32
33
33
34
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
1
TACH 6P BACKLIT (Incl. 3 4 6 12)
3280162
Not Available
1
BULB TAILLIGHT(10)
4030015
$8,39 Unit Price incl. VAT
2
CUSHION TACH/SPEEDO RUBBER
3280151
Not Available
3
WASHER FLAT (10)
3280157
$4,19 Unit Price incl. VAT
4
WASHER SPLIT LOCK
3280156
$1,04 Unit Price incl. VAT
5
NUT
3280158
Not Available
6
CABLE SPEEDO.
3280094
$115,49 Unit Price incl. VAT
7
BRKT SPEEDO/TACH
3280153
Not Available
8
KNOB TRIP ODOMETER LH THD.
3280186
$19,94 Unit Price incl. VAT
9
SPEEDO ASM 120MPH.BACKLIT (Incl. 3 4 6 12) (US)
3280188
Not Available
9
SPEEDO 190KPH BACKLIT (Incl. 3 4 6 12) (Euro)
3280190
Not Available
10
INDICATOR#TEMP#WARN.
4040011
$62,99 Unit Price incl. VAT
11
INDICATOR#OIL/BRK#WARN.
4040034
Not Available
12
INDICATOR#HI-BEAM#WARN. (Classic)
4040013
Not Available
13
INDICATOR #ACC#WARN. (Classic)
4040014
Not Available
14
SCREW SCKT.HD.CAP(10)
7512008
Not Available
15
BEZEL INST.
5430924
Not Available
16
BULB HALOGEN
2870448
$36,74 Unit Price incl. VAT
17
RETAINER H/L BULB
4032063
Not Available
18
HEADLIGHT ASM.
4032040
Not Available
19
PAD W/S RH BLACK
5810438
$2,72 Unit Price incl. VAT
19
PAD W/S LH BLACK
5810437
Not Available
20
WINDSHIELD SMOKE STD(LIQ)
5431144
$182,69 Unit Price incl. VAT
21
RIVET PLASTI-LOC
7621509
$2,09 Unit Price incl. VAT
22
SCREW ADJ.(10)
4032003
$9,44 Unit Price incl. VAT
23
HSG INST TOP BLK
5430923070
Not Available
24
SPRING-ADJ
4032002
Not Available
25
NUT SPEED(10)
7670056
Not Available
26
HSG INST.BOTT.BLK.
5430922070
Not Available
27
SCREW(10)
7512009
Not Available
28
NUT U-TYPE SPEED
7670057
$2,09 Unit Price incl. VAT
29
SCREW
7512283
$7,34 Unit Price incl. VAT
30
SCREW(10)
7511877
Not Available
31
RETAINER WINDSHIELD
5410970
$2,09 Unit Price incl. VAT
32
HOOD FOIL/FOAM(ULTRA BK MT)
2631719177
Not Available
33
WASHER-.312 X .734 X .065-Z
7558302
$3,14 Unit Price incl. VAT
34
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
35
PLATE RE-INF. (HD.)
5222105
$66,66 Unit Price incl. VAT
36
SCREW
7511858
$7,34 Unit Price incl. VAT
37
CABLE HD.RETAINER
7080624
Not Available
38
HINGE ASM HD BLK
2635005067
Not Available
39
BOLT-CARRIAGE(10)
7512263
$7,34 Unit Price incl. VAT
40
BOLT
7511989
Not Available
41
SCR-RHCAR-1/4-20X0.75 GR5 ZY3
7512193
$4,19 Unit Price incl. VAT
42
CUP HOOD LATCH
5430733
$10,49 Unit Price incl. VAT
43
RIVET-5/32 BULBEX-B
7621334
$2,09 Unit Price incl. VAT
44
HOUSING
4020115
Not Available
45
HOUSING
4020114
Not Available
46
HOUSING
4020052
Not Available
47
HARNESS HEADLIGHT
2460382
Not Available
48
SHIELD INLET RUBBER
5410835
Not Available
49
STAND-OFF EXTENSION
5431685
Not Available
50
SEAL INTAKE
5811056
Not Available
51
PANEL ASM INTAKE BLK.MET. (Incl. 52)
2620095177
Not Available
52
DECAL WARN.#PK.BRAKE# (Incl. 46)
7075457
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
