CRANKCASE 500 0972764, EUROPEAN 500 E972764, 500 SKS 0972564, EUROPEAN 50 (4938393839C014) FOR EURO 500 SKS - E972564 FROM 1997

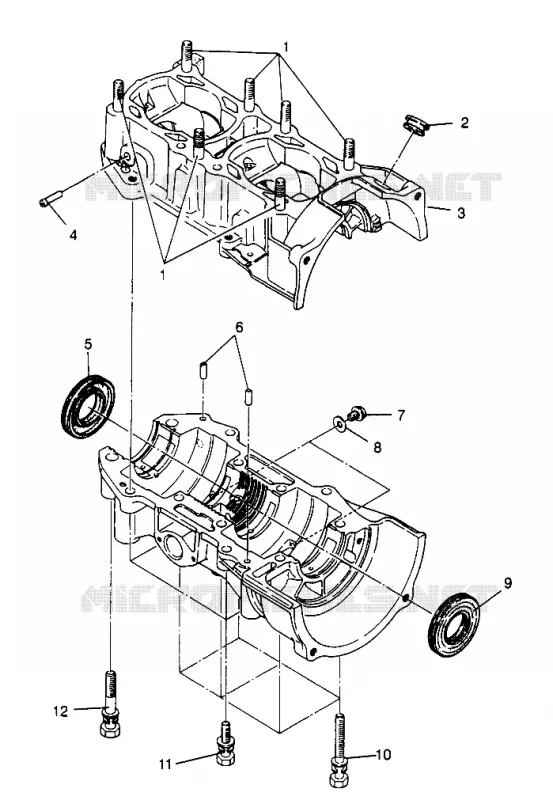

CRANKCASE 500 0972764, EUROPEAN 500 E972764, 500 SKS 0972564, EUROPEAN 50 (4938393839C014)

1

STUD Substituted by 3084119

3080745

$17,84 Unit Price incl. VAT

2

GROMMET

3082875

$13,64 Unit Price incl. VAT

3

CRANKCASE ASM. (Incl. 1 4 5 9-11)

3085199

Not Available

4

PIPE PULSE

3083798

$17,84 Unit Price incl. VAT

5

SEAL OIL (PTO Side)

3085200

Not Available

6

PIN DOWEL(10) Substituted by 3080103

3083054

$13,64 Unit Price incl. VAT

7

BOLT FLANGE(10) Substituted by 3087035

3083568

$7,34 Unit Price incl. VAT

8

GASKET ALUM (10) Substituted by 7555998

3082758

$2,09 Unit Price incl. VAT

9

SEAL OIL(10)

3083045

$62,99 Unit Price incl. VAT

10

BOLT W/WASHER

3080739

$11,54 Unit Price incl. VAT

11

BOLT&WASHER

3083078

Not Available

12

BOLT&WASHER ASM.

3084220

$15,74 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
