Engine displacement
500
2
Year
2009
3
Trim
SCRAMBLER 500 4X4 INTL - A09BG50FA
4
Parts Catalog
FRONT WHEEL
5

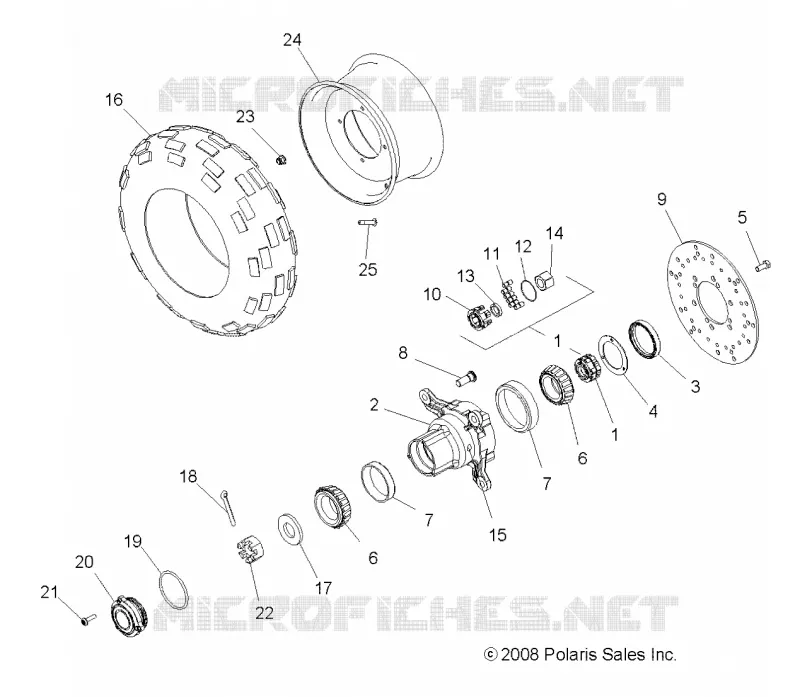

Parts Diagram
Parts Catalog
SUSPENSION, A-ARM AND STRUT MOUNTING
by
REAR WHEEL
FRONT WHEEL
1
1
2
3
4
5
6
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
CLUTCH FR HUB E/M
1520281
$561,74 Unit Price incl. VAT
2
Hub Wheel Short
5131603
Not Available
3
SEAL FR. HUB
3610019
$68,24 Unit Price incl. VAT
4
PLATE ARMATURE
5211148
$52,49 Unit Price incl. VAT
5
SCR-HH-5/16-18X0.75 GR5 ZY3 NY
7512325
$4,19 Unit Price incl. VAT
6
BRG TAPER.ROLL.CONE
3554506
$54,59 Unit Price incl. VAT
7
BRG TAPER ROLL CUP
3554507
$54,59 Unit Price incl. VAT
8
STUD(10)
7515513
$2,09 Unit Price incl. VAT
9
Disc Brake
5240035
Not Available
10
CAGE ROLL
3250028
$430,49 Unit Price incl. VAT
11
ROLLS
3250010
$68,24 Unit Price incl. VAT
12
SPRING GARTER
3250032
$30,44 Unit Price incl. VAT
13
SPACER (Splined Drive Shaft)
1321814
$36,74 Unit Price incl. VAT
14
CAM (Splined Drive Shaft)
3250030
$325,49 Unit Price incl. VAT
15
PLUG PIPE
7052045
$26,24 Unit Price incl. VAT
16
Tire 23x7-10
5412324
Not Available
17
WASHER
7556004
$13,64 Unit Price incl. VAT
18
COTTER PIN-1/8 X 1 1/4-Y
7661402
$3,14 Unit Price incl. VAT
19
O RING
5410470
$4,19 Unit Price incl. VAT
20
CAP HUB 3-LOBE AWD
5432611
$31,49 Unit Price incl. VAT
21
SCR-#10-24-5/8-PN/TORX-M
7512027
$2,09 Unit Price incl. VAT
22
NUT SLOTTED
7542810
$5,76 Unit Price incl. VAT
23
NUT-HXFL-3/8-24 B ZTB P-A
7542459
$3,14 Unit Price incl. VAT
24
Rim Front
1521495
$211,56 Unit Price incl. VAT
25
VALVE-RIM
1525017
$12,59 Unit Price incl. VAT
