1
Engine displacement
500
2
Year
2010
3
Trim
SPORTSMAN TOURING 500 HO - A10DH50AX/AZ
4
Parts Catalog
IGNITION SYSTEM
5

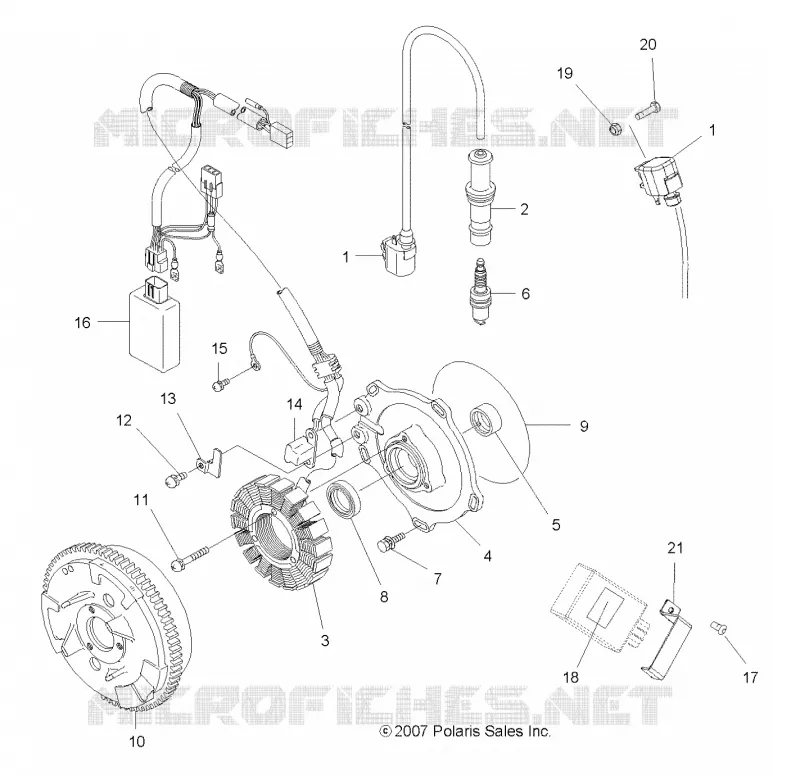

Parts Diagram
Parts Catalog
DRIVE TRAIN, FRONT GEARCASE MOUNTING
by
DRIVE TRAIN, FRONT DRIVE SHAFT
IGNITION SYSTEM
1
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
Asm. Ignition Coil [Incl. 1 2][4x4][6x6]
3089239
$388,49 Unit Price incl. VAT
2
CAP SPARKPLUG *
3084980
$115,49 Unit Price incl. VAT
3
Asm. Plate [Incl. 5 6 8-10 12-15]
3090061
Not Available
4
Plate
3089248
Not Available
4
Asm. Plate [Incl. 5 6 8-10 12-15]
3090061
Not Available
5
BEARING METAL
3084972
Not Available
6
Plug Spark
3070172
$7,34 Unit Price incl. VAT
7
BOLT&WASHER ASM.
3081657
$9,44 Unit Price incl. VAT
8
SEAL OIL
3084973
$52,49 Unit Price incl. VAT
9
O-RING
3084978
$68,24 Unit Price incl. VAT
10
Flywheel w/Ring Gear
3090239
Not Available
11
Asm. Screw and Washer
3089547
$6,29 Unit Price incl. VAT
12
SCREW&WASHER ASM.
3084976
Not Available
13
Band Pulse
3089250
Not Available
14
Coil Pulser [2x4]
3089254
$204,74 Unit Price incl. VAT
15
SCREW&WASHER ASM(10)
3081256
$6,29 Unit Price incl. VAT
16
CDI System
3090270
Not Available
17
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
$9,44 Unit Price incl. VAT
18
PAD
5810317
Not Available
19
NUT-NYLOC 10-24 Y
7541925
$1,56 Unit Price incl. VAT
20
BOLT
7512007
$7,34 Unit Price incl. VAT
21
Bracket CDI Digital Long
5246747
$15,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
