1
Engine displacement
0
2
Year
1993
3
Trim
CLASSIC - 0930864
4
Parts Catalog

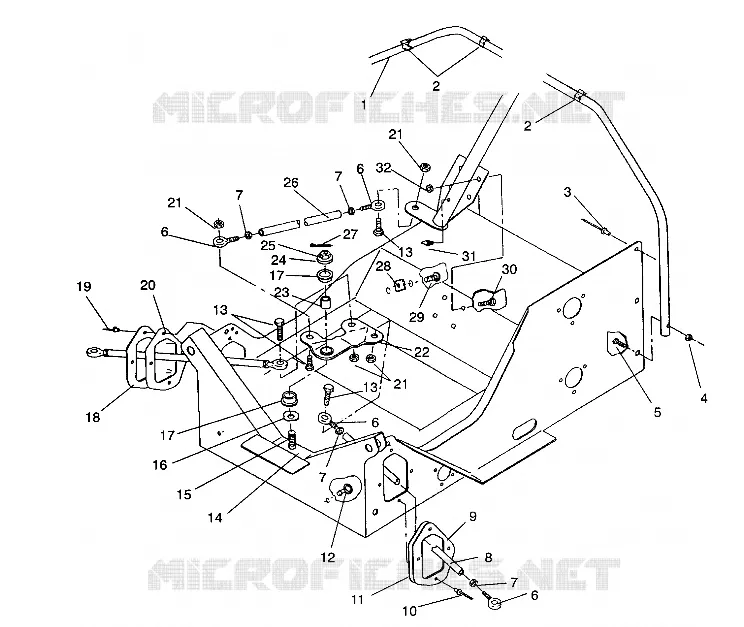

STEERING ASSEMBLY CLASSIC / 0930864 AND CLASSIC TOURING / 0930865 (4922952295019A)
5
Parts Diagram
Parts Catalog
STEERING
by
BATTERY BOX ASSEMBLY CLASSIC TOURING / 0930865 (4922952295024A)
STEERING ASSEMBLY CLASSIC / 0930864 AND CLASSIC TOURING / 0930865 (4922952295019A)
1
2
2
3
4
5
6
6
6
6
6
6
6
6
6
6
6
6
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
8
9
10
11
12
13
13
13
14
15
16
17
17
18
19
20
21
21
21
22
23
24
25
26
27
28
29
30
31
32
1
2
2
3
4
5
6
6
6
6
6
6
6
6
6
6
6
6
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
8
9
10
11
12
13
13
13
14
15
16
17
17
18
19
20
21
21
21
22
23
24
25
26
27
28
29
30
31
32
1
HOOP STEERING
1011513067
Not Available
2
CLIP(10)
7080278
$4,71 Unit Price incl. VAT
3
RIVET (MONOBOLT) Substituted by 7661637
7661620
7661637
$2,09 Unit Price incl. VAT
4
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
5
BOLT-CARRIAGE(10)
7512262
Not Available
6
ROD END RH Substituted by 7060165
7060125
7060165
$99,74 Unit Price incl. VAT
6
ROD END LH Substituted by 7060164
7060124
7060164
$99,74 Unit Price incl. VAT
7
NUT-3/8-24-(L.H.)-Y
7542424
$1,56 Unit Price incl. VAT
7
NUT-3/8-24-2B-Z
7542401
$4,19 Unit Price incl. VAT
8
TIEROD
5020636067
Not Available
9
PLATE LH BOOTSEAL Substituted by 5210959-067
5210959
Not Available
10
RIVET(50)
7621301
Not Available
11
BOOT LH
5410388
Not Available
12
CLIP ROSEBUD
4020139
$9,44 Unit Price incl. VAT
13
SCR-HH-3/8-24X5.5 GR5 ZY3
7512404
$7,34 Unit Price incl. VAT
14
BLOCK STEERING
5630375
Not Available
15
BOLT(10)
7512658
Not Available
16
WASHER-WAVE 7/8X1X.010
7555735
$7,34 Unit Price incl. VAT
17
BUSHING
3563907
$7,34 Unit Price incl. VAT
18
PLATE RH BOOT SEAL
5210904
Not Available
19
POP RIVET(50)
7621303
Not Available
20
BOOT-TIE ROD
5410328
Not Available
21
Nut
7542403
Not Available
22
STRG.ARM CTR BLK.
1822040067
Not Available
23
BUSHING-SPACER
5010161
Not Available
24
WASHER
7555721
$2,09 Unit Price incl. VAT
25
NUT(10)
7542712
$17,84 Unit Price incl. VAT
26
ROD-DRAG LINK
5332712
Not Available
27
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
28
NUT SPEED
7670021
$10,49 Unit Price incl. VAT
29
BOLT-CARRIAGE(10)
7512263
$7,34 Unit Price incl. VAT
30
BOLT(10) Substituted by 7512377
7512394
7512377
$9,44 Unit Price incl. VAT
31
FITTING-LUBE.(10) Substituted by 7080561
7080220
$9,44 Unit Price incl. VAT
32
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
