1
Engine displacement
800
2
Year
2012
3
Trim
SPORTSMAN 800 EFI - A12MH76AD/AX/AZ
4
Parts Catalog
DIPSTICK OIL FILTER
5

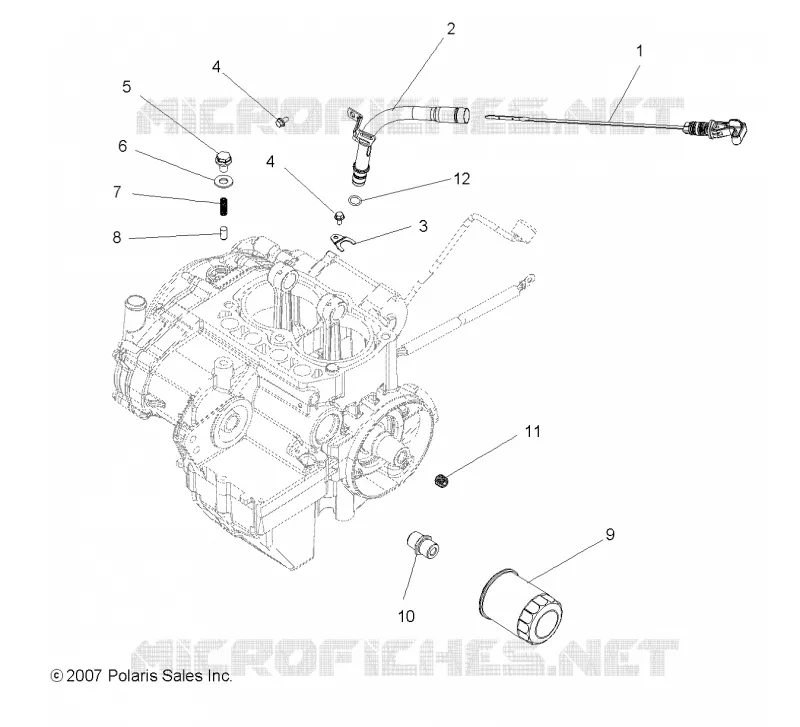

Parts Diagram
Parts Catalog
ENGINE, CRANKSHAFT AND BALANCE SHAFT
by
EXHAUST
DIPSTICK OIL FILTER
1
2
3
4
4
5
6
7
8
9
10
11
12
1
2
3
4
5
5
6
7
8
9
10
11
12
1
ASM. DIPSTICK
1204368
Not Available
2
ASM. TUBE OIL FILL
1202881
$62,99 Unit Price incl. VAT
3
CLAMP OIL FILL TUBE
5254118
$52,49 Unit Price incl. VAT
4
SCREW
7517277
$5,76 Unit Price incl. VAT
5
SCREW
7516824
$73,49 Unit Price incl. VAT
6
WASHER
7556005
$10,49 Unit Price incl. VAT
7
Spring Pressure Relief
7042203
$26,24 Unit Price incl. VAT
8
PIN-DOWELL M8X16
7661127
$26,24 Unit Price incl. VAT
9
FILTER-OIL (10 MICRON)
2540086
$19,20 Unit Price incl. VAT
10
Nipple Oil Filter
2540115
2521388
$52,49 Unit Price incl. VAT
11
PLUG-HEX SOCKET 1/4X18 SEALANT
7518835
$10,49 Unit Price incl. VAT
12
O-RING 12MMX2MM
5414047
$6,81 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
