OIL PUMP ASSEMBLY STORM 0940782 AND STORM SKS 0940582 (4925032503036A)
5
Parts Diagram
Parts Catalog
FUEL PUMP STORM 0940782 AND STORM SKS 0940582 (4925032503035A)
by
MAGNETO ASSEMBLY STORM 0940782 AND STORM SKS 0940582 (4925032503037A)

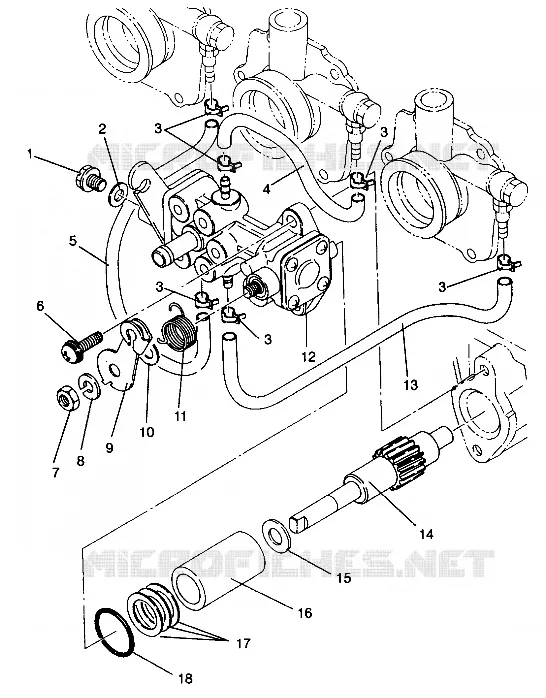

OIL PUMP ASSEMBLY STORM 0940782 AND STORM SKS 0940582 (4925032503036A)
1
SCREW-AIR VENT
3083125
Not Available
2
PACKING(10)
3083126
$7,34 Unit Price incl. VAT
3
CLAMP HOSE
3083141
$2,09 Unit Price incl. VAT
4
PIPE#3 VINYL(L=315) Substituted by 3085591
3083488
Not Available
5
ASM. PIPE VINYL
3084467
8450188
$20,99 Unit Price incl. VAT
6
SCREW&WASHER (10)
3083783
$4,19 Unit Price incl. VAT
7
NUT
3083120
$6,29 Unit Price incl. VAT
8
WASHER SPRING
3083121
1205792
$614,24 Unit Price incl. VAT
9
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
10
COLLAR CAM SHAFT
3083445
$4,19 Unit Price incl. VAT
11
SPRING-RETURN
3083123
Not Available
12
PUMP OIL (Incl. 1 2 7-12 18)
3084668
Not Available
13
PIPE 2 VINYL
3084559
Not Available
14
GEAR SMALL
3084558
Not Available
15
SPACER
3083130
$3,14 Unit Price incl. VAT
16
BUSHING(OIL PUMP)
3083353
$54,59 Unit Price incl. VAT
17
SPACER 3 .6MM
3083673
5141621
$8,39 Unit Price incl. VAT
17
SPACER 2 .3MM
3083672
5141620
$6,29 Unit Price incl. VAT
17
SPACER 1 .15MM
3083671
5141619
$6,29 Unit Price incl. VAT
18
O RING
3083127
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
