1
Engine displacement
570
2
Year
2018
3
Trim
RANGER 570 BASE / EPS
4
Parts Catalog

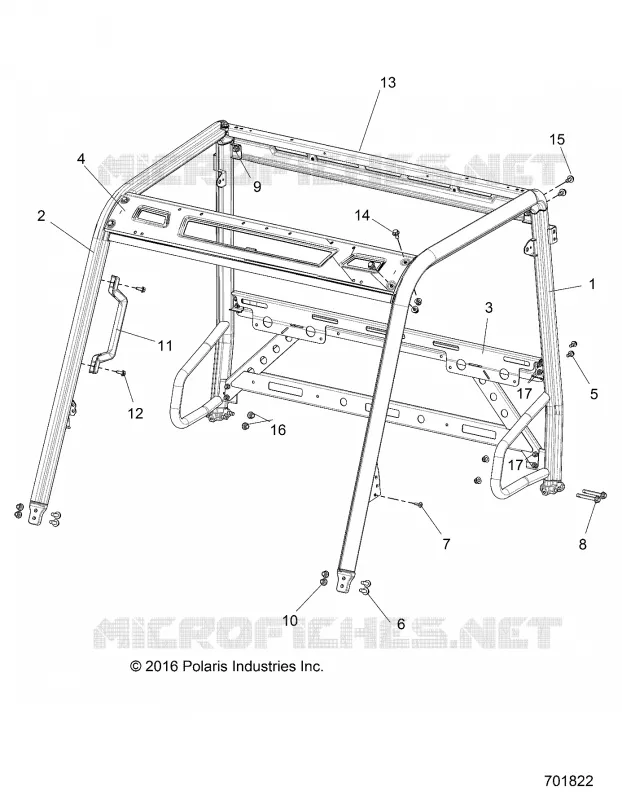

CHASSIS, CAB
5
Parts Diagram
Parts Catalog
BRAKE LINES AND MASTER CYLINDER
by
DRIVE TRAIN, MAIN GEARCASE
CHASSIS, CAB
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
1
FRAME CAB LH MATTE BLACK
1022534458
$913,49 Unit Price incl. VAT
2
FRAME CAB RH MATTE BLACK
1022535458
$997,49 Unit Price incl. VAT
3
CAB FRAME LOWER REAR MATTE BLACK
1022575458
$629,99 Unit Price incl. VAT
4
PLATE-WINDSHIELD MNT ROPS BLK
5258471458
$230,99 Unit Price incl. VAT
5
BOLT-M8X1.25X20 HXHDFLG W/PTCH
7518450
$3,14 Unit Price incl. VAT
6
SCR-HXFL-M10X1.25X30 8.8 ZOD
7519059
$5,76 Unit Price incl. VAT
7
SCR-TFTX-M8X1.25X30 ZFB
7520121
$10,49 Unit Price incl. VAT
8
SCR-M10X1.50X70 HX/FL-Y/D 10.9
7518291
$6,29 Unit Price incl. VAT
9
NUT-M10X1.5 HXFLG NYLON INS
7547313
$2,09 Unit Price incl. VAT
10
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
11
HANDLE-GRAB ROPS BLK
5439299070
$62,99 Unit Price incl. VAT
12
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
$4,19 Unit Price incl. VAT
13
WELD-CAB SUPPORT REAR M.BLK
1021194458
$278,24 Unit Price incl. VAT
14
SCR-HXFL-M10X1.5X20 8.8 Z NYL
7518460
$3,14 Unit Price incl. VAT
15
SCR-HXFL-M10X1.5X30 8.8 ZY3 NY
7520213
$17,84 Unit Price incl. VAT
16
NUT-HXFL-M10X1.5 10 ZY3 SPC
7547841
$2,09 Unit Price incl. VAT
17
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
