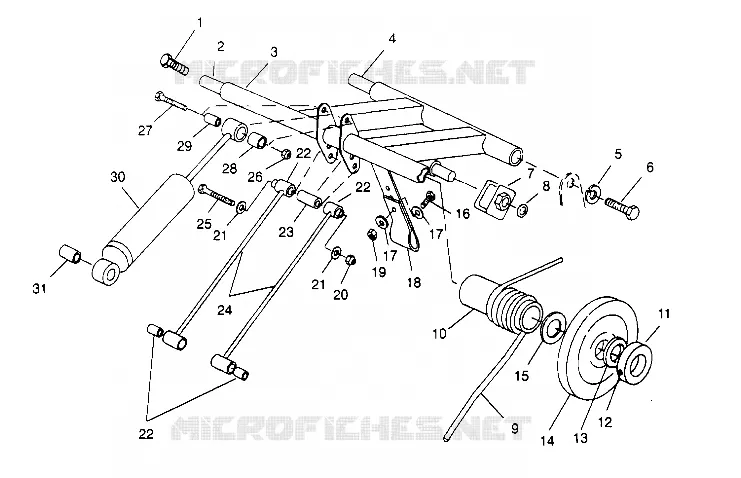

REAR TORQUE ARM 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 09 (4929052905C002) FOR 500 EFI SKS PDLTRK - 0952974 FROM 1995

REAR TORQUE ARM 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 09 (4929052905C002)

1

BOLT NYLOC BLACK(10) Substituted by 7515432 (650 Only)

7515493

Not Available

2

SHAFT MTG REAR

5020570

Not Available

3

ARM R.TORQUE BLK.

1540793067

Not Available

4

SHAFT R.TORQUE ARM

5020727

Not Available

5

WASHER-SPRING-LOCK

7552603

$1,56 Unit Price incl. VAT

6

BOLT(10)

7515526

$2,09 Unit Price incl. VAT

7

ROLLER SPRING ADJ.

5431168

Not Available

8

CLIP PUSH ON

7080394

$4,19 Unit Price incl. VAT

9

SPRING LH R.SUSP BLK. (Soft)

7041246067

Not Available

9

SPRING RH R.SUSP BLK. (Storm)

7041249067

Not Available

9

SPRING LH BLK. (SKS)

7041235067

Not Available

9

SPRING RH R.SUSP BLK. (Soft)

7041247067

Not Available

9

SPRING RH BLK. (SKS)

7041236067

Not Available

9

SPRING LH R.SUSP BLK. (Storm)

7041248067

Not Available

10

TUBE SPRING

5521234

Not Available

11

COLLAR-BRG. LOCK

5010155

Not Available

12

SCREW SOCKET SET

7512257

$7,34 Unit Price incl. VAT

13

WASHER SPRING

7571605

$11,54 Unit Price incl. VAT

14

WHEEL CARRIER

1543023

Not Available

15

BUSHING

7556509

$3,14 Unit Price incl. VAT

16

BOLT(10)

7512247

Not Available

17

WASHER-.270X1.25X.060 FL-Y

7558221

$4,19 Unit Price incl. VAT

18

STRAP LIMITER

5410587

Not Available

19

NUT FLEXLOC

7542103

$10,49 Unit Price incl. VAT

20

NUT FLEX LOC (10)

7542402

$11,54 Unit Price incl. VAT

21

WASHER(10) Substituted by 7555806

7555720

$1,56 Unit Price incl. VAT

22

BUSHING PIVOT TUBE

5020561

$2,61 Unit Price incl. VAT

23

SPACER R.PIVOT ARM

5333026

$4,92 Unit Price incl. VAT

24

ROD SUSP BLK.

1540792067

Not Available

25

SCREW(10)

7512463

$9,44 Unit Price incl. VAT

26

NUT-5/16-18 NYLOK-Y [INTL]

7542324

$1,56 Unit Price incl. VAT

27

SCR-HH-5/16-18X1.75 GR5 ZY3

7512329

$7,34 Unit Price incl. VAT

28

BUSHING

5430537

$7,34 Unit Price incl. VAT

29

BUSHING R.SHOCK

5333030

Not Available

30

SHOCK ASM.

7041237

Not Available

31

BUSHING 1.40

5020657

$27,29 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
