1
Engine displacement
800
2
Year
2003
3
Trim
800 XC SP EDGE M-10 F/O
4
Parts Catalog
FRONT SUSPENSION
5

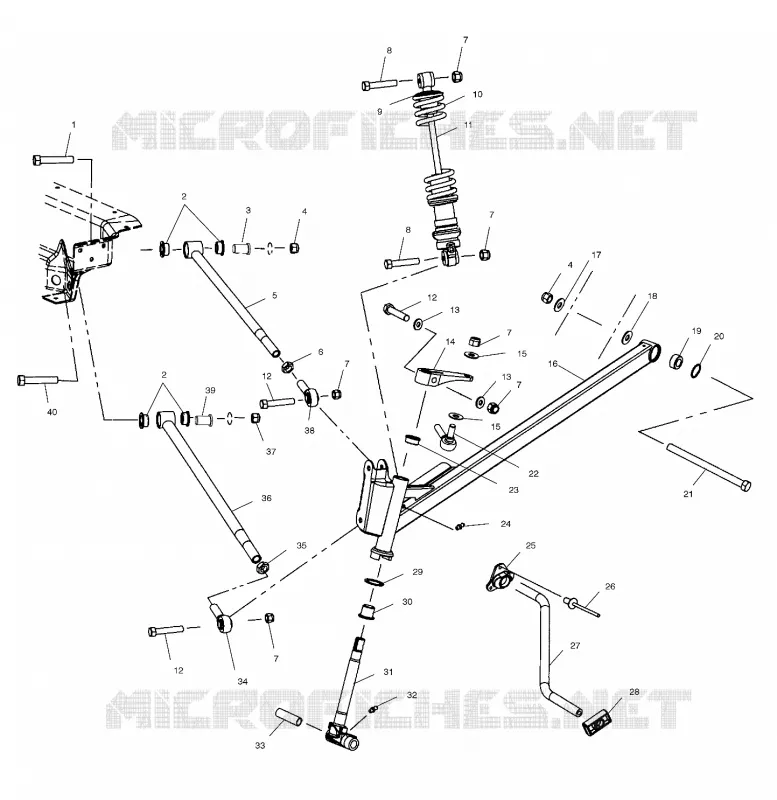

Parts Diagram
Parts Catalog
CONSOLE
by
COOLING SYSTEM
FRONT SUSPENSION
1
BOLT
7517980
$12,59 Unit Price incl. VAT
2
BUSHING-RAD ROD PIVOT INNER
5434036
Not Available
3
BUSHING-SHLDR .443X.750X1.215
5132779
$15,74 Unit Price incl. VAT
4
NUT NYLOK
7547066
$3,14 Unit Price incl. VAT
5
WELD-RADIUS ROD UPPER YELLOW (X)
1820679216
Not Available
5
RADIUS ROD UPPER BLK
1820679067
Not Available
6
NUT JAM(10)
7542520
$4,19 Unit Price incl. VAT
7
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
8
BOLT Substituted by 7515491
7515433
$3,14 Unit Price incl. VAT
9
RETAINER SPRING SLOTTED CAST
5630580
5020618
$36,74 Unit Price incl. VAT
10
SPRING-COMP 68/160# 11.5 BLACK
7041950067
Not Available
11
SHOCK-IFS IFP 11X16.25 ALUM AR
7041976
Not Available
12
SCR-3/8-24X2 HX/CP GR5-Y-SP
7517583
$7,34 Unit Price incl. VAT
13
Washer .105
7555832
$4,19 Unit Price incl. VAT
14
ARM-STEERING MACHINED EDGE
5132728
$135,44 Unit Price incl. VAT
15
WASHER-.390X.940X.030-FL-Y
7555797
$7,34 Unit Price incl. VAT
16
ASM-TRAILING ARM SVC RH RED (Incl. 20 21)
1821166293
Not Available
16
Asm. Trailing Arm Yellow RH [Incl. 19 20]
1821166216
Not Available
16
Asm. Trailing Arm Cloud Silver LH [Incl. 20 21]
1821165385
Not Available
16
ASM-TRAILING ARM SVC LH RED (Incl. 20 21)
1821165293
Not Available
16
Asm. Trailing Arm Cloud Silver RH [Incl. 20 21]
1821166385
Not Available
16
Asm. Trailing Arm Yellow LH [Incl. 19 20]
1821165216
$519,74 Unit Price incl. VAT
17
WASHER FLAT
7555820
$7,34 Unit Price incl. VAT
18
CUP TRAILING ARM MNT
5132364
$36,74 Unit Price incl. VAT
19
BEARING-SPHERICAL 7/16 PLASTIC
7061042
$54,59 Unit Price incl. VAT
20
RING RETAINING(10)
7710437
$5,76 Unit Price incl. VAT
21
BOLT
7512099
$36,74 Unit Price incl. VAT
22
ROD END-3/8 PL 75° 1.00 RH
7061057
$99,74 Unit Price incl. VAT
23
BUSHING FLANGE
3573909
$4,19 Unit Price incl. VAT
24
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
25
BUSHING-TORSION BAR
5433234
$40,94 Unit Price incl. VAT
26
RIVET(50)
7621452
$2,09 Unit Price incl. VAT
27
BAR TRSN 1/2 42.5 EDGE BLK
5244415067
Not Available
28
Slide Torsion Bar
5434369
Not Available
29
BUSHING
7556509
$3,14 Unit Price incl. VAT
30
BUSHING FLANGED
3574208
$6,29 Unit Price incl. VAT
31
SHAFT-SPINDLE W/STEER STOP BLK
6230225067
$330,74 Unit Price incl. VAT
32
FITTING LUB W/BALL
7080306
$5,76 Unit Price incl. VAT
33
BUSHING [BEA]
5010158
$27,29 Unit Price incl. VAT
34
ROD END RADIUS 1/2
7061060
$99,74 Unit Price incl. VAT
35
NUT-1/2-20 HX JM-Y
7542711
$4,19 Unit Price incl. VAT
36
WELD-RADIUS ROD LOWER YELLOW (X)
1820677216
1820677-067
$157,49 Unit Price incl. VAT
36
RADIUS ROD LOWER BLK
1820677067
$157,49 Unit Price incl. VAT
37
NUT NYLON
7547065
$7,34 Unit Price incl. VAT
38
ROD END RADIUS 7/16
7061061
$99,74 Unit Price incl. VAT
39
BUSHING-SHLDR .505X.750X1.215
5132780
$13,64 Unit Price incl. VAT
40
BOLT(10)
7512684
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
