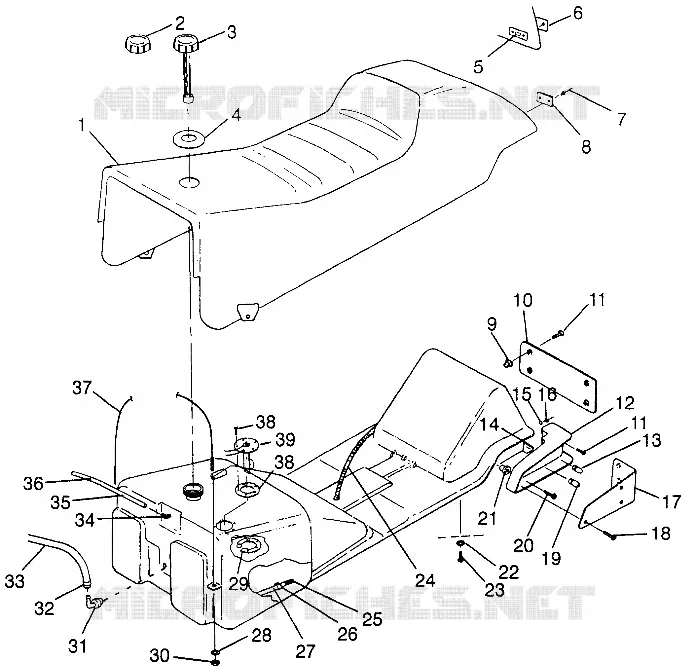

SEAT GAS TANK ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTR (4939533953A006) FOR ULTRA SPX

COVER SEAT

2681972

Not Available

SEAT ASM.

2681967

Not Available

SEAT ASM 121 W/SENDER

2682175

Not Available

GASKET GAS CAP

5810513

$15,74 Unit Price incl. VAT

CAP FUELTANK W/GASKET

2511226

Not Available

CAP GAS W/GAUGE

2511248

$83,99 Unit Price incl. VAT

GROMMET FUELTANK

5410815

Not Available

GROMMET RELATCH 1# BOTT.(10)

7080550

Not Available

GROMMET RELATCH 1# TOP(10)

7080549

Not Available

RIVET(50)

7621337

$2,09 Unit Price incl. VAT

TWISTLOCK RELATCH 1# W/HOLE(10)

7080548

Not Available

NUT(10)

7546908

$4,71 Unit Price incl. VAT

REFLECTOR CTR SEAT

5432008

Not Available

SCREW SELF-TAP(10)

7522004

Not Available

HOUSING LH LENS

5432002

Not Available

HOUSING RH LENS

5432003

Not Available

BULB BRAKELIGHT

4030045

Not Available

BRKT SEAT MT BLK. Substituted by 1012643-067

1012391067

Not Available

BURR-RIVET

7555904

$1,56 Unit Price incl. VAT

RIVET

7621433

$2,09 Unit Price incl. VAT

LENS RH

5432032

$83,99 Unit Price incl. VAT

LENS LH

5432031

Not Available

SCREW

7512054

$4,19 Unit Price incl. VAT

BULB T/L.

4032084

Not Available

SCREW(10)

7511954

Not Available

NUT WELL(10)

7541901

$11,54 Unit Price incl. VAT

WASHER [INTL]

7558301

$2,09 Unit Price incl. VAT

SCR-1/4-20X1 1/4-TRIRD HX WH-Y

7512242

$4,19 Unit Price incl. VAT

HARNESS T/L 121 (SCULPT)

2460541

Not Available

FUELPICKUP W/STRAINER

7052037

7052301

$26,24 Unit Price incl. VAT

RING COMPRESSION

7080402

$3,14 Unit Price incl. VAT

HOSE [BULK SVC]

84500031525

$136,49 Unit Price incl. VAT

NUT-NYLOC 10-24 Y

7541925

$1,56 Unit Price incl. VAT

MTG.FLANGE FUELTANK Substituted by 5244067

5211308

Not Available

BURR RIVET(50) Substituted by 7555904

7555746

7555904

$1,56 Unit Price incl. VAT

FITTING OUT 90 DEG DOUBLE

7052143

Not Available

HOSE CLAMP RED

7080003

$2,09 Unit Price incl. VAT

FUEL LINE 5 FT.

8450045153

8450123-153

$157,49 Unit Price incl. VAT

FITTING 90 DEGREE

7052095

$9,44 Unit Price incl. VAT

SPRING PROTECT.VENTHOSE

7041605

Not Available

HOSE-POLY CLEAR 3/16 OD 1/8 ID

8360009600

$83,99 Unit Price incl. VAT

CABLE TANK RETENTION

7080559

Not Available

HDWE.PKG SEND.UNIT

2410012

Not Available

SENDER FUEL-LEVEL W/GASKET

3280227

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
