1
Engine displacement
325
2
Year
2001
3
Trim
MAGNUM 325 2X4 - A01CB32AB
4
Parts Catalog

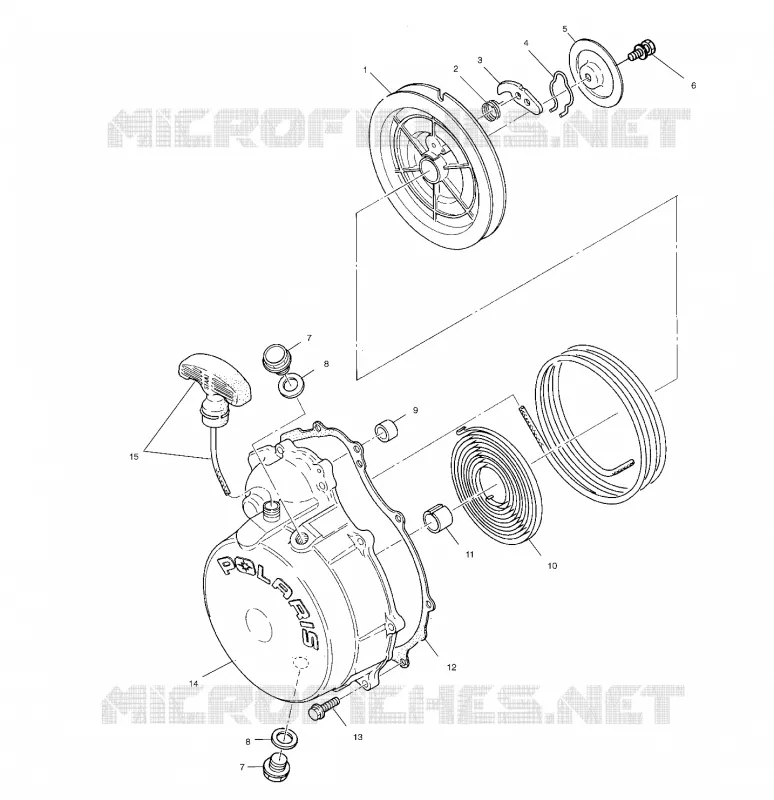

RECOIL STARTER
5
Parts Diagram
Parts Catalog
CRANKCASE
by
OIL PUMP AND OIL FILTER
RECOIL STARTER
1
REEL STARTER
3084822
$167,99 Unit Price incl. VAT
2
SPRING RETURN
3083463
$8,39 Unit Price incl. VAT
3
RATCHET
3083378
$36,74 Unit Price incl. VAT
4
SPRING FRICTION
3083379
$52,49 Unit Price incl. VAT
5
Plate Friction
3086896
Not Available
6
BOLT&WASHER ASM.
3085266
Not Available
7
PLUG
3086749
Not Available
8
GASKET
3082956
$9,44 Unit Price incl. VAT
9
BUSHING STARTER
3083669
Not Available
10
Spring Power
3083185
$52,80 Unit Price incl. VAT
11
BUSH
3084750
$13,64 Unit Price incl. VAT
12
GASKET RECOIL
3084933
Not Available
13
BOLT FLANGE(10)
3084877
Not Available
14
Starter Case [Incl. 11]
3087059
Not Available
14
Asm. Recoil [Incl. 1-6 9-11 14 15]
3087054
Not Available
15
ROPE ASM
3085083
$73,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
