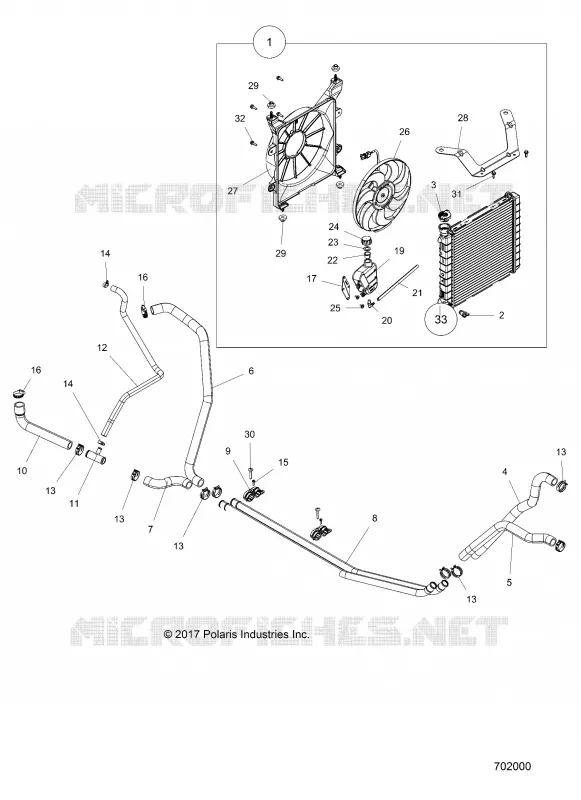

COOLING SYSTEM FOR RANGER 500 2WD HDPE FROM 2019

COOLING SYSTEM

1

ASM-RADIATOR [INCL. 18 21 29]

1240955

$850,49 Unit Price incl. VAT

2

VALVE-PLASTIC RAD/COOLER DRAIN

7052617

$52,49 Unit Price incl. VAT

3

CAP-PRESSURE

1240899

$73,49 Unit Price incl. VAT

4

HOSE UPPER RADIATOR

5415269

$99,74 Unit Price incl. VAT

5

HOSE LOWER RADIATOR

5415526

$83,99 Unit Price incl. VAT

6

HOSE-ENGINE OUTLET REAR

5416553

$99,74 Unit Price incl. VAT

7

HOSE-LOWER ENGINE SHORT

5415054

$62,99 Unit Price incl. VAT

8

TUBE COOLANT 1"

5139239

Not Available

9

BRACKET-COOLANT TUBE

5451221

$16,79 Unit Price incl. VAT

10

HOSE-BYPASS 1IN FORMED

5414162

$73,49 Unit Price incl. VAT

11

CONNECTOR-TEE 1X1X0.5

7052530

$10,49 Unit Price incl. VAT

12

HOSE-BYPASS 1/2IN FORMED

5414590

$83,99 Unit Price incl. VAT

13

CLAMP BROWN OR SILVER 32/12

7080843

$7,34 Unit Price incl. VAT

14

CLAMP-HOSE .875-SS

7080474

$13,64 Unit Price incl. VAT

15

SCREW-M6X1.0X20-HX/FL-Y/D

7516822

$4,19 Unit Price incl. VAT

16

CLAMP-HOSE(WORM DR)25-40MM

7081192

$14,69 Unit Price incl. VAT

17

BRACKET SURGE TANK

5254763

$10,49 Unit Price incl. VAT

19

TANK-SURGE

5436936

$152,24 Unit Price incl. VAT

20

FITTING-1/8-27 BARBED 90 DEG

7052065

$13,64 Unit Price incl. VAT

21

HOSE [BULK SVC]

84500031525

$136,49 Unit Price incl. VAT

22

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$10,49 Unit Price incl. VAT

23

GASKET-OVERFLOW CAP

5810279

$4,19 Unit Price incl. VAT

24

CAP-OVER FLOW BOTTLE DRILLED

5430743

$10,49 Unit Price incl. VAT

25

SCR-10-24X1/2 PHTXTRIRD SEMS-Y

7512084

$2,09 Unit Price incl. VAT

26

FAN-ASSEMBLY SHROUD

2413196

$493,49 Unit Price incl. VAT

27

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

28

BRACKET RADIATOR MOUNT MATTE BLACK

5260846458

$62,99 Unit Price incl. VAT

29

GROMMET-FLANGED .36X.56X1.06

7052028

$11,54 Unit Price incl. VAT

30

SCR-TXTH-M6X1.0X50 8.8 ZPB

7519001

$7,34 Unit Price incl. VAT

31

SCR-M6X1.0X20 HXHD FLG TDFM BK

7518529

$2,09 Unit Price incl. VAT

32

SCREW-M6X1.0X20-HX/FL-Y/D

7516822

$4,19 Unit Price incl. VAT

33

ASM-RADIATOR CORE

1240956

$834,74 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
