1
Engine displacement
325
2
Year
2002
3
Trim
MAGNUM 325 4X4 FREEDOM - A02CD32AC
4
Parts Catalog

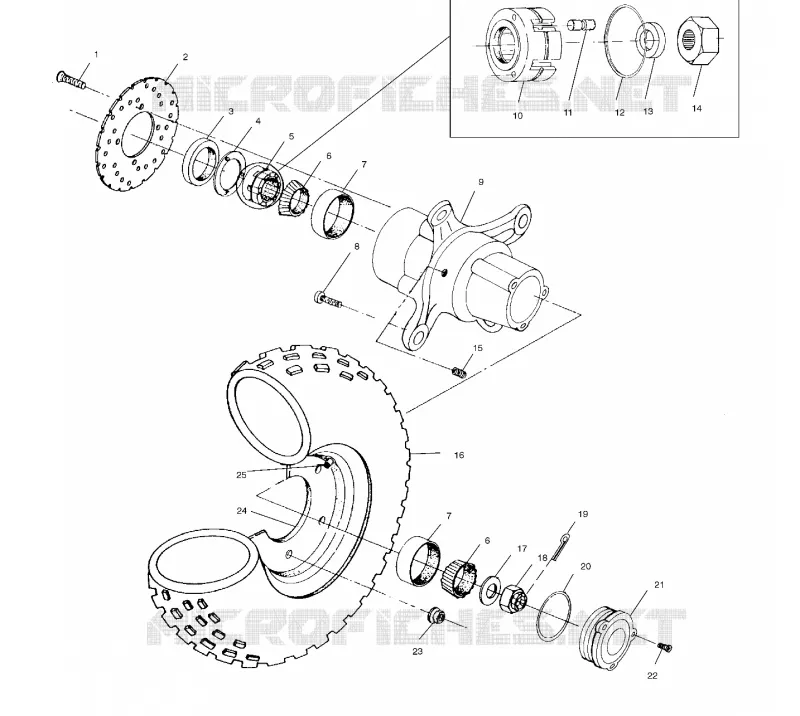

FRONT WHEEL
5
Parts Diagram
Parts Catalog
FRONT STRUT
by
DRIVE CLUTCH
FRONT WHEEL
1
SCR-HH-5/16-18X0.75 GR5 ZY3 NY
7512325
$4,19 Unit Price incl. VAT
2
DISC BRAKE 7.21 OD .150
5243675
Not Available
2
Disc Brake (If built after 7/31/02)
5246832
Not Available
3
SEAL FR. HUB
3610019
$68,24 Unit Price incl. VAT
4
PLATE ARMATURE
5211148
$52,49 Unit Price incl. VAT
5
CLUTCH FR HUB E/M
1520281
$561,74 Unit Price incl. VAT
6
BRG TAPER.ROLL.CONE
3554506
$54,59 Unit Price incl. VAT
7
BRG TAPER ROLL CUP
3554507
$54,59 Unit Price incl. VAT
8
STUD(10)
7515523
$5,76 Unit Price incl. VAT
9
HUB ASM SHRT(3-LOBE)W/BRG RACE (Incl. 3 7 15)
1520243
Not Available
10
CAGE ROLL
3250028
$430,49 Unit Price incl. VAT
11
ROLLS
3250010
$68,24 Unit Price incl. VAT
12
SPRING GARTER
3250032
$30,44 Unit Price incl. VAT
13
SPACER (Splined Drive Shaft)
1321814
$36,74 Unit Price incl. VAT
14
CAM (Splined Drive Shaft)
3250030
$325,49 Unit Price incl. VAT
15
PLUG PIPE
7052045
$26,24 Unit Price incl. VAT
16
TIRE 24X8-12 TITAN (24x8-12)
5411709
Not Available
17
WASHER
7556004
$13,64 Unit Price incl. VAT
18
NUT SLOTTED
7542810
$5,76 Unit Price incl. VAT
19
PIN COTTER
7661401
$1,56 Unit Price incl. VAT
20
O RING
5410470
$4,19 Unit Price incl. VAT
21
CAP HUB 3-LOBE AWD
5432611
$31,49 Unit Price incl. VAT
22
SCR-#10-24-5/8-PN/TORX-M
7512027
$2,09 Unit Price incl. VAT
23
NUT-HXFL-3/8-24 B ZTB P-A
7542459
$3,14 Unit Price incl. VAT
24
Rim Front Black
1520269117
1523448-067
$158,54 Unit Price incl. VAT
24
Rim Front Black (AC)(AD) [TO 9/1/2023]
1520269067
1523448-067
$158,54 Unit Price incl. VAT
25
VALVE-RIM
1525017
$12,59 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
