1
Engine displacement
550
2
Year
2010
3
Trim
SPORTSMAN EPS 550 INTL - A10ZX55FX/FF
4
Parts Catalog
DRIVE TRAIN, FRONT GEARCASE INTERNALS (BUILT 3/05/10 AND BEFORE)
5

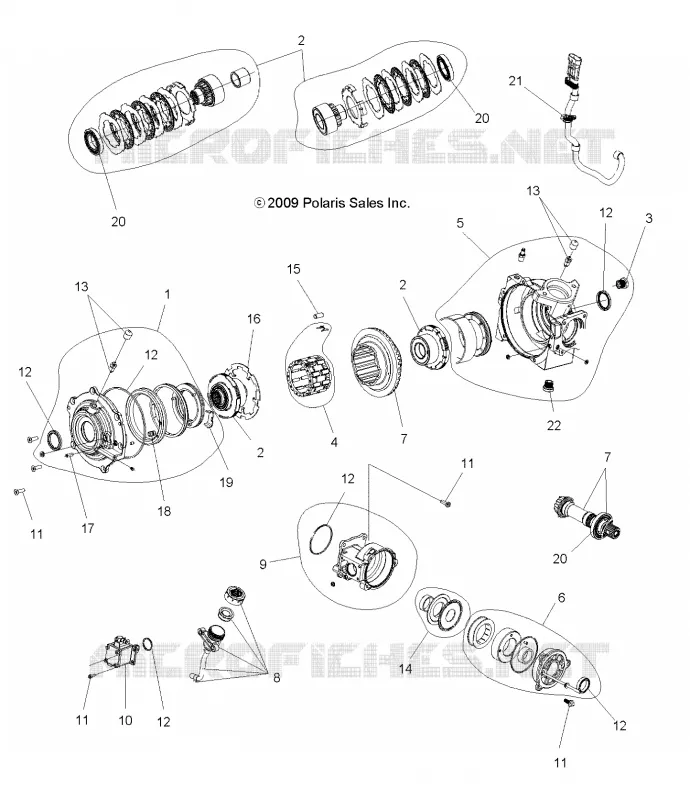

Parts Diagram
Parts Catalog
BATTERY
by
DRIVE TRAIN, DRIVE REAR SHAFT (BUILT 11/17/09 AND AFTER)
DRIVE TRAIN, FRONT GEARCASE INTERNALS (BUILT 3/05/10 AND BEFORE)
-
-
1
2
2
2
3
4
4
5
6
7
7
8
9
10
11
11
11
11
12
12
12
12
12
12
13
13
14
15
16
17
18
19
20
20
20
21
22
-
SPRING TORSION RETAINER
3234908
$173,24 Unit Price incl. VAT
-
Asm. Gearcase Pinless ADC
1332828
1332963
$3 008,24 Unit Price incl. VAT
1
Asm. Output Cover [Incl. O-Ring Dowel Pin Set Screw Seal Cover Bleeder Thrust Button Plates 4WD Coil Piston Grommet Coil Pocket Insert]
3234742
Not Available
2
Kit Hub Output Male and Female [Incl. Hubs Disks Bearings]
3235054
Not Available
3
KIT-PLUG FILL
2203739
$83,99 Unit Price incl. VAT
4
Asm. Roll Cage Aluminum NT [Opt]
3235263
$1 112,99 Unit Price incl. VAT
4
Asm. Roll Cage [Incl. 25 26]
3234466
Not Available
5
Asm. Gearcase ADC [Incl. Case Plugs Vent Bleeder Seal Piston Bushing]
3234747
$1 380,74 Unit Price incl. VAT
6
Asm. Cover Input [Incl. Seals Bearing Coil Grommet]
3234748
$367,49 Unit Price incl. VAT
7
Kit Gear Ring and Pinion [Incl. Pinion Bearing Ring Gear]
3235055
$1 070,99 Unit Price incl. VAT
8
Asm. Reservoir
3234751
$136,49 Unit Price incl. VAT
9
Asm. Neck [Incl. Neck O-Ring]
3234752
$1 139,24 Unit Price incl. VAT
10
Asm. Pump [Incl. Complete Pump]
3234750
$687,74 Unit Price incl. VAT
11
Kit Fastener [Incl. All Fasteners]
3234745
$115,49 Unit Price incl. VAT
12
Kit Seal Repair [Incl. All Seals O-Rings]
3234746
$136,49 Unit Price incl. VAT
13
Asm. Breather Tube
3234431
$68,24 Unit Price incl. VAT
14
Kit Cam & Armature
3234434
$272,99 Unit Price incl. VAT
15
KIT ROLLER [INCL. COMPLETE SET OF 20 ROLLERS]
3234393
$10,49 Unit Price incl. VAT
16
PLATE ARMATURE
3234407
$209,99 Unit Price incl. VAT
17
Screw Set
2203731
$52,49 Unit Price incl. VAT
18
Button Thrust
2203732
$62,99 Unit Price incl. VAT
19
Button Thrust
2203733
$52,49 Unit Price incl. VAT
20
BEARING
3234390
$60,89 Unit Price incl. VAT
21
Clip
3234601
$9,44 Unit Price incl. VAT
22
KIT-PLUG DRAIN
2203738
$68,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
