BODY, PASSENGER SEAT BOTTOM AND SEAT BACK FOR SPORTSMAN TOURING 800 EFI - A08DN76AF/AG/AH/AL/AJ/AS FROM 2008

ENGINE, MOUNTING

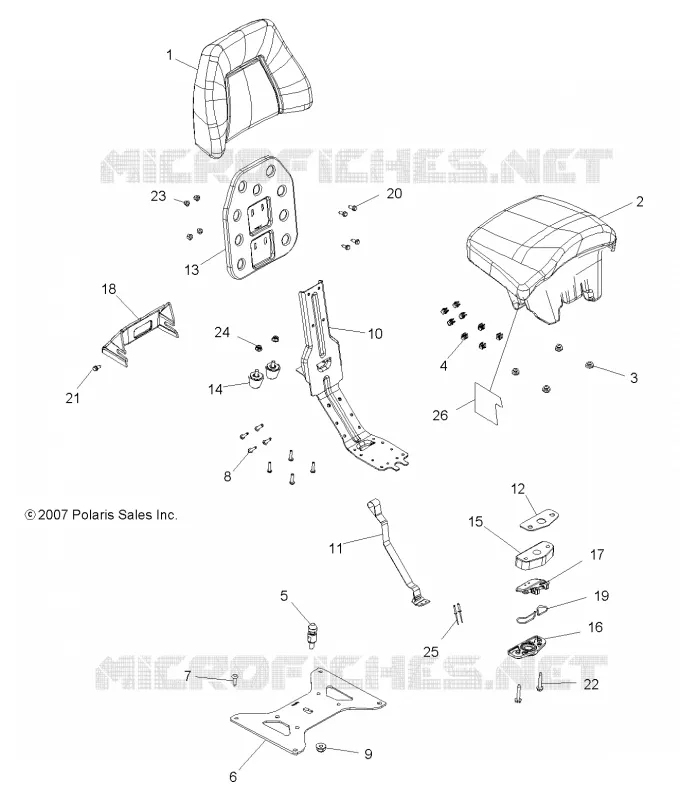

BODY, PASSENGER SEAT BOTTOM AND SEAT BACK

1

ASM. PASSENGER SEAT BACK COVER

2684113

$257,24 Unit Price incl. VAT

1

Asm. Seat Passenger Back [Incl. Cover]

2684091

$451,49 Unit Price incl. VAT

2

Covering Seat Black

2684112070

$220,49 Unit Price incl. VAT

2

Asm. Seat Passenger Bottom [Incl. 26]

2684118070

Not Available

3

BUMPER-RUBBER

5412067

$7,34 Unit Price incl. VAT

4

CLIP EXPANSION 6MM

7081304

$13,64 Unit Price incl. VAT

5

Plunger Latch

5136319

$47,24 Unit Price incl. VAT

6

Plate Seat Plunger Black

5251350067

$52,49 Unit Price incl. VAT

7

SCR-1/4-20X.75 TR/TX-M

7518280

$2,09 Unit Price incl. VAT

8

SCR-TXPHM6X1.0X25 8.8 RIE

7518535

$7,34 Unit Price incl. VAT

9

NUT-5/16-18 HX FLG NL-Y [INTL]

7542343

$9,44 Unit Price incl. VAT

10

Support Seat Back Black

1016116067

$178,49 Unit Price incl. VAT

11

Asm. Strap Seat Latch

2684130

$52,49 Unit Price incl. VAT

12

Plate Seat Latch

5251162

Not Available

13

PLATE SEAT BACK SUPPORT

5251351329

Not Available

14

Bumper Rubber

5413358

$16,79 Unit Price incl. VAT

15

BODY-LATCH SEAT

5437119

$13,64 Unit Price incl. VAT

16

CAP LATCH SEAT

5437120

$16,79 Unit Price incl. VAT

17

HANDLE-SEAT BASE LATCH

5437121

$9,44 Unit Price incl. VAT

18

Cover Seat Passenger Support

5437296

Not Available

19

SPRING LATCH SEAT

7081466

$57,74 Unit Price incl. VAT

20

SCREW

7512253

$7,34 Unit Price incl. VAT

21

SCREW [No Longer Available] (Sport)

7517417

Not Available

22

SCR-1/4-20X1.50-HX/TAP-R MAG

7518418

$7,34 Unit Price incl. VAT

23

NUT NYLOK FLANGED 1/4 [INTL]

7542153

$3,14 Unit Price incl. VAT

24

NUT-5/16-18 HX FLG NL-Y [INTL]

7542343

$9,44 Unit Price incl. VAT

25

RIVET-POP

7621220

$4,19 Unit Price incl. VAT

26

Foil Seat Base Passenger

5813323

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
