1
Engine displacement
325
2
Year
2001
3
Trim
MAGNUM 325 2X4 - A01CB32AB
4
Parts Catalog

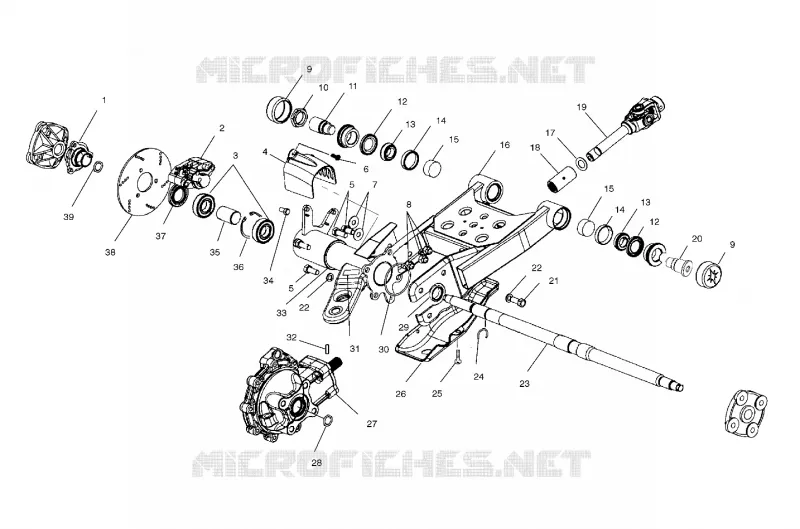

SWING ARM/REAR GEARCASE MOUNTING
5
Parts Diagram
Parts Catalog
ELECTRICAL/TAILLIGHT
by
SHOCK MOUNTING
SWING ARM/REAR GEARCASE MOUNTING
1
HUB BRAKE DISC MACH
5132152
Not Available
2
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
3
BEARING BALL DBL.SEAL
3513523
Not Available
4
SHIELD-BRAKE LINE REAR
5411653
$11,96 Unit Price incl. VAT
5
Bolt
7517604
Not Available
6
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
7
WASHER
7555721
$2,09 Unit Price incl. VAT
8
NUT FLEX (10)
7542703
Not Available
9
Cap Pivot Swing Arm
5411532
Not Available
10
Nut Jam
5131863
Not Available
11
Pivot Threaded
5131864
Not Available
12
Seal Pivot Swing Arm
3610072
Not Available
13
BRG TAPER.ROLL.CONE
3554506
$54,59 Unit Price incl. VAT
14
BRG TAPER ROLL CUP
3554507
$54,59 Unit Price incl. VAT
15
Seal Pivot Swing Arm
5411602
Not Available
16
Asm. Swing Arm [Incl. 14 15]
1541577
Not Available
17
O-RING-.859X1.137X.139
5411092
$3,14 Unit Price incl. VAT
18
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
18
Coupling Prop Shaft Greased
5132201
$115,49 Unit Price incl. VAT
19
Asm. Prop Shaft Rear
1380137
$309,74 Unit Price incl. VAT
20
Pivot Swing Arm
5132683
Not Available
21
Bolt
7517585
$9,44 Unit Price incl. VAT
22
WASHER SPLIT LOCK
7553201
$7,34 Unit Price incl. VAT
23
AXLE REAR
5131862
$430,49 Unit Price incl. VAT
24
RING RETAINING
7710482
Not Available
25
Screw
7517612
Not Available
26
Plate Skid Rear Housing
5242851067
$31,80 Unit Price incl. VAT
26
Pad Rubber
5811716
Not Available
26
Asm. Skid Plate Rear
1012881
$93,54 Unit Price incl. VAT
27
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
28
O-Ring
5411531
Not Available
29
COLLAR R.AXLE LOCK
5131930
Not Available
30
O-Ring
5411707
Not Available
31
DECAL HITCH Substituted by 7078261
7072533
Not Available
32
PIN-SPRING 5/16 X 1 5/8-Y
7661913
$7,34 Unit Price incl. VAT
33
AXLE TUBE WELD LH BLK (If built after 3/01/00)
1013193067
Not Available
34
BOLT(10)
7515481
$4,71 Unit Price incl. VAT
35
SPACER-BEARING
5132075
Not Available
36
RING RETAINING
7710471
$25,19 Unit Price incl. VAT
37
SEAL REAR AXLE
3610071
$31,49 Unit Price incl. VAT
38
DISC BRK 7.00 OD .188 THK
5243678
Not Available
39
O-RING-.859X1.137X.139
5411092
$3,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
