1
Engine displacement
500
2
Year
2001
3
Trim
SPORTSMAN 500 RSE HO - A01CH50AJ
4
Parts Catalog

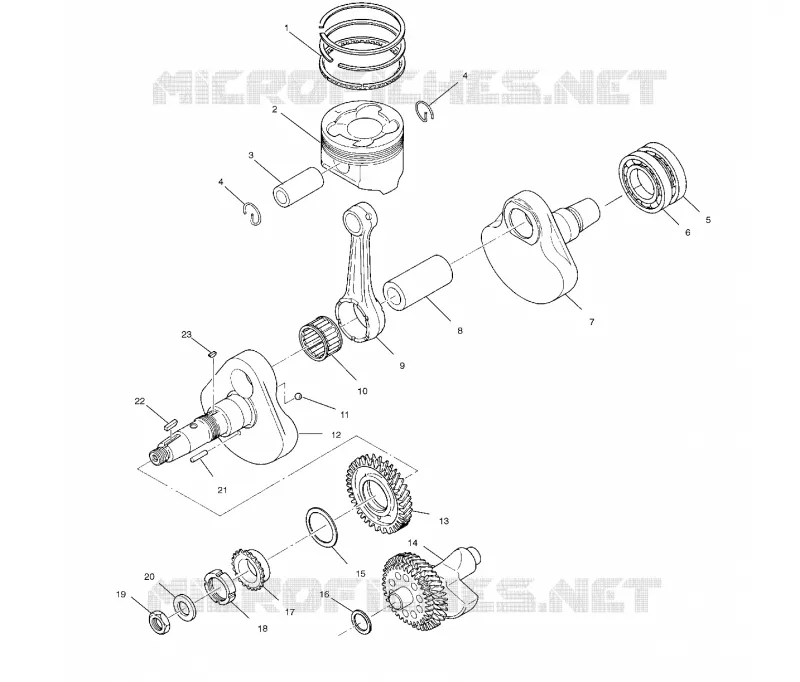

CRANKSHAFT AND PISTON
5
Parts Diagram
Parts Catalog
CYLINDER
by
OIL PUMP
CRANKSHAFT AND PISTON
1
RING SET (STD) * (Std)
3085379
$101,84 Unit Price incl. VAT
1
RING SET (.25MM/.010 OS) (0.25 O/S)
3085380
Not Available
1
RING SET (.50MM/.020 OS) (0.50 O/S)
3085381
$108,14 Unit Price incl. VAT
2
PISTON SET(STD) (Std) (Incl. 1)
3085866
Not Available
2
PISTON SET(.50 0/S) (.020#/0.50mm O/S) (Incl. 1)
3085868
Not Available
2
PISTON SET(.25 O/S) (.010#/0.25mm O/S) (Incl. 1)
3085867
Not Available
3
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
4
CLIP(10)
3085534
Not Available
5
BEARING BALL
3080676
$54,59 Unit Price incl. VAT
6
Bearing Ball
3085815
$74,54 Unit Price incl. VAT
7
Crankshaft 2 [4x4][6x6]
3085812
$1 238,99 Unit Price incl. VAT
8
PIN CRANK
3085341
$204,74 Unit Price incl. VAT
9
Rod Connecting
3085813
Not Available
10
BEARING LARGE END Substituted by 3085343
3085400
$121,79 Unit Price incl. VAT
11
BALL STEEL
3085024
$12,59 Unit Price incl. VAT
12
CRANKSHAFT 1
3085945
Not Available
12
CRANKSHAFT (Incl. 6-12 20)
3085861
$1 637,99 Unit Price incl. VAT
13
BALANCER GEAR 1 *
3085852
Not Available
14
SHAFT BALANCER *
3086837
Not Available
15
SPACER (1.0)
3084893
$36,74 Unit Price incl. VAT
15
SPACER (1.2)
3084894
$36,74 Unit Price incl. VAT
15
SPACER
3240088
$19,94 Unit Price incl. VAT
15
SPACER (0.8)
3084892
$24,14 Unit Price incl. VAT
16
SPACER (1.0)
3084896
$12,59 Unit Price incl. VAT
16
SPACER (0.8)
3084895
$12,59 Unit Price incl. VAT
16
SPACER (1.2)
3084897
$12,59 Unit Price incl. VAT
17
SPROCKET 1
3084882
Not Available
18
NUT SLIT
3085528
$68,24 Unit Price incl. VAT
19
LOCKNUT
3083905
Not Available
20
WASHER Substituted by 3086767
3083904
Not Available
21
PIN DOWEL
3085346
Not Available
22
KEY
3081447
Not Available
23
KEY WOODRUFF
3081543
$26,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
