Engine displacement
500
2
Year
2009
3
Trim
SPORTSMAN 500 EFI TRACTOR - A09MN50ET
4
Parts Catalog
DRIVE TRAIN, FRONT GEARCASE AND MOUNTING
5

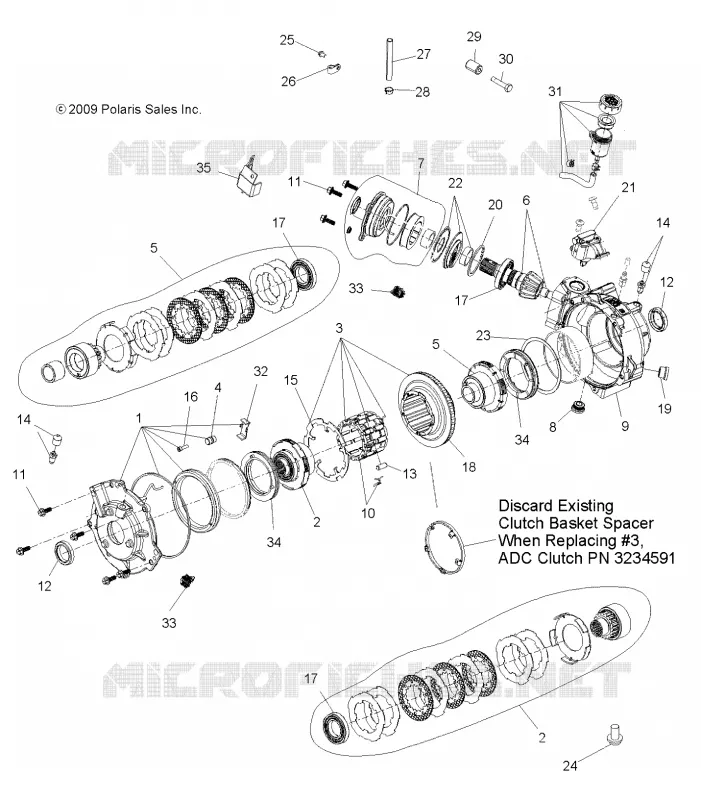

Parts Diagram
Parts Catalog
SEAT
by
DRIVE TRAIN, FRONT DRIVE SHAFT
DRIVE TRAIN, FRONT GEARCASE AND MOUNTING
-
1
2
2
3
4
5
5
6
7
8
9
10
10
11
11
12
12
13
14
14
15
16
17
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
34
35
-
Asm. Gearcase ADC [Incl. 1-23 31]
1332568
$3 008,24 Unit Price incl. VAT
1
Asm. Cover Output ADC [Incl. Cover Coil Thrust Plate Seals Vent]
3234588
Not Available
2
Asm. Hub Output Female ADC [Incl. Bearing Plates Hub]
3234590
3235258
$871,49 Unit Price incl. VAT
3
Asm. Clutch ADC [Incl. Cage Rolls Armature Plate Ring Gear Clips][NOTE: Discard Existing Clutch Basket Spacer When Replacing #3 ADC Clutch PN 3234591]
3234591
$1 627,49 Unit Price incl. VAT
4
Asm. Button Thrust
3234594
Not Available
5
Asm. Hub Output Male ADC [Incl. Bearing Plates Hub]
3234600
3235258
$871,49 Unit Price incl. VAT
6
Asm. Pinion Gear ADC [Incl. Gear Bushing]
3234599
Not Available
7
Asm. Cover Input [Incl. Seals Bearing Coil Grommet]
3234748
$367,49 Unit Price incl. VAT
8
ASM. DRAIN PLUG MAGNETIC
3234412
$83,99 Unit Price incl. VAT
9
Asm. Gearcase ADC [Incl. Seals Fill Plug Vents Bushing]
3234597
$1 296,74 Unit Price incl. VAT
10
Asm. Roll Cage Aluminum NT [Opt]
3235263
$1 112,99 Unit Price incl. VAT
10
Asm. Roll Cage [Incl. 25 26]
3234466
Not Available
11
Kit Bolt ADC [Incl. Hardware]
3234592
$41,99 Unit Price incl. VAT
12
Kit Repair Seal [Incl. Seals O-Rings Square Ring]
3234593
$136,49 Unit Price incl. VAT
13
KIT ROLLER [INCL. COMPLETE SET OF 20 ROLLERS]
3234393
$10,49 Unit Price incl. VAT
14
Asm. Breather Tube
3234431
$68,24 Unit Price incl. VAT
15
PLATE ARMATURE
3234407
$209,99 Unit Price incl. VAT
16
SET SCREW
3234408
$52,49 Unit Price incl. VAT
17
BEARING
3234390
$60,89 Unit Price incl. VAT
18
Clutch Housing ADC
3234596
Not Available
19
PLUG OIL FILL
3234414
3233942
$62,99 Unit Price incl. VAT
20
Ring Retaining Internal [TO 5/15/2022]
3234416
$19,94 Unit Price incl. VAT
21
Pump
3234429
$3 008,24 Unit Price incl. VAT
22
Kit Cam & Armature
3234434
$272,99 Unit Price incl. VAT
23
SPACER-RING GEAR
3234437
$36,74 Unit Price incl. VAT
24
SCR-3/8-16X3/4 HX FLNG-GR5-Y
7517632
$10,49 Unit Price incl. VAT
25
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
$9,44 Unit Price incl. VAT
26
CLAMP-HOSE 3/4 BLACK
7080693
$10,49 Unit Price incl. VAT
27
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
28
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
29
Spacer
5437162
$2,61 Unit Price incl. VAT
30
Screw
7518306
$7,34 Unit Price incl. VAT
31
Reservoir Remote ADC
3234433
$3 008,24 Unit Price incl. VAT
32
Plate Thrust
3234595
Not Available
33
Clip
3234601
$9,44 Unit Price incl. VAT
34
Piston
3234589
$108,14 Unit Price incl. VAT
35
Bracket Cover ADC
3234603
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
