1
Engine displacement
600
2
Year
2014
3
Trim
600 RMK 144 / 155
4
Parts Catalog

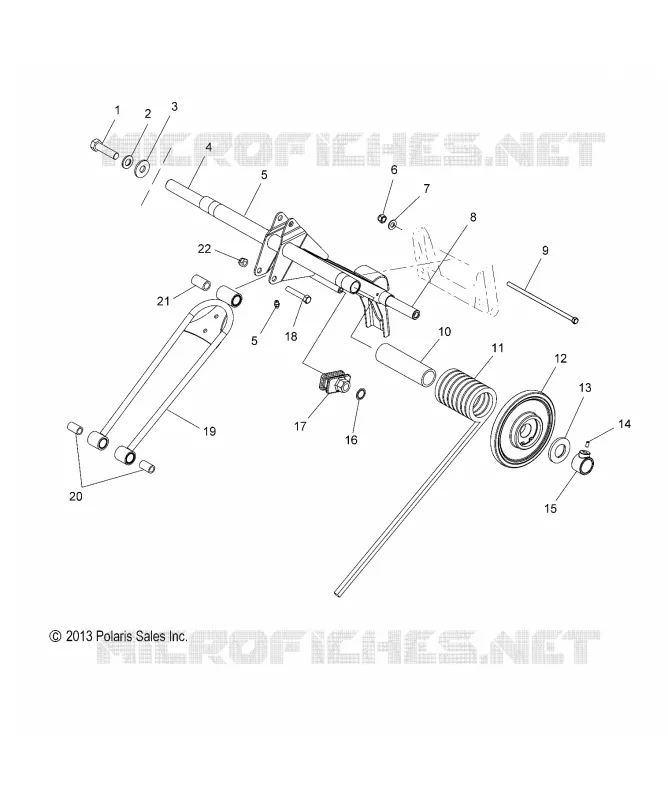

REAR SUSPENSION TORQUE ARM (144 INCH)
5
Parts Diagram
Parts Catalog
SWAY BAR
by
FRONT TORQUE ARM (144 INCH)
REAR SUSPENSION TORQUE ARM (144 INCH)
1
2
3
4
5
5
5
5
6
6
7
8
9
10
11
11
11
11
11
11
12
12
12
13
14
15
16
17
18
19
19
19
20
21
1
1
1
1
1
1
1
1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
9
9
10
11
12
13
14
14
15
15
16
17
18
18
19
20
20
21
21
21
1
SCR-3/8-16X1.50-HX/CP-GR5-P80Y
7518005
$5,76 Unit Price incl. VAT
2
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
3
WASHER FLAT
7555893
$1,56 Unit Price incl. VAT
4
SHAFT
5133987
$104,99 Unit Price incl. VAT
5
ARM REAR TORQUE BLACK
1542960329
Not Available
5
FITTING-LUBRICATION 1/4-28
7080424
$9,44 Unit Price incl. VAT
6
NUT-5/16-24 NYLOK GR8 Y
7547217
$7,34 Unit Price incl. VAT
7
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
8
SHAFT
5333997
$141,74 Unit Price incl. VAT
9
SCREW
7517908
$18,89 Unit Price incl. VAT
10
SLEEVE TORSION SPRING
5434337
$13,64 Unit Price incl. VAT
11
SPRING TORSION .359/77 BLACK RH [STD]
7041630067
7041630-329
$209,99 Unit Price incl. VAT
11
SPRING TORSION .347/77 BLK RH [OPT]
7041628067
$209,99 Unit Price incl. VAT
11
SPRING TORSION .359/77 BLACK LH [STD]
7041629067
7041629-329
$209,99 Unit Price incl. VAT
11
SPRING TORSION .375 SQ./77 RH BLACK
7041943067
7041943-329
$209,99 Unit Price incl. VAT
11
SPRING TORSION .375 SQ./77 LH BLACK
7041942067
7041942-329
$220,49 Unit Price incl. VAT
11
SPRING TORSION .347/77 BLK LH [OPT]
7041627067
$209,99 Unit Price incl. VAT
12
BEARING
3514303
$20,99 Unit Price incl. VAT
12
ASM-WHEEL BOGIE LWT PLAIN 5.62
1590328
$99,74 Unit Price incl. VAT
12
RING RETAINING
7718407
$9,44 Unit Price incl. VAT
13
WASHER SPRING
7571605
$11,54 Unit Price incl. VAT
14
SCR-10-24-3/8 SOC/SET-Y
7518262
$7,34 Unit Price incl. VAT
15
SPACER
5135424
$34,64 Unit Price incl. VAT
16
CLIP PUSH ON
7080394
$4,19 Unit Price incl. VAT
17
ROLLER SPRING ADJUSTABLE SQUARE
5432983
$19,94 Unit Price incl. VAT
18
SCREW
7515415
$2,09 Unit Price incl. VAT
19
BUSHING-.568X.688X1.36 VESPEL
5435722
$9,44 Unit Price incl. VAT
19
ASM. ROD SHOCK OFFSET BLACK
1542170
$178,49 Unit Price incl. VAT
19
BUSHING-.568X.688X.92 VESPEL
5435723
$9,44 Unit Price incl. VAT
20
BUSHING
5135043
$11,54 Unit Price incl. VAT
21
BUSHING
5134601
$27,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
