SUSPENSION, A-ARM AND STRUT MOUNTING FOR SPORTSMAN 400 HO 4X4 - A09LH46AQ/AX/AZ FROM 2009

STEERING POST ASM.

FRONT SUSPENSION STRUT

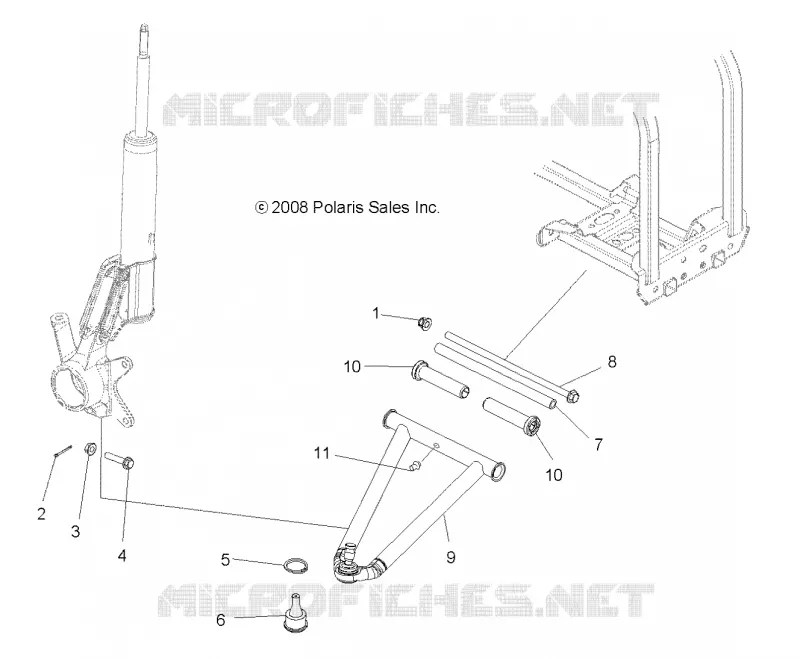

SUSPENSION, A-ARM AND STRUT MOUNTING

1

NUT-M10X1.5 HXFLG NYLON INS

7547313

$2,09 Unit Price incl. VAT

2

PIN COTTER

7661203

$2,09 Unit Price incl. VAT

3

NUT-M8X1.25 HXFLG NYLON INS

7547317

$5,24 Unit Price incl. VAT

4

Screw

7518698

$13,64 Unit Price incl. VAT

5

RING-RETAINER EXTERNAL 1.188

7710533

$4,19 Unit Price incl. VAT

6

Joint Ball

7081263

$73,49 Unit Price incl. VAT

7

Tube Pivot

5134926

$62,99 Unit Price incl. VAT

8

SCREW

7518458

$14,69 Unit Price incl. VAT

9

A-Arm 4x4 Black RH [Built 7/22/08 and After]

1542617067

Not Available

9

A-Arm 4x4 Black LH [Built 7/22/08 and After]

1542616067

Not Available

9

A-Arm 4x4 Black LH

1542327067

Not Available

9

A-Arm 4x4 Black RH

1542328067

Not Available

10

BUSHING-A-ARM LONG 102.36MM

5436973

$9,44 Unit Price incl. VAT

11

FITTING LUBRICATION

7080433

$2,09 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
