1
Engine displacement
500
2
Year
2009
3
Trim
SCRAMBLER 500 4X4 INTL - A09BG50FA
4
Parts Catalog
DRIVE TRAIN, GEAR SELECTOR
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, FRONT PROP SHAFT
by
DRIVE TRAIN, MAIN GEARCASE

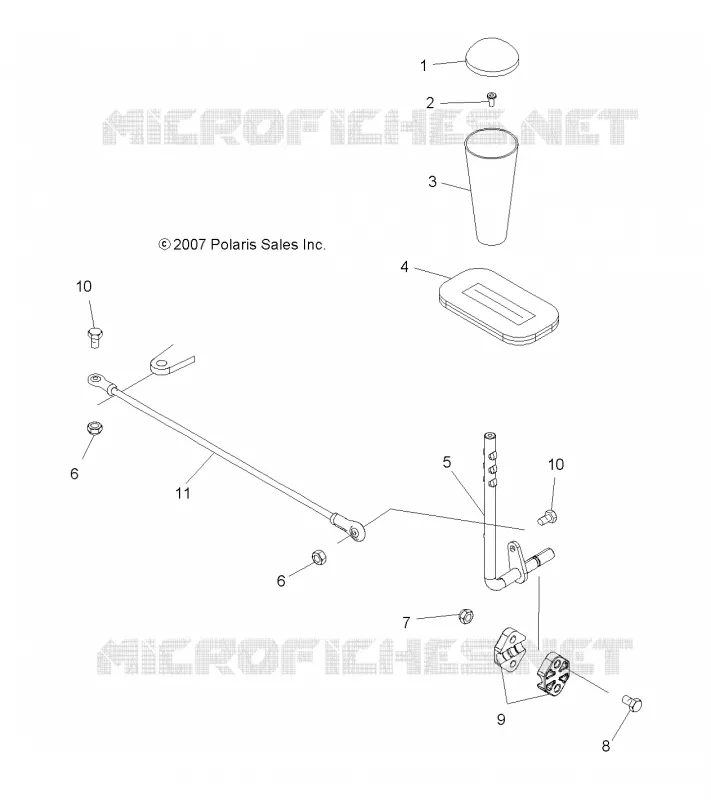

DRIVE TRAIN, GEAR SELECTOR
1
2
3
4
5
6
6
7
8
9
10
10
11
1
Cover Shift Knob
5411006
3233198
$68,24 Unit Price incl. VAT
2
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
$9,44 Unit Price incl. VAT
3
KNOB GEAR SILECTOR SHIFT
5411007
3233198
$68,24 Unit Price incl. VAT
4
GROMMET HR SHIFTER
5411008
Not Available
5
Selector Gear Matte# Black
1012797458
$58,16 Unit Price incl. VAT
6
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
7
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
8
BOLT(10) Substituted by 7515352
7515306
Not Available
9
MOUNT GEAR SELECTOR
5435042
$12,59 Unit Price incl. VAT
10
SCREW
7515175
$7,34 Unit Price incl. VAT
11
Linkage Shift [If built after 12/29/03]
1821489
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
