1
Engine displacement
0
2
Year
1990
3
Trim
BIG BOSS 4X6 - W908627
4
Parts Catalog
Control Assembly, R.H. Updated 5/90 (4917741774015A)
5
Parts Diagram
Parts Catalog
Control Assembly, L.H. (4917741774014A)
by
SHIFT LINKAGE ASSEMBLY UPDATED 5/90 (4917741774016A)

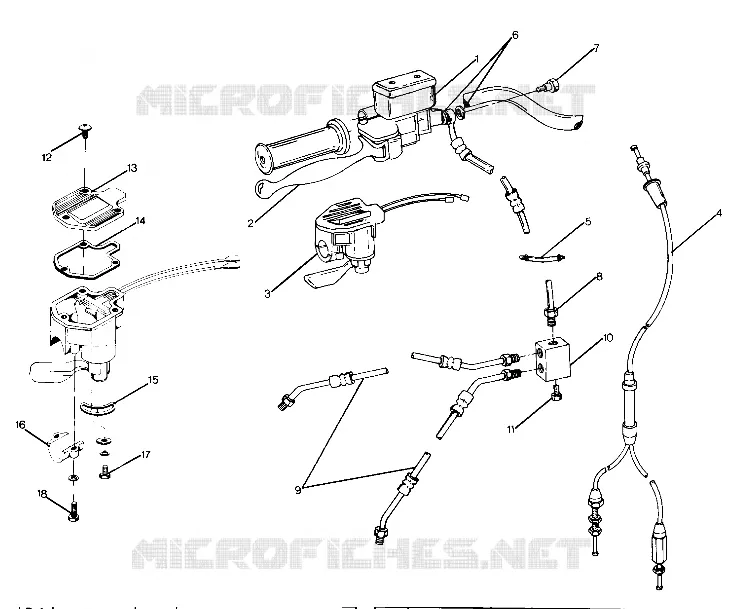

Control Assembly, R.H. Updated 5/90 (4917741774015A)
16
17
18
1
MASTER CYL.ASM RH
1930649
Not Available
2
LEVER RH BRAKE
5630362
Not Available
3
THROTTLE CONTROL ASM. Substituted by 2010091 (Incl. 39-45)
2010072
Not Available
4
CABLE THROTTLE CONTROL Substituted by 7080531
7080375
Not Available
5
POLYCLAMP(10)
7080381
Not Available
6
WASHER BANJO BOLT Substituted by 5410988
5410469
$9,44 Unit Price incl. VAT
7
Bolt Banjo
1930674
Not Available
8
LINE HYD.BRAKE
1930654
Not Available
9
LINE BRAKE W/FITTINGS Substituted by 1930743
1930653
Not Available
10
BLOCK HYD.JUNCTION Substituted by 1910126
1930655
Not Available
11
BOLT(10)
7512238
Not Available
12
SCREW BUTTON HEAD
2010079
Not Available
13
CAP
2010080
Not Available
14
PACKING THROTTLE
2010081
Not Available
15
PLATE
2010075
Not Available
16
HOLDER
2010078
$23,09 Unit Price incl. VAT
17
BOLT HEX.
2010076
Not Available
18
SCREW SEMS(10)
2010077
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
