1
Engine displacement
500
2
Year
1995
3
Trim
500 EFI SKS PDLTRK - 0952974
4
Parts Catalog

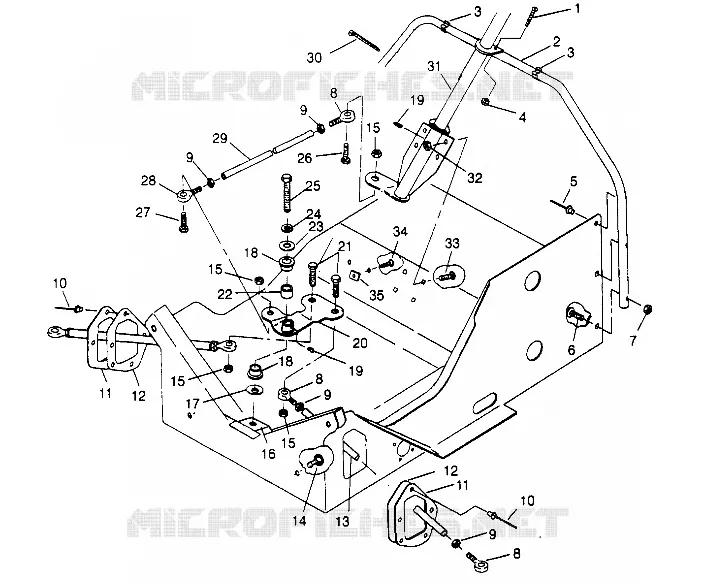

STEERING ASSEMBLY 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0952974, (4929052905B006)
5
Parts Diagram
Parts Catalog
STEERING
by
IGNITION WIRE HARNESS 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0 (4929052905B007)
STEERING ASSEMBLY 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0952974, (4929052905B006)
1
BOLT (10) Substituted by 7517377
7512239
7517377
$9,44 Unit Price incl. VAT
2
HOOP STRG BLK.
1011929067
Not Available
3
CLIP(10)
7080278
$4,71 Unit Price incl. VAT
4
NUT(10)
7542124
7542122
$2,09 Unit Price incl. VAT
5
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
6
BOLT-CARRIAGE(10)
7512275
$7,34 Unit Price incl. VAT
7
NUT FLEXLOC
7542103
$10,49 Unit Price incl. VAT
8
ROD END RH Substituted by 7060167
7060152
7060167
$99,74 Unit Price incl. VAT
8
ROD END LH Substituted by 7060166
7060151
7060166
$99,74 Unit Price incl. VAT
9
NUT-3/8-24-(L.H.)-Y
7542424
$1,56 Unit Price incl. VAT
9
NUT-3/8-24-2B-Z
7542401
$4,19 Unit Price incl. VAT
10
RIVET-POP 5/32(.251-.375)-ST-B
7621323
$2,09 Unit Price incl. VAT
11
PLATE BOOT SEAL
5222942067
$19,94 Unit Price incl. VAT
12
BOOT TIE ROD
5410761
$26,24 Unit Price incl. VAT
13
ROD TIE BLACK
5332713067
Not Available
13
TIEROD
5020636067
Not Available
14
CLIP ROSEBUD
4020139
$9,44 Unit Price incl. VAT
15
Nut
7542403
Not Available
16
BLOCK CTR.STRG.
5130889
Not Available
17
WASHER-WAVE 7/8X1X.010
7555735
$7,34 Unit Price incl. VAT
18
BUSHING
3563907
$7,34 Unit Price incl. VAT
19
FITTING LUB/VEN(10)
7080561
$9,44 Unit Price incl. VAT
20
STRG.ASM CTR. (Incl. 20 21)
1822212
Not Available
21
BOLT(10)
7515528
$15,74 Unit Price incl. VAT
22
BUSHING
5010322
Not Available
23
WASHER
7555721
$2,09 Unit Price incl. VAT
24
WASHER SPLIT LOCK
7553201
$7,34 Unit Price incl. VAT
25
BOLT(10)
7512681
Not Available
26
BOLT(10) Substituted by 7515492
7512410
7515540
$9,44 Unit Price incl. VAT
27
SCR-HH-3/8-24X5.5 GR5 ZY3
7512404
$7,34 Unit Price incl. VAT
28
ROD END LH Substituted by 7060164
7060124
7060164
$99,74 Unit Price incl. VAT
29
ROD DRAG LINK
5333144
Not Available
30
STRAP BLK
7080272
Not Available
31
POST STRG BLK.
1823157067
Not Available
32
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
33
BOLT(10) Substituted by 7512377
7512394
7512377
$9,44 Unit Price incl. VAT
34
BOLT-CARRIAGE(10)
7512263
$7,34 Unit Price incl. VAT
35
NUT SPEED
7670021
$10,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
