1
Engine displacement
500
2
Year
2001
3
Trim
500-sks
4
Parts Catalog
FRONT SUSPENSION
5

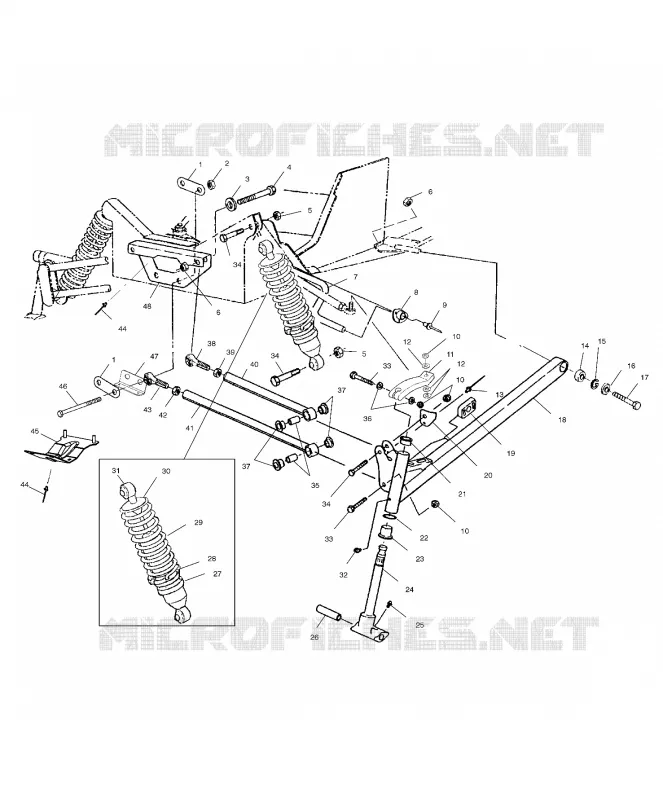

Parts Diagram
Parts Catalog
DECALS
by
CHAINCASE
FRONT SUSPENSION
1
1
2
3
4
5
5
6
6
7
8
9
10
10
10
11
11
11
11
12
12
13
14
15
16
17
18
18
18
18
19
20
20
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
34
34
35
36
37
37
38
39
40
41
42
43
44
44
45
46
47
48
1
STRAP-SPACER BOTTOM
5211345
$19,94 Unit Price incl. VAT
2
NUT FLEX (10)
7542703
Not Available
3
WASHER THRUST(10)
7558702
$3,14 Unit Price incl. VAT
4
BOLT(10)
7512551
Not Available
5
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
6
NUT LOCK (10)
7542503
$18,89 Unit Price incl. VAT
7
BAR-TORSION 5/8 BLK
5243008067
Not Available
8
BUSHING SWAY BAR
5432038
Not Available
9
RIVET (50)
7621477
$2,09 Unit Price incl. VAT
10
Nut
7542403
Not Available
11
ARM RH STRG ALUM.
5131740
Not Available
11
ARM LH STRG ALUM.
5131739
Not Available
12
WASHER-.390X.940X.030-FL-Y
7555797
$7,34 Unit Price incl. VAT
13
RIVET(50) Substituted by 7661130
7661643
7661130
$2,09 Unit Price incl. VAT
14
BEARING-SPHERICAL 7/16 PLASTIC
7061042
$54,59 Unit Price incl. VAT
15
RING RETAINING(10)
7710437
$5,76 Unit Price incl. VAT
16
WASHER(10)
7555801
$7,34 Unit Price incl. VAT
17
BOLT(10)
7512579
Not Available
18
TRAILING ARM RH BLK SVC ASM. (Incl. 15)
1820714067
Not Available
18
TRAILING ARM LH BLK SVC ASM. (Incl. 15)
1820713067
Not Available
19
SLIDE SWAYBAR 5/8
5432561
$52,49 Unit Price incl. VAT
20
STOP STRG LH.
5242017067
Not Available
20
STOP STRG RH.
5242018067
Not Available
21
BUSHING FLANGE
3573909
$4,19 Unit Price incl. VAT
22
BUSHING
7556509
$3,14 Unit Price incl. VAT
23
BUSHING FLANGED
3574208
$6,29 Unit Price incl. VAT
24
SPINDLE SHAFT HARD.
6230099067
Not Available
25
FITTING LUB W/BALL
7080306
$5,76 Unit Price incl. VAT
26
BUSHING [BEA]
5010158
$27,29 Unit Price incl. VAT
27
RETAINER SPRING BODY THD. [1 PER SHOCK]
1500063
$83,99 Unit Price incl. VAT
28
RING SPRING PRELOAD ADJ. [1 PER SHOCK]
5431734
$104,99 Unit Price incl. VAT
29
SPRING COMP. IFS 100# BLK
7041551067
$115,49 Unit Price incl. VAT
30
RETAINER SPRING SLOTTED CAST
5630580
5020618
$36,74 Unit Price incl. VAT
31
SHOCK-GAS IFS SELECT
7041799
Not Available
32
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
33
SCR-3/8-24X2 HX/CP GR5-Y-SP
7517583
$7,34 Unit Price incl. VAT
34
SCREW
7515415
$2,09 Unit Price incl. VAT
35
BUSHING
5010127
$12,59 Unit Price incl. VAT
36
Washer .105
7555832
$4,19 Unit Price incl. VAT
37
BUSHING PIVOT RADIUS ROD OUTER
5431486
$6,29 Unit Price incl. VAT
38
ROD END 7/16 LINED Substituted by 7061049
7061010
Not Available
39
NUT JAM(10)
7542520
$4,19 Unit Price incl. VAT
40
RADIUS ROD UPPER BLK
1822588067
Not Available
41
RADIUS ROD LOWER BLK
1822559067
Not Available
42
NUT-1/2-20 HX JM-Y
7542711
$4,19 Unit Price incl. VAT
43
RODEND 1/2 W/LINER 1.05 WIDE Substituted by 7061052
7061027
7061052
$99,74 Unit Price incl. VAT
44
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
45
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
46
BOLT(10)
7512684
Not Available
47
BRKT. RADIUS ROD BOTTOM
5242578
$68,24 Unit Price incl. VAT
48
BRACE BULKHEAD FRONT BLK
1012575067
$38,42 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
