1
Engine displacement
0
2
Year
1995
3
Trim
EURO STORM - E950782
4
Parts Catalog

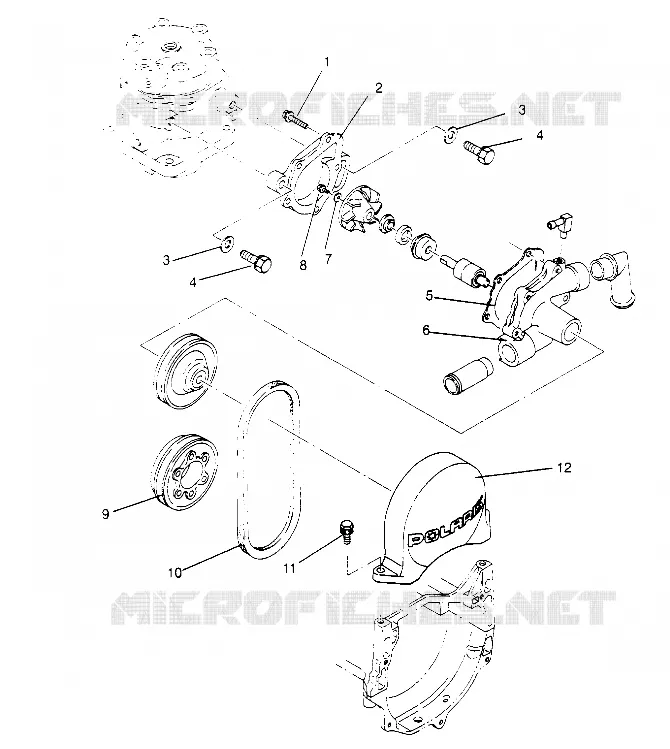

WATER PUMP STORM 0950782, STORM SKS 0950582, EURO STORM E950782, EURO STOR (4929012901C012)
5
Parts Diagram
Parts Catalog
CRANKCASE ASSEMBLY STORM 0950782, STORM SKS 0950582, EURO STORM E950782, E (4929012901C011)
by
PISTON CRANKSHAFT STORM 0950782, STORM SKS 0950582, EURO STORM E950782 (4929012901C013)
WATER PUMP STORM 0950782, STORM SKS 0950582, EURO STORM E950782, EURO STOR (4929012901C012)
1
2
3
3
4
4
5
6
7
8
9
10
11
12
1
2
3
3
4
4
5
6
7
8
9
10
11
12
1
2
3
3
4
4
5
6
7
8
9
10
11
12
1
2
3
3
4
4
5
6
7
8
9
10
11
12
1
2
3
3
4
4
5
6
7
8
9
10
11
12
1
SCREW&WASHER ASM.(10)
3084221
$4,19 Unit Price incl. VAT
2
CASING 2 PUMP
3084666
Not Available
3
WASHER
3082505
Not Available
4
BOLT&WASHER ASM.
3083370
Not Available
5
GASKET WATER PUMP
3084551
Not Available
6
PUMP WATER (Incl. 1 2 5-8)
3084659
Not Available
7
WASHER
3084366
Not Available
8
BOLT&WASHER ASM.(10)
3084552
Not Available
9
PULLEY DRIVE
3084554
Not Available
10
BELT WATER PUMP
3084555
Not Available
11
BOLT&WASHER ASM.
3083862
$2,09 Unit Price incl. VAT
12
COVER WATER PUMP
3083403
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
