DRIVE TRAIN, MAIN GEARCASE INTERNALS FOR SPORTSMAN 400 HO 4X4 - A09LH46AQ/AX/AZ FROM 2009

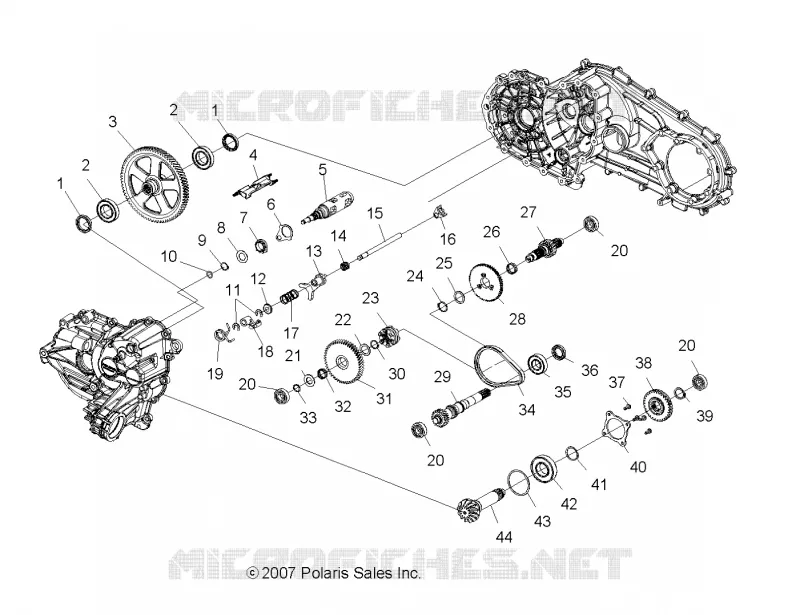

DRIVE TRAIN, MAIN GEARCASE INTERNALS

-

Asm. Transmission 4x4 [Incl. All]

1332698

$2 101,04 Unit Price incl. VAT

1

SEAL-35x47x8

3234307

$31,49 Unit Price incl. VAT

2

BEARING BALL 6007 C3 35 X 62 X 14

3233265

$68,24 Unit Price incl. VAT

3

Subasm. Gear 77T [Incl. 2]

1332915

$316,04 Unit Price incl. VAT

4

Trough Oil

3234254

$17,21 Unit Price incl. VAT

5

Drum Shift

3234341

Not Available

6

Spacer

3234337

Not Available

7

Star Detent

3234250

$17,21 Unit Price incl. VAT

8

Washer Thrust

3234314

$18,68 Unit Price incl. VAT

9

Ring Retaining

3234335

$18,68 Unit Price incl. VAT

10

O-RING

3234302

$13,64 Unit Price incl. VAT

11

RING RETAINING BASIC EXTERNAL

3233834

$19,94 Unit Price incl. VAT

12

WASHER CUP

3234091

$17,84 Unit Price incl. VAT

13

Fork Shift

3234328

$59,42 Unit Price incl. VAT

14

SPRING COMPRESSION 0.46 I.D. X 0.73

3234089

$52,49 Unit Price incl. VAT

15

Rail Shift Shaft

3234606

$33,06 Unit Price incl. VAT

16

COLLAR SHIFT

3234073

$57,74 Unit Price incl. VAT

17

SPRING COMPRESSION .92 O.D. X 2.000

3234078

$47,24 Unit Price incl. VAT

18

Pawl Detent

3234251

Not Available

19

Spring Torsion

3234607

$6,71 Unit Price incl. VAT

20

Bearing

3234605

Not Available

21

Washer Thrust

3234319

Not Available

22

WASHER 1.250 X 0.876 X 0.05

3233855

$19,94 Unit Price incl. VAT

23

DOG ENGAGEMENT 6 FACE

3234258

$178,49 Unit Price incl. VAT

24

RING RETAINING BASIC EXT 0.938

3233306

$9,44 Unit Price incl. VAT

25

WASHER THRUST 1.300 X 0.995 X 0.065

3234248

$17,84 Unit Price incl. VAT

26

BEARING NEEDLE 25 X 29 X 10

3233103

$54,59 Unit Price incl. VAT

27

Shaft Reverse 15T

3234323

Not Available

28

Sprocket 52T

3234332

$225,74 Unit Price incl. VAT

29

Shaft Input 17T

3234357

Not Available

30

RING RETAINING BASIC EXTERNAL DIA 0.84

3234336

$10,49 Unit Price incl. VAT

31

Gear 50T

3234320

Not Available

32

BEARING NEEDLE

3233718

$60,89 Unit Price incl. VAT

33

RING RETAINING EXTERNAL SHR-66

3234318

$5,76 Unit Price incl. VAT

34

Chain

3234608

$54,59 Unit Price incl. VAT

35

Bearing

3234419

Not Available

36

Seal Triple Lip

3234322

$57,74 Unit Price incl. VAT

37

SCREW 6-LOBE PAN HD M6 X 1 X 16

3234309

$13,64 Unit Price incl. VAT

38

Gear 31T [4x4]

3234334

Not Available

39

RING RETAINING BASIC EXTERNA

3234327

$13,64 Unit Price incl. VAT

40

COVER BEARING CENTER DRIVE

3234063

$62,99 Unit Price incl. VAT

41

Ring Retaining [4x4]

3234310

$6,81 Unit Price incl. VAT

42

BEARING BALL 6207 C3 35MMX72MMX17MM

3234065

$80,84 Unit Price incl. VAT

43

Shim [4x4]

3234326

Not Available

44

Pinion 13T [4x4]

3234325

$205,26 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
