1
Engine displacement
400
2
Year
2004
3
Trim
A04CH42AQ SPORTSMAN 400 - A04CH42AQ/AR/AS/AT/AV
4
Parts Catalog

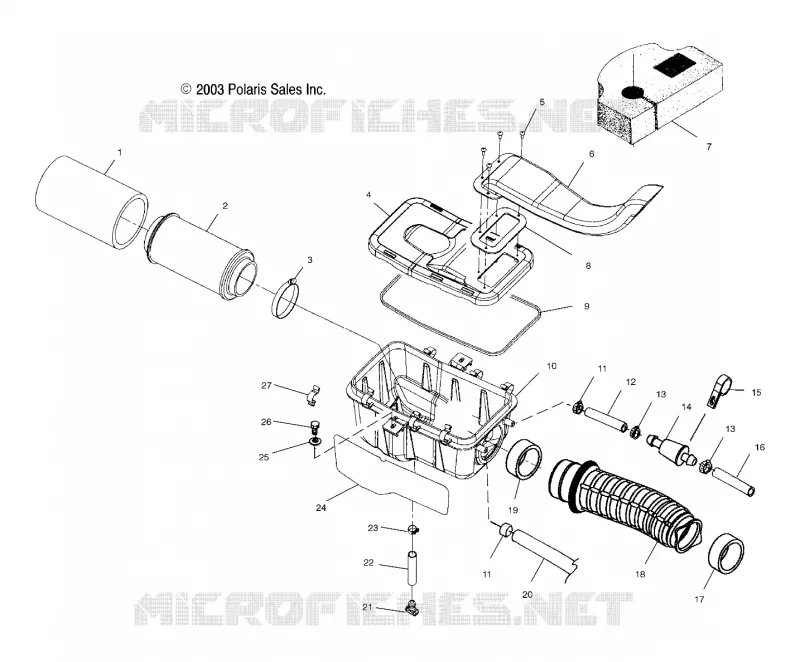

AIR BOX
5
Parts Diagram
Parts Catalog
DECALS
by
CONTROLS
AIR BOX
1
2
3
4
5
6
7
8
9
10
11
11
12
13
13
14
15
16
17
18
19
20
21
21
22
23
24
25
26
27
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Filter Pre-Cleaner Sleeve
5811633
$19,20 Unit Price incl. VAT
2
FILTER AIR INTAKE
7080595
7083107
$51,23 Unit Price incl. VAT
3
CLAMP BAND NARROW
7080413
$5,76 Unit Price incl. VAT
4
Cover Air Box
5432868
$104,99 Unit Price incl. VAT
5
SCREW(10)
7517317
$6,29 Unit Price incl. VAT
6
DUCT AIR INLET
5433293
$104,99 Unit Price incl. VAT
7
SEAL FOAM
5811626
$57,74 Unit Price incl. VAT
8
GASKET INTAKE
5411422
$10,49 Unit Price incl. VAT
9
SEAL AIRBOX COVER
5811482
5813949
$52,49 Unit Price incl. VAT
10
Box Air
5433387
$257,24 Unit Price incl. VAT
11
Clamp Hose Spring .69 Inch
7080699
$3,14 Unit Price incl. VAT
12
LINE BREATHER 3/8 ID.
8450073600
$136,49 Unit Price incl. VAT
13
CLAMP HOSE(10)
7080544
Not Available
14
FILTER BREATHER IN LINE
2530029
$11,54 Unit Price incl. VAT
15
P-Clamp
7080913
$10,49 Unit Price incl. VAT
16
HOSE BRTHR FORMED 500CC
5411858
Not Available
17
Clamp Hose Spring .75 Inch
7080694
$10,49 Unit Price incl. VAT
18
Boot Carburetor
5412283
Not Available
19
SLEEVE CARBURETOR INNER
5433847
$27,29 Unit Price incl. VAT
20
Line Breather
5411668
Not Available
21
Plug Trap
5435299
$12,59 Unit Price incl. VAT
21
Plug Trap
5432377
Not Available
22
FUEL LINE
8450059150
$115,49 Unit Price incl. VAT
23
CLAMP HOSE (10)
7080650
$7,34 Unit Price incl. VAT
24
Foil Air Box
5811650
Not Available
25
WASHER-FL .281X.750X.062-Y
7555859
$2,09 Unit Price incl. VAT
26
SCR-1/4-20X1 HX/WH/TAP/R GR5-Y
7515179
$4,19 Unit Price incl. VAT
27
CLIP-AIR BOX
5242044
$17,84 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
