1
Engine displacement
500
2
Year
2010
3
Trim
500 WIDETRAK LX
4
Parts Catalog

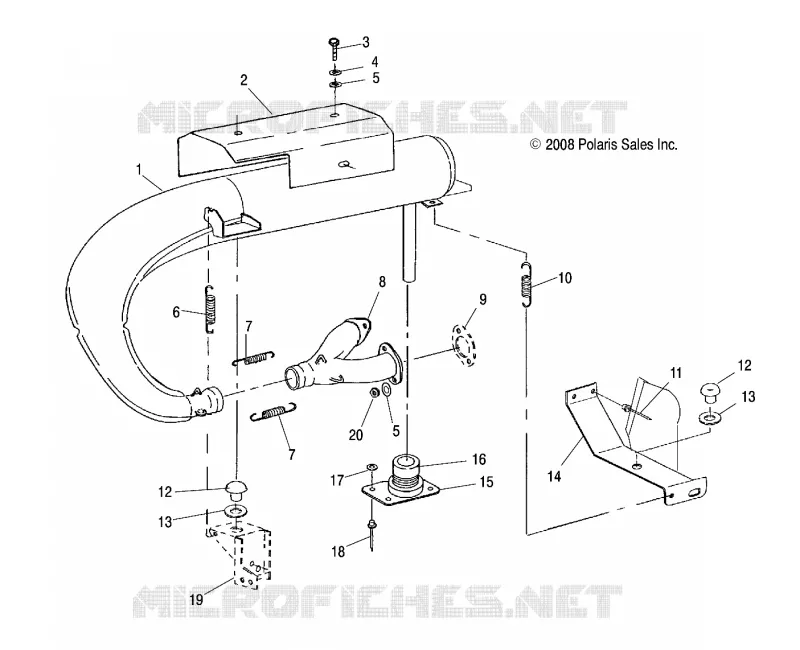

EXHAUST
5
Parts Diagram
Parts Catalog
CYLINDER
by
RECOIL STARTER
EXHAUST
1
2
3
4
5
5
6
7
7
8
19
10
11
12
12
13
13
14
15
16
17
18
19
20
1
MUFFLER BLK
1260932029
$614,24 Unit Price incl. VAT
2
SHIELD-MUFFLER W/T
5243289
Not Available
3
BOLT(10)
7515354
$7,34 Unit Price incl. VAT
4
WASHER FLAT .344x.875x.063
7555734
$1,56 Unit Price incl. VAT
5
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
6
SPRING-EXHAUST
7042029
$10,49 Unit Price incl. VAT
7
Spring Exhaust
7042332
7043726
$9,44 Unit Price incl. VAT
8
MANIFOLD
1260501029
$149,09 Unit Price incl. VAT
9
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
10
SPRING-EXHAUST
7041687
$12,59 Unit Price incl. VAT
11
RIVET(50)
7621452
$2,09 Unit Price incl. VAT
12
DAMPENER VIBRATION
5411576
$13,64 Unit Price incl. VAT
13
WASHER
7556004
$13,64 Unit Price incl. VAT
14
Bracket Muffler Rear
1015980329
$62,04 Unit Price incl. VAT
15
HAT EXH SNOW DEFLECTOR
5432465
$19,94 Unit Price incl. VAT
16
BOOT EXHAUST
5410502
$47,24 Unit Price incl. VAT
17
BURR-RIVET
7555904
$1,56 Unit Price incl. VAT
18
RIVET
7621467
$2,09 Unit Price incl. VAT
19
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
20
Nut
7547210
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
