1
Engine displacement
650
2
Year
2023
3
Trim
650 SWITCHBACK SP 146
4
Parts Catalog

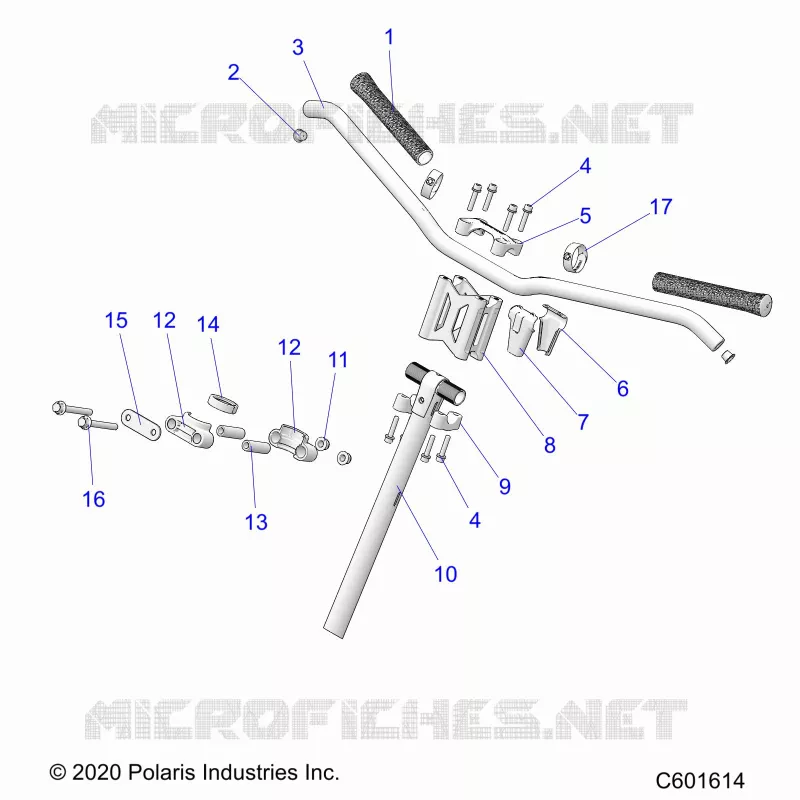

UPPER STEERING & HANDLEBAR ASM.
5
Parts Diagram
Parts Catalog
SHOCK, IFS (7045984)
by
FUEL SYSTEM, FUEL TANK ASM.
UPPER STEERING & HANDLEBAR ASM.
1
2
3
4
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
1
2
3
1
GRIP-HANDLEBAR
5456513
$26,24 Unit Price incl. VAT
2
PLUG-OVERFLOW 8X (RED)
5431096
$3,66 Unit Price incl. VAT
3
BAR-HANDLE BLK
5336886067
$167,99 Unit Price incl. VAT
4
SCR-SH-M6X1X30 8.8 SEMS ZTB
7521299
$6,29 Unit Price incl. VAT
5
CLAMP-HANDLE BAR UPPER
5634372
$20,99 Unit Price incl. VAT
6
CLAMP-HANDLEBAR WIRE FRONT
5457528
$10,49 Unit Price incl. VAT
7
CLAMP-HANDLEBAR WIRE BACK
5457529
$10,49 Unit Price incl. VAT
8
BLOCK-HB RISER 85MM
5143421
$136,49 Unit Price incl. VAT
9
CLAMP-HANDLE BAR LOWER
5634373
$15,74 Unit Price incl. VAT
10
WELD-STEERING POST ECOAT
1825068329
$257,24 Unit Price incl. VAT
11
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
12
BUSHING STEERING POST
5450881
$13,64 Unit Price incl. VAT
13
SPACER BUSHING LONG
5139006
$7,34 Unit Price incl. VAT
14
SEAL STEERING BUSHING
5414938
$10,49 Unit Price incl. VAT
15
STRAP STEERING
5258308
$6,29 Unit Price incl. VAT
16
SCR-HXFL-M8X1.25X65 8.8 ZOD
7519971
7521332-65
$3,14 Unit Price incl. VAT
17
CLAMP-RUBBER 84MM W/STAR
5417510
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
