1
Engine displacement
330
2
Year
2003
3
Trim
MAGNUM 330 4X4 - A03CD32AA/AB/AC/FB
4
Parts Catalog

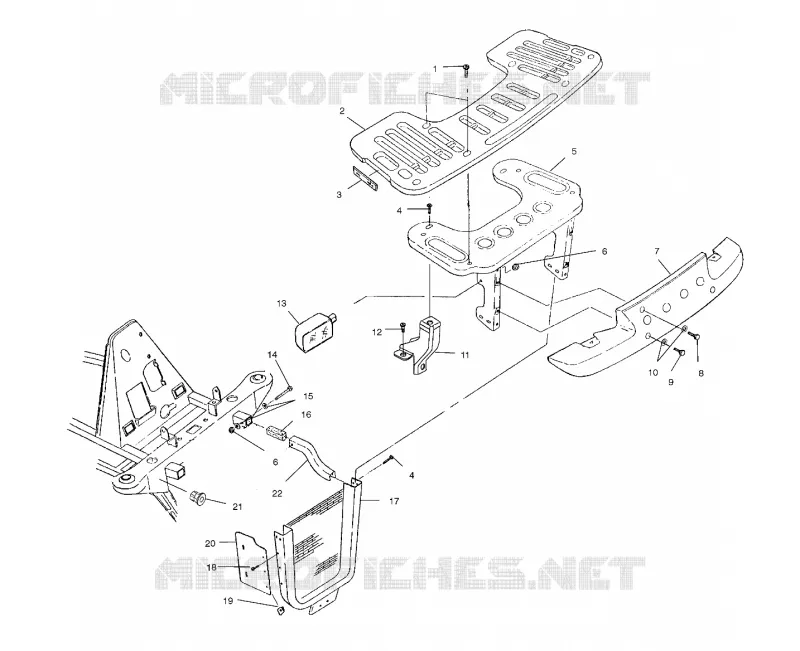

FRONT RACK BUMPER MOUNTING
5
Parts Diagram
Parts Catalog
CABIN
by
OIL COOLING
FRONT RACK BUMPER MOUNTING
1
2
3
4
4
5
6
6
7
8
9
10
11
11
12
13
13
13
14
15
16
17
18
19
20
20
21
22
22
1
2
3
4
4
5
1
SCR-1/4-20X1.00 TR/TX-M
7517685
$3,14 Unit Price incl. VAT
2
RACK FRONT BLK (Incl. Ref. 3 and Decal)
2670180070
Not Available
3
Decal Reflector Amber
7079926
Not Available
4
SCR-5/16-18X3/4 TFM HW T/R-Y
7515399
$2,09 Unit Price incl. VAT
5
Support Front Rack
1014023067
Not Available
6
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
7
Bumper
5432155070
$262,49 Unit Price incl. VAT
8
SCREW
7515391
$9,44 Unit Price incl. VAT
9
Screw
7515390
Not Available
10
WASHER
7555954
$9,44 Unit Price incl. VAT
11
Support Front Rack LH
1013744067
Not Available
11
Support Front Rack RH
1013746067
$141,74 Unit Price incl. VAT
12
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
$2,09 Unit Price incl. VAT
13
H/L ASM RH 30/30W
2431012
Not Available
13
BULB H/L 30/30 W.
4030061
Not Available
13
H/L ASM LH 30/30W
2431011
Not Available
14
SCR-HH-5/16-18X1.75 GR5 ZY3
7512329
$7,34 Unit Price incl. VAT
15
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
16
Plug Frame
5810467
Not Available
17
Guard Brush
1013772067
Not Available
18
Screw
7512097
$7,34 Unit Price incl. VAT
19
NUT U-TYPE
7670094
$10,49 Unit Price incl. VAT
20
Shield Side Radiator RH
5433924
$62,99 Unit Price incl. VAT
20
Shield Side Radiator LH
5433923
$62,99 Unit Price incl. VAT
21
NUTSERT-1/4-20 HEX .165 GRIP
7547069
$7,34 Unit Price incl. VAT
22
Extension Frame RH
5244730067
Not Available
22
Extension Frame LH
5244729067
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
