1
Engine displacement
900
2
Year
2016
3
Trim
RANGER XP 900 ALL OPTIONS
4
Parts Catalog

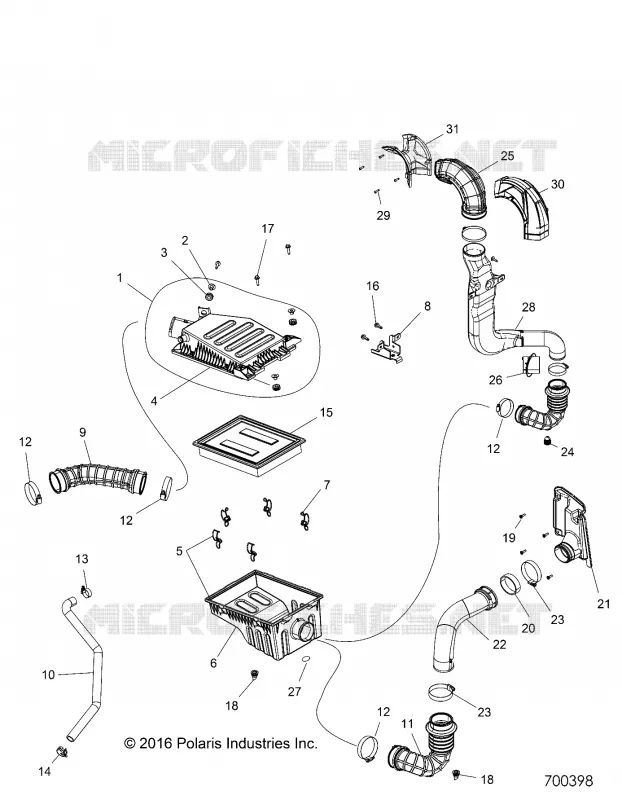

ENGINE, AIR INTAKE SYSTEM
5
Parts Diagram
Parts Catalog
ELECTRICAL, HEADLIGHT AND TAILLIGHT
by
ENGINE, BREATHER
ENGINE, AIR INTAKE SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
12
12
12
13
14
15
15
16
17
18
19
20
21
22
23
23
24
25
26
27
28
29
30
31
1
ASM. AIRBOX LID [INCL. 1-4]
1240625
$157,49 Unit Price incl. VAT
2
BSHG-FLG 21X10X11
5137652
$5,24 Unit Price incl. VAT
3
GROMMET BASE TOP
5414160
$7,34 Unit Price incl. VAT
4
LID AIRBOX
5439197
1240625
$157,49 Unit Price incl. VAT
5
ASM. AIRBOX MAIN [INCL. 6 7]
1240787
$178,49 Unit Price incl. VAT
6
BASE AIRBOX
5450722
$178,49 Unit Price incl. VAT
7
CLIP-AIRBOX
7081707
$9,44 Unit Price incl. VAT
8
BRACKET AIR BOX MOUNT
5255273
$62,99 Unit Price incl. VAT
9
HOSE INTAKE ENGINE
5415594
$83,99 Unit Price incl. VAT
10
HOSE VENT ENGINE
5414331
$89,24 Unit Price incl. VAT
11
HOSE INTAKE AIRBOX
5414543
$141,74 Unit Price incl. VAT
12
CLAMP HOSE 2.75# SS
7080446
$20,99 Unit Price incl. VAT
13
CLAMP HOSE WORM GEAR 1.25
7080614
$13,64 Unit Price incl. VAT
14
SPRINGBAND-CLAMP 27/12 GREEN
7080841
$13,64 Unit Price incl. VAT
15
FILTER-AIR
7082241
7081706
$57,63 Unit Price incl. VAT
15
FILTER AIR BOX MAIN
7081706
$57,63 Unit Price incl. VAT
16
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
17
SCR-TFHFL-M6X1.0X25 ZOD
7519342
$3,14 Unit Price incl. VAT
18
PLUG-DRAIN
5414472
$10,49 Unit Price incl. VAT
19
SCREW-10X5/8-HI/LO PN-T25 TRX-M
7518238
$7,34 Unit Price incl. VAT
20
HOSE INTAKE BOOT
5414542
$13,64 Unit Price incl. VAT
21
FENDER INTAKE REAR BLACK
5439201070
$125,99 Unit Price incl. VAT
22
DUCT INTAKE AIR
5439947
$83,99 Unit Price incl. VAT
23
CLAMP HOSE 3.25 SS
7080439
$17,84 Unit Price incl. VAT
24
PLUG DRAIN HC
5139797
$17,84 Unit Price incl. VAT
25
HOSE INLET HC
5415215
$104,99 Unit Price incl. VAT
26
SEAL-ENGINE INTAKE MUDDER [M87AL]
5415625
$20,99 Unit Price incl. VAT
27
PLUG-AIR BOX MUDDER
5415705
$5,76 Unit Price incl. VAT
28
DUCT-INTAKE ENGINE MUDDER [M87AL]
5452495
Not Available
29
SCREW-TXPH-#10x1.0 ZPB HI/LO
7520164
$3,14 Unit Price incl. VAT
30
COVER-PLAST INTAKE HOSE TOP OM
5451616593
$99,74 Unit Price incl. VAT
31
COVER PLASTIC INTAKE HOSE BOTTOM BLACK
5451617070
$83,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
