1
Engine displacement
700
2
Year
1997
3
Trim
700 SKS - 0970566
4
Parts Catalog

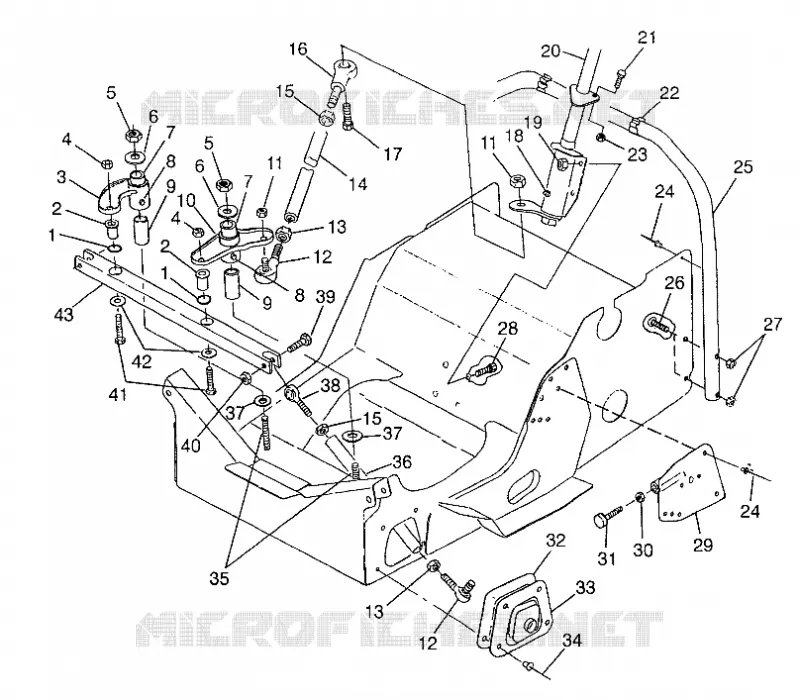

STEERING 700 RMK 0970966, 700 SKS 0970566 AND EUROPEAN 700 SKS E970566 (4938573857B005)
5
Parts Diagram
Parts Catalog
STEERING
by
COOLING SYSTEM 700 RMK 0970966, 700 SKS 0970566, AND EUROPEAN 700 SKS E9705 (4938573857B006)
STEERING 700 RMK 0970966, 700 SKS 0970566 AND EUROPEAN 700 SKS E970566 (4938573857B005)
1
O-RING
5411220
$11,54 Unit Price incl. VAT
2
TUBE SPACER
5010384
Not Available
3
ARM IDLER ASM (Incl. 8 9)
1822407
Not Available
4
NUT FLEXLOC B(10) Substituted by 7542403
7542456
Not Available
5
NUT LOCK (10)
7542503
$18,89 Unit Price incl. VAT
6
WASHER
7555721
$2,09 Unit Price incl. VAT
7
BUSHING
3563907
$7,34 Unit Price incl. VAT
8
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
9
SPACER
5010385
Not Available
10
ARM PITMAN ASM Substituted by 1822562 (Incl. 8 9)
1822405
Not Available
11
Nut
7542403
Not Available
12
ROD END RH
7060174
$99,74 Unit Price incl. VAT
13
NUT-3/8-24-2B-Z
7542401
$4,19 Unit Price incl. VAT
14
ROD DRAGLINK
5333411
Not Available
15
NUT-3/8-24-(L.H.)-Y
7542424
$1,56 Unit Price incl. VAT
16
ROD END LH.
7060164
$99,74 Unit Price incl. VAT
17
SCR-HH-3/8-24X5.5 GR5 ZY3
7512404
$7,34 Unit Price incl. VAT
18
FITTING LUB/VEN(10)
7080561
$9,44 Unit Price incl. VAT
19
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
20
POST STRG FORMED Substituted by 1820552-067
1823179067
Not Available
21
BOLT (10) Substituted by 7517377
7512239
7517377
$9,44 Unit Price incl. VAT
22
CLIP(10)
7080278
$4,71 Unit Price incl. VAT
23
NUT(10)
7542124
7542122
$2,09 Unit Price incl. VAT
24
RIVET INTERLOCK B(50)
7661638
$2,09 Unit Price incl. VAT
25
HOOP STEERING
1012486067
Not Available
26
BOLT-CARRIAGE(10)
7512275
$7,34 Unit Price incl. VAT
27
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
28
BOLT(10) Substituted by 7512377
7512394
7512377
$9,44 Unit Price incl. VAT
29
STOP TORQUE
1012618
Not Available
30
NUT-3/8-16 HX THIN-Y
7542414
$9,44 Unit Price incl. VAT
31
STOP TORQUE COARSE
3110058
Not Available
32
BOOT TIE ROD
5410954
Not Available
33
PLATE BOOT BLK
5211679067
Not Available
34
RIVET-POP 5/32(.251-.375)-ST-B
7621323
$2,09 Unit Price incl. VAT
35
BOLT (10)
7512564
Not Available
36
TIEROD BLK
5020857067
Not Available
36
ROD TIE BLK (RMK)
5020885067
Not Available
37
WASHER THRUST(10)
7555876
Not Available
38
ROD END LH
7060166
$99,74 Unit Price incl. VAT
39
SCREW(10)
7515434
Not Available
40
NUT FLEXLOC
7542411
$6,29 Unit Price incl. VAT
41
BOLT(10) Substituted by 7517583
7515491
7515433
$3,14 Unit Price incl. VAT
42
WASHER FLAT
7555893
$1,56 Unit Price incl. VAT
43
RACK ASM STEERING
1822408
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
