1
Engine displacement
800
2
Year
2010
3
Trim
SPORTSMAN 800 EFI - A10MH76AJ/MN76AX/AZ
4
Parts Catalog
BRAKES, BRAKE PEDAL AND MASTER CYLINDER
5
Parts Diagram
Parts Catalog
BRAKE LINES
by
DRIVE TRAIN, FRONT PROP SHAFT

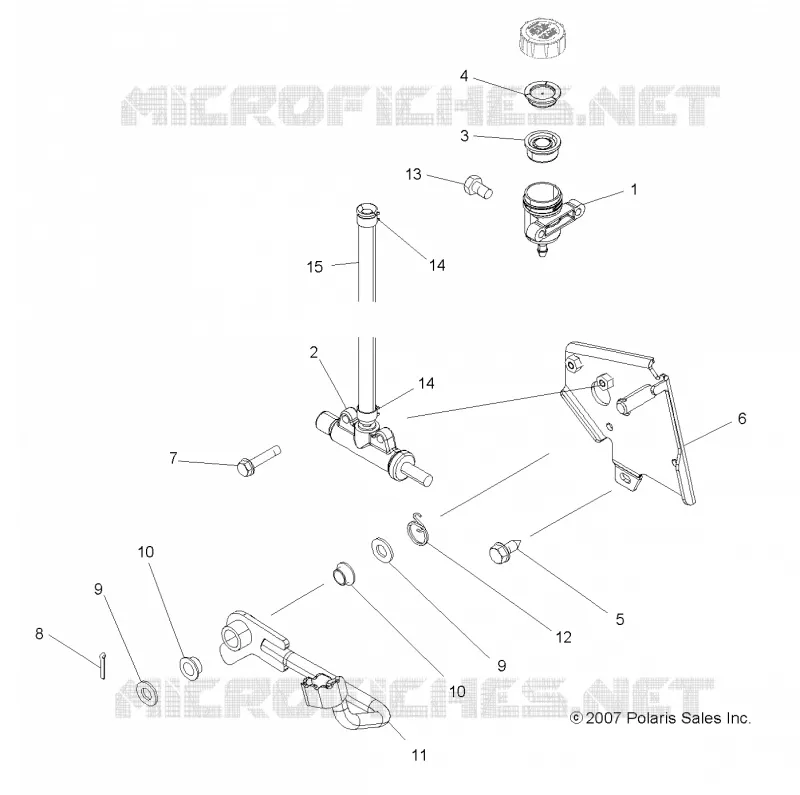

BRAKES, BRAKE PEDAL AND MASTER CYLINDER
1
2
3
4
5
6
7
8
9
9
10
10
11
12
13
14
14
15
1
ASM-RESERVOIR BRAKE TALL 2-EAR [INCL. 1-3]
1911224
$68,24 Unit Price incl. VAT
2
Asm. Master Cylinder Brake Foot [Incl. Hose Clamps]
1911274
Not Available
3
DIAPHRAGM RESERVOIR BRAKE
5413262
$9,44 Unit Price incl. VAT
4
RING RESERVOIR BRAKE
5437041
$10,49 Unit Price incl. VAT
5
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
$2,09 Unit Price incl. VAT
6
Mount Brake Black
1015617067
$56,90 Unit Price incl. VAT
7
Screw
7515158
$9,44 Unit Price incl. VAT
8
PIN COTTER
7661401
$1,56 Unit Price incl. VAT
9
WASHER-.510X.840X.031 Y
7555919
$7,34 Unit Price incl. VAT
10
BUSHING PIVOT PEDAL
5433189
$7,34 Unit Price incl. VAT
11
Pedal Brake Black
1911076067
Not Available
12
SPRING-TORSION BRAKE
7041750
$16,79 Unit Price incl. VAT
13
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
14
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
15
HOSE RESERVOIR
1911267660
1911267-790
$23,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
