1
Engine displacement
330
2
Year
2003
3
Trim
MAGNUM 330 4X4 - A03CD32AA/AB/AC/FB
4
Parts Catalog
MAGNETO
5
Parts Diagram
Parts Catalog
FRONT STRUT
by
REAR RACK MOUNTING

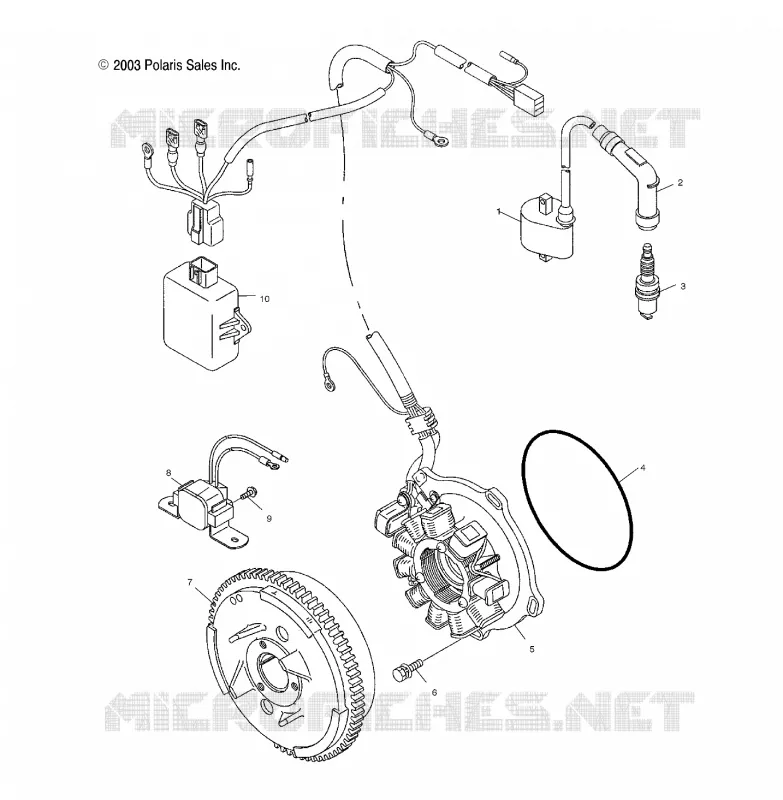

MAGNETO
1
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
1
COIL IGNITION Substituted by 3086483 (If built before 3/1/99)
3086484
Not Available
1
Asm. Ignition Coil [Incl. 1 2]
3087036
Not Available
2
CAP-SPARK PLUG
3087037
$73,49 Unit Price incl. VAT
3
Plug Spark
3087257
3070172
$7,34 Unit Price incl. VAT
4
O-RING
3084978
$68,24 Unit Price incl. VAT
5
Asm. Plate
3087252
Not Available
6
BOLT&WASHER ASM.
3081657
$9,44 Unit Price incl. VAT
7
Magneto Complete
3087251
$680,39 Unit Price incl. VAT
8
SWITCH MAGNETIC *
3087196
4011335
$115,49 Unit Price incl. VAT
9
Bolt Flange
3087258
Not Available
10
CDI System
3087253
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
