1
Engine displacement
800
2
Year
2015
3
Trim
800 SWITCHBACK PRO-X
4
Parts Catalog

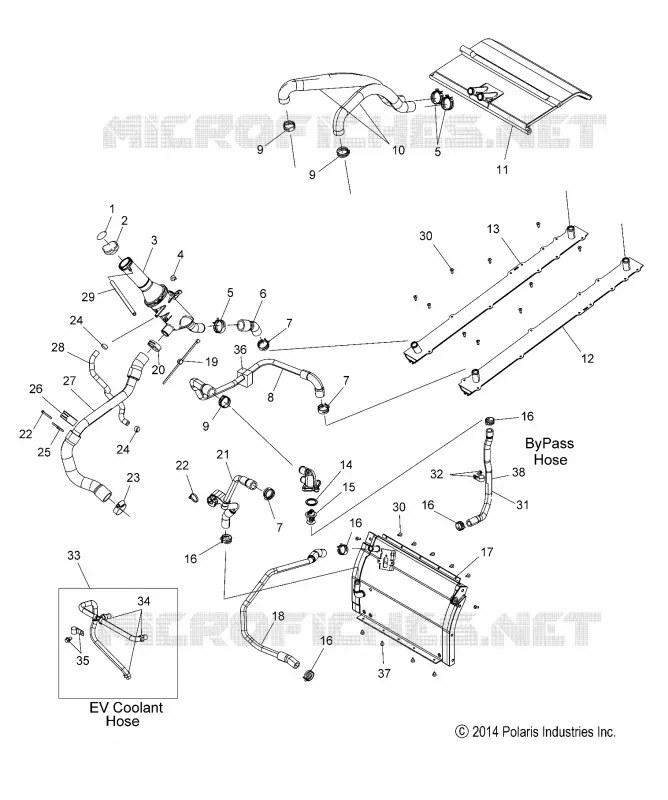

COOLING SYSTEM
5
Parts Diagram
Parts Catalog
ENGINE, AIR INTAKE SYSTEM
by
CRANKCASE
COOLING SYSTEM
1
2
3
4
5
5
6
7
7
7
8
9
9
9
10
11
12
13
14
15
16
16
16
16
16
17
18
19
20
21
22
22
23
24
24
25
26
27
28
29
30
30
31
32
32
33
34
32
32
36
37
38
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
1
DECAL WATER BOTTLE CAP
7170063
Not Available
2
CAP PRESSURE
1240169
1240300
$73,49 Unit Price incl. VAT
3
ASM. BOTTLE COOLANT
2521338
$73,49 Unit Price incl. VAT
4
RIVET
7621467
$2,09 Unit Price incl. VAT
5
CLAMP BROWN OR SILVER 32/12
7080843
$7,34 Unit Price incl. VAT
6
HOSE BOTTLE/TUNNEL OUT
5414911
$27,29 Unit Price incl. VAT
7
SPRINGBAND-CLAMP 26/12
7081692
$8,39 Unit Price incl. VAT
8
ASM. HOSE ENG./COOLER
1262492
$188,99 Unit Price incl. VAT
9
SPRINGBAND-CLAMP 29/12 BLK
7080842
$13,64 Unit Price incl. VAT
10
HOSE TUNNEL COOLER/MFC
5414922
$83,99 Unit Price incl. VAT
11
COOLER MID FLAP
1240735
$745,49 Unit Price incl. VAT
12
COOLER WEAR STRIP 137 LH
1240727
$193,19 Unit Price incl. VAT
13
COOLER WEAR STRIP 137 RH
1240728
$241,49 Unit Price incl. VAT
14
O-RING
5411521
$36,74 Unit Price incl. VAT
15
THERMOSTAT-50C TBYS JH8-4
7052615
$73,49 Unit Price incl. VAT
16
CLAMP-SPRINGBAND 24/12
7081693
$8,39 Unit Price incl. VAT
17
ASM. COOLER BULKHEAD
1240857
1241285
$839,99 Unit Price incl. VAT
18
ASM-HOSE COOLER/ENG WATERPUMP
1262626
$194,24 Unit Price incl. VAT
19
CLIP-ROUTING
7081496
$9,44 Unit Price incl. VAT
20
SPRINGBAND-CLAMP 35/12 BLK
7080844
$19,94 Unit Price incl. VAT
21
ASM. HOSE ENG./CLOSEOFF
1262563
Not Available
22
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
23
CLAMP HOSE SS
7080560
$20,99 Unit Price incl. VAT
24
CLAMP HOSE
7080534
$3,14 Unit Price incl. VAT
25
CABLE-TIE 25-76MM WEATH.-RES.
7080492
$5,24 Unit Price incl. VAT
26
SUPPORT-HOSE
5415302
$15,74 Unit Price incl. VAT
27
ASM. HOSE BOTTLE/ENGINE
1262625
$293,99 Unit Price incl. VAT
28
HOSE-TBODY/COOLANT BOTTLE
5414969
$23,09 Unit Price incl. VAT
29
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
30
RIVET-4.8MM DIA-1.5-6.0 GRIP
7661973
$2,09 Unit Price incl. VAT
31
ASM. HOSE BYPASS AFS SNOW [INCL. 27 29]
1205187
$62,99 Unit Price incl. VAT
32
SCREW
7517278
$10,49 Unit Price incl. VAT
32
CLAMP-.75ID RUBBER COATED MED
7082047
$6,29 Unit Price incl. VAT
33
ASM-SUB EV COOLANT HOSE [INCL. 14]
1205097
$73,49 Unit Price incl. VAT
34
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
35
CLAMP VINYL COATED
7080998
$6,29 Unit Price incl. VAT
35
SCREW
7517278
$10,49 Unit Price incl. VAT
36
FOAM COOLING HOSE
5814178
$26,24 Unit Price incl. VAT
37
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
38
CONDUIT-FLEX .750#ID 16CM
552139816
$16,79 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
