Engine displacement
500
2
Year
2013
3
Trim
SPORTSMAN TOURING 500 HO - A13DH50AX/AZ
4
Parts Catalog
CRANKCASE
5

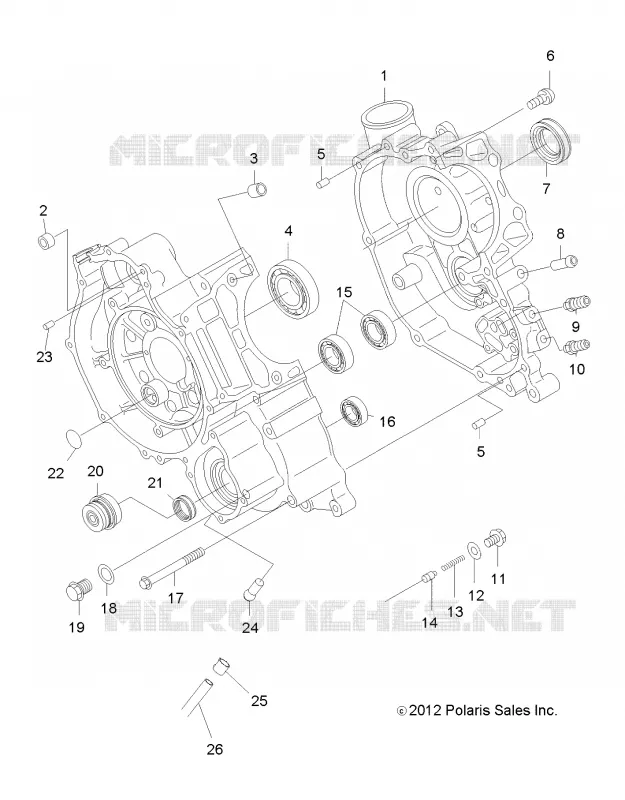

Parts Diagram
Parts Catalog
COOLING SYSTEM
by
ENGINE, CRANKSHAFT AND PISTON
CRANKCASE
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
Asm. Crankcase [Incl. 1 4 5 7 8 11 12 17 20 21 23]
3089240
$1 732,49 Unit Price incl. VAT
2
BUSHING STARTER
3083669
Not Available
3
Pin Knock
3087266
Not Available
4
Bearing Ball
3085815
$74,54 Unit Price incl. VAT
5
Pin Dowel
3090304
$12,59 Unit Price incl. VAT
6
SCREW & WASHER(10)
3084205
$7,34 Unit Price incl. VAT
7
SEAL OIL
3084839
$52,49 Unit Price incl. VAT
8
PIPE AIR BREATHER
3085525
Not Available
9
Fitting Oil Inlet
3087154
Not Available
10
Union
3090305
$62,99 Unit Price incl. VAT
11
Plug
3084845
Not Available
12
Gasket Aluminum
3089450
$9,44 Unit Price incl. VAT
13
SPRING
3084844
$9,44 Unit Price incl. VAT
14
VALVE-ONEWAY
3086810
Not Available
15
BEARING BALL
3084834
$40,94 Unit Price incl. VAT
16
BEARING BALL
3084835
Not Available
17
BOLT FLANGE
3084841
Not Available
18
GASKET
3082956
$9,44 Unit Price incl. VAT
19
PLUG
3086749
Not Available
20
SEAL MECHANICAL
3084837
$125,99 Unit Price incl. VAT
21
SEAL OIL
3084836
Not Available
22
O-RING
3084847
$12,59 Unit Price incl. VAT
23
PIN DOWEL
3086838
$13,64 Unit Price incl. VAT
24
PIPE PULSE
3083798
7052145
$17,84 Unit Price incl. VAT
25
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
26
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
