1
Engine displacement
650
2
Year
2023
3
Trim
650 SKS 146
4
Parts Catalog

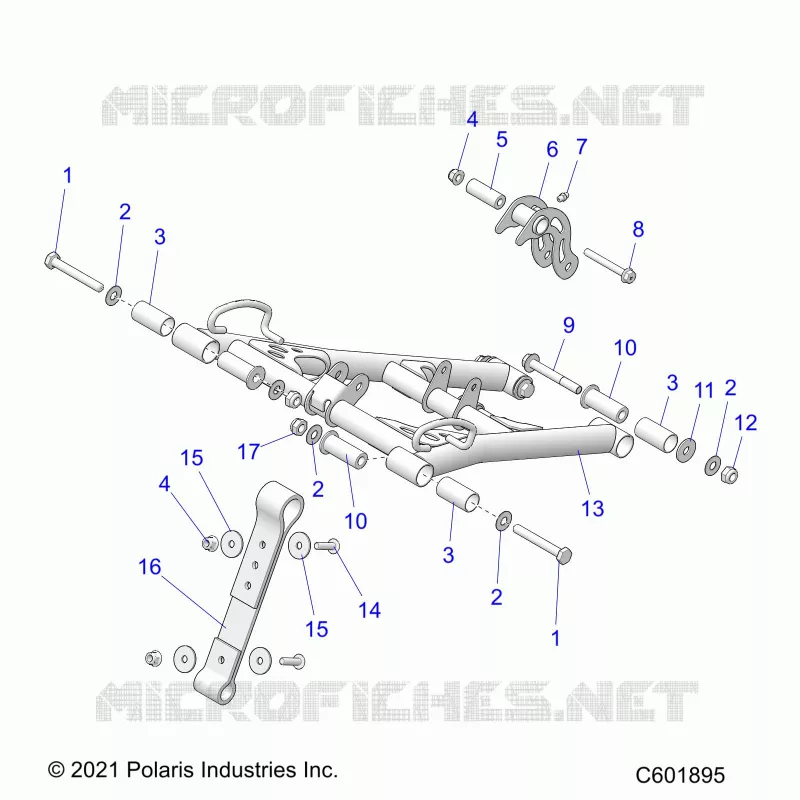

SUSPENSION, FRONT TORQUE ARM
5
Parts Diagram
Parts Catalog
SUSPENSION, RAIL BEAM LH/RH
by
SUSPENSION, REAR TORQUE ARM
SUSPENSION, FRONT TORQUE ARM
1
1
2
2
2
2
3
3
3
4
4
5
6
7
8
9
10
10
11
12
13
14
15
15
16
17
1
SCREW M10x75 HCS
7519015
$10,49 Unit Price incl. VAT
2
WASHER
7556545
$6,29 Unit Price incl. VAT
3
BUSHING PIVOT
5438875
$20,99 Unit Price incl. VAT
4
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
5
BUSHING RTS PIVOT
5140030
$13,64 Unit Price incl. VAT
6
PIVOT SHOCK E-COAT
1543515329
$52,49 Unit Price incl. VAT
7
FITTING-LUBRICATION 1/4-28
7080424
$9,44 Unit Price incl. VAT
8
SCREW M8x65
7519212
$9,44 Unit Price incl. VAT
9
SCREW M10x75 HXFL
7519286
$13,64 Unit Price incl. VAT
10
SHAFT PIVOT
5137367
$52,49 Unit Price incl. VAT
11
WSHR-10.4X28.58X2.4 ZOD
7556563
$6,29 Unit Price incl. VAT
12
NUT HEX
7547793
$7,34 Unit Price incl. VAT
13
ASM. FRONT TORQUE ARM [INCL. 3]
1543509329
$467,24 Unit Price incl. VAT
14
SCREW M8x30 TR/TX
7518953
$3,14 Unit Price incl. VAT
15
WASHER
7556175
$9,44 Unit Price incl. VAT
16
STRAP LIMITER
5414733
$47,24 Unit Price incl. VAT
17
NUT-HEX M10X1.5 8 ZOD NYL
7547442
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
