1
Engine displacement
1000
2
Year
2018
3
Trim
SPORTSMAN 1000 XP ZUG
4
Parts Catalog

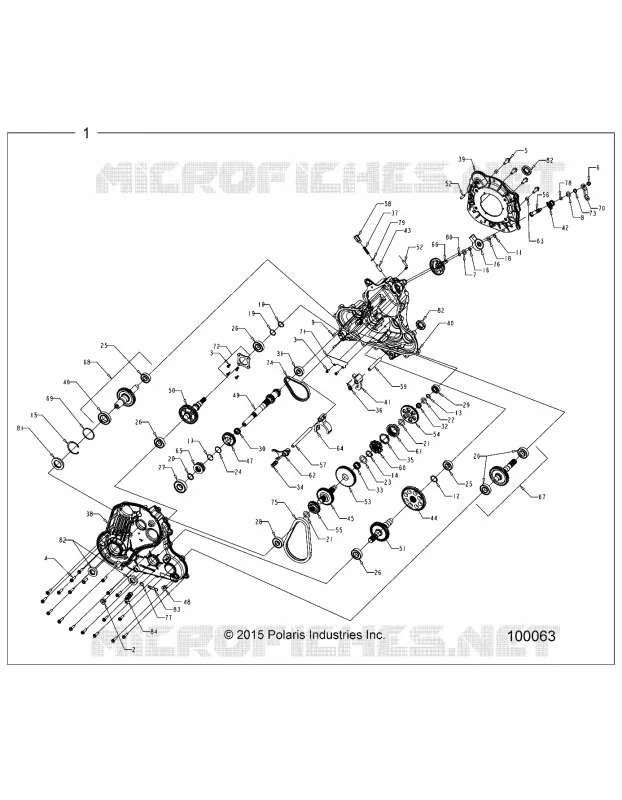

DRIVE TRAIN, MAIN GEARCASE
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, GEARCASE MOUNTING, REAR
by
DRIVE TRAIN, PRIMARY CLUTCH
DRIVE TRAIN, MAIN GEARCASE
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
25
25
26
26
26
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
82
82
83
84
1
ASM-TRANS BOSS/LUK CLSD RATIO [INCL. ALL]
1333482
$5 680,49 Unit Price incl. VAT
2
PLUG-SOCKET HEAD W/MAG M18X1.5
3234756
$57,74 Unit Price incl. VAT
3
SCREW 6-LOBE PAN HD M6 X 1 X 16
3234309
$13,64 Unit Price incl. VAT
4
SCREW HEX FLANGE HEAD M8 X 1.25 X 30
3234898
$17,84 Unit Price incl. VAT
5
SCREW HEX FLANGE HEAD M10 X 1.5 X 30
3234634
$25,19 Unit Price incl. VAT
6
NUT LOCK HEX FLANGE NYLON 5/16-24
3233961
$5,24 Unit Price incl. VAT
7
WASHER THRUST 0.5 X 0.937 X 0.063
3234636
$14,69 Unit Price incl. VAT
8
WASHER THRUST .625 X 1.000 X 0.063
3234637
$20,99 Unit Price incl. VAT
9
PIN DOWEL 6 X 20
3234330
$13,64 Unit Price incl. VAT
10
RING RETAINING BASIC EXTERNAL 0.984
3233106
$10,49 Unit Price incl. VAT
11
RING RETAINING BASIC EXTERNAL
3233834
$19,94 Unit Price incl. VAT
12
RING RETAINING IRR 7200-118
3233699
$13,64 Unit Price incl. VAT
13
RING RETAINING EXTERNAL SHR-66
3234318
$5,76 Unit Price incl. VAT
14
RING RETAINING BASIC EXTERNA
3234327
$13,64 Unit Price incl. VAT
15
RING RETAINING BASIC INTERNAL 62MM
3234741
$17,84 Unit Price incl. VAT
16
RING RETAINING BASIC EXTERNAL SHR-50
3234639
$19,94 Unit Price incl. VAT
17
RING RETAINING EXTERNAL USC-112
3234641
$26,24 Unit Price incl. VAT
18
WASHER THRUST 0.446 X 0.88 X 0.025
3234642
$19,94 Unit Price incl. VAT
19
KIT LUK INPUT SHAFT SHIM PACK
2204343
$54,59 Unit Price incl. VAT
20
WASHER THRUST 1.300 X 0.995 X 0.065
3234248
$17,84 Unit Price incl. VAT
21
SHIM 1.35 OD X 0.818 ID
3234643
$68,24 Unit Price incl. VAT
22
SHIM 1.17 OD X 0.675 ID
3234644
$26,24 Unit Price incl. VAT
23
WASHER THRUST 1.568 OD X .1.110 ID
3234646
$41,99 Unit Price incl. VAT
24
WASHER THRUST � 33 X � 29 X 1.5
3234757
$20,99 Unit Price incl. VAT
25
BEARING BALL 6204 20 X 47 X 14
3233018
$47,24 Unit Price incl. VAT
26
BEARING
3233019
$54,59 Unit Price incl. VAT
27
BEARING BALL 6305 C3 25 X 62 X 17
3233020
$80,84 Unit Price incl. VAT
28
BEARING BALL 6304 C3 20X52X15
3234651
$27,29 Unit Price incl. VAT
29
BEARING BALL 6203 17 X 40 X 12
3234274
$47,24 Unit Price incl. VAT
30
BEARING NEEDLE SPLIT CAGE
3234759
$27,29 Unit Price incl. VAT
31
BEARING BALL 6303 17 X 47 X 14
3234652
$27,29 Unit Price incl. VAT
32
BEARING NEEDLE CAGE ASSY 20 X 24 X 10
3234655
$27,29 Unit Price incl. VAT
33
BEARING NEEDLE 28 X 33 X 13
3234656
$27,29 Unit Price incl. VAT
34
SPRING COMPRESSION 0.648 O.D. X 1.33
3234687
$16,79 Unit Price incl. VAT
35
SPRING WAVE 1.60 ID X 0.375
3234688
$19,94 Unit Price incl. VAT
36
SPRING PARK PAWL TORSION
3234787
$52,49 Unit Price incl. VAT
37
SPRING COMPRESSION 0.45 OD X 1.58
3234790
$47,24 Unit Price incl. VAT
38
GEARCASE GTO COVER MACH.
3235790
$1 133,99 Unit Price incl. VAT
39
BELLHOUSING MACH
3235196
$68,24 Unit Price incl. VAT
40
GEARCASE MAIN GTO MACH
3235428
$593,24 Unit Price incl. VAT
41
PAWL PARK
3234692
3239339
$99,74 Unit Price incl. VAT
42
GEAR SECTOR 38T
3234694
$62,99 Unit Price incl. VAT
43
Bullet Detent
3234695
$68,24 Unit Price incl. VAT
44
SPROCKET 44 TOOTH
3234998
$125,99 Unit Price incl. VAT
45
Shaft Reverse 53T
3234774
$367,49 Unit Price incl. VAT
46
BEARING BALL 6007 C3 35 X 62 X 14
3233265
$68,24 Unit Price incl. VAT
47
GEAR HELICAL 42T
3235133
$152,24 Unit Price incl. VAT
48
PLUG SOCKET HEAD
3234755
$52,49 Unit Price incl. VAT
49
SHAFT INPUT 25T REM
3235063
$593,24 Unit Price incl. VAT
50
SHAFT INPUT
3235194
$435,74 Unit Price incl. VAT
51
SHAFT OUTPUT REAR
3235789
$734,99 Unit Price incl. VAT
52
TUBE VENT 90 -1/4 INCH HOSE
3234230
$19,94 Unit Price incl. VAT
53
GEAR 67T
3234706
$173,24 Unit Price incl. VAT
54
SPROCKET 48T 6-FACE
3234707
$68,24 Unit Price incl. VAT
55
Sprocket 23T
3235544
$73,49 Unit Price incl. VAT
56
SHAFT SHIFT BELLCRANK
3234712
$120,74 Unit Price incl. VAT
57
Rail Shift Shaft
3234714
$52,49 Unit Price incl. VAT
58
Plug Detent
3234715
$68,24 Unit Price incl. VAT
59
RAIL PARK SHAFT
3234716
$52,49 Unit Price incl. VAT
60
DOG ENGAGEMENT GTO LOW
3234718
$346,49 Unit Price incl. VAT
61
DOG ENGAGEMENT GTO REV/LOW
3235341
$335,99 Unit Price incl. VAT
62
FORK SHIFT
3235342
$167,99 Unit Price incl. VAT
63
PIPE KNOCK
3234765
$26,24 Unit Price incl. VAT
64
FORK SHIFT
3234766
$167,99 Unit Price incl. VAT
65
DOG ENGAGEMENT GTO HIGH
3235190
$136,49 Unit Price incl. VAT
66
SUBASM. SWITCH SHAFT
3234767
$230,99 Unit Price incl. VAT
67
SUBASSY OUTPUT FRONT W/BEARINGS (#26)
3235788
$451,49 Unit Price incl. VAT
68
SUBASSEMBLY PRIMARY SHAFT W/BEARINGS (#46 & #25)
3235191
$577,49 Unit Price incl. VAT
69
KIT GTO PRIMARY SHIM PACK
2204268
$68,24 Unit Price incl. VAT
70
BELLCRANK 15T SPLINE
3234724
$52,49 Unit Price incl. VAT
71
Deflector Oil
3234725
$26,24 Unit Price incl. VAT
72
SUBASSY BEARING COVER W/SCREWS (#3)
3235198
$40,94 Unit Price incl. VAT
73
WASHER RIBBED
3235508
$7,34 Unit Price incl. VAT
74
CHAIN SILENT TYPE 101 .25P X .40W X 58L
3234737
$314,99 Unit Price incl. VAT
75
CHAIN SILENT 0.5 X .375P X 64P
3234738
$456,74 Unit Price incl. VAT
76
SWITCH ROTARY 6-PIN ITW [GEAR POSITION]
3233835
3236115
$225,74 Unit Price incl. VAT
77
O-RING
3234302
$13,64 Unit Price incl. VAT
78
O-RING -014 VITON
3233828
$12,59 Unit Price incl. VAT
79
O-RING 0.53 I.D X 0.082 WIDE
3234729
$25,19 Unit Price incl. VAT
80
O-RING - N70 9.5 MM X 2 MM
3234730
$14,69 Unit Price incl. VAT
81
SEAL 35 X 62 X 8
3234769
$78,74 Unit Price incl. VAT
82
SEAL TRIPLE LIP 0.984 X 1.85 X 0.315 VITON
3234892
$68,24 Unit Price incl. VAT
83
LABEL OIL
2877606
$37,79 Unit Price incl. VAT
84
SENSOR-SPEED TRANS
4013908
4082135
$204,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
