1
Engine displacement
650
2
Year
2023
3
Trim
650 SWITCHBACK SP 146
4
Parts Catalog

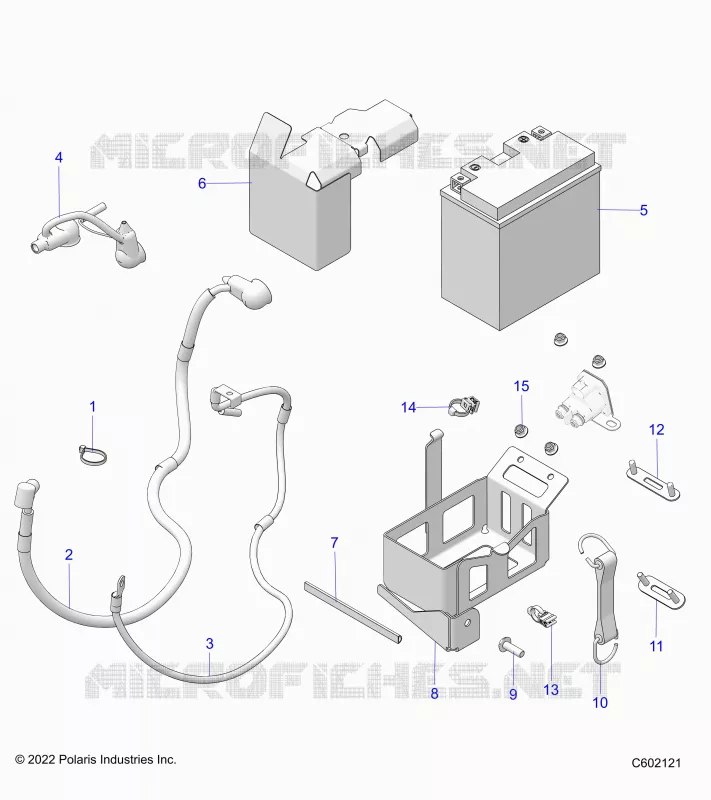

ELECTRICAL, BATTERY/BOX AND CABLES
5
Parts Diagram
Parts Catalog
REFERENCES, OWNERS MANUAL, TOOLS, BELT HOLDER
by
ELECTRICAL, WIRE HARNESS, MAIN
ELECTRICAL, BATTERY/BOX AND CABLES
1
2
3
4
5
5
6
7
8
9
10
10
11
12
13
14
15
1
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
2
CABLE-880MM 4 GA RED [INCL. INSULATOR]
4080763
$99,74 Unit Price incl. VAT
3
CABLE-940MM 4 GA BLACK
4080764
$89,24 Unit Price incl. VAT
4
ASM-CABLE BATTERY/SOLENOID
2416467
2417138
$99,74 Unit Price incl. VAT
5
BATTERY [SVC]
4013045
$215,24 Unit Price incl. VAT
5
KIT BATTERY BOLT [INCL. BOLTS NUTS]
2202213
$6,29 Unit Price incl. VAT
6
SHIELD HEAT BATTERY
5262301
$52,49 Unit Price incl. VAT
7
SEAL-BULB 350CM [BULK SVC]
5521697350
$73,49 Unit Price incl. VAT
8
WELD-BATTERY BOX
1022248
$89,24 Unit Price incl. VAT
9
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$6,29 Unit Price incl. VAT
10
D-HOOK
5224468
$17,84 Unit Price incl. VAT
10
STRAP RUBBER [DOES NOT INCL. D-HOOK]
5410608
5419141
$16,58 Unit Price incl. VAT
11
ASM-STUD PLATE
1017181
$18,89 Unit Price incl. VAT
12
ASM-STUD PLATE
1023931
$20,99 Unit Price incl. VAT
13
STRAP-CABLE TIE W/SIDE CLIP
7082510
$9,44 Unit Price incl. VAT
14
CLIP-EDGE 1-3mm THICKNESS
7082403
$9,44 Unit Price incl. VAT
15
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
