1
Engine displacement
500
2
Year
2009
3
Trim
SCRAMBLER 500 4X4 INTL - A09BG50FA
4
Parts Catalog
SWITCHES AND SENSORS AND CONTROL MODULES
5
Parts Diagram
Parts Catalog
IGNITION SYSTEM
by
TAIL LIGHT

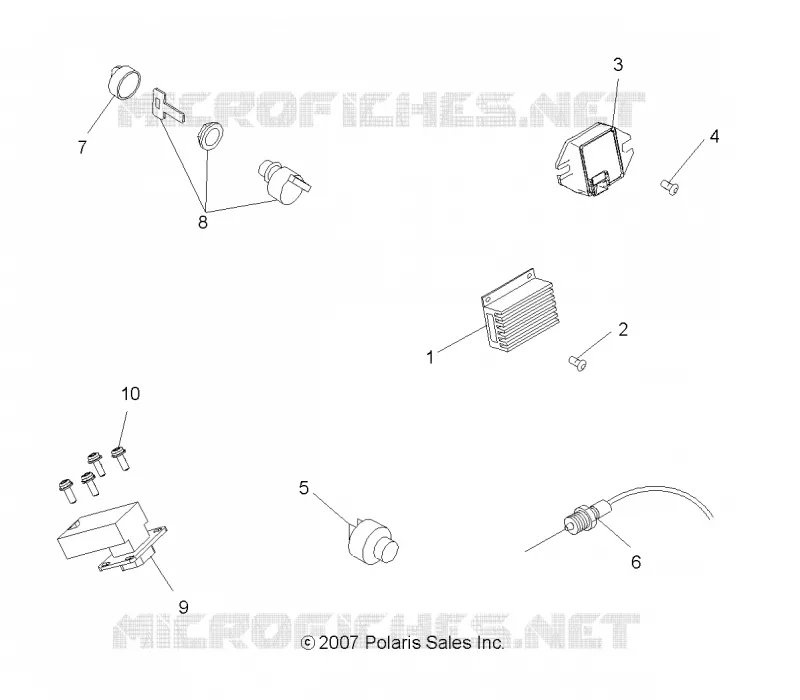

SWITCHES AND SENSORS AND CONTROL MODULES
1
2
3
4
5
6
7
8
8
8
9
10
1
2
3
4
5
6
7
8
9
10
1
Controller Module
4011700
Not Available
2
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
$9,44 Unit Price incl. VAT
3
Limiter RPM
4011855
Not Available
4
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
5
SWITCH-BRK 1/8#-27 NPTF SEALED [BRAKE LIGHTS]
4110164
2890637
$325,49 Unit Price incl. VAT
6
Asm. Thermo Sensor
3089246
Not Available
7
Cover-Key
5433534
5465307
$26,24 Unit Price incl. VAT
8
SWITCH KEY 3 POSITION [INCL. 23-25]
4012165
4083589
$202,64 Unit Price incl. VAT
8
NUT-IGNITION SWITCH HOBBS
5433733
$41,99 Unit Price incl. VAT
8
BLANK KEY SERIES 2000 2100 6700 6800 [NOTE:YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY]
4010278
4083605
$27,29 Unit Price incl. VAT
9
Switch 3 Position
3234002
$262,49 Unit Price incl. VAT
10
SCREW TAPPING TORX PH 11902 X.50
3233749
$10,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
