1
Engine displacement
800
2
Year
2014
3
Trim
RANGER 800 EFI MIDSIZE - R14RH76AA/76AC/7EAZ
4
Parts Catalog

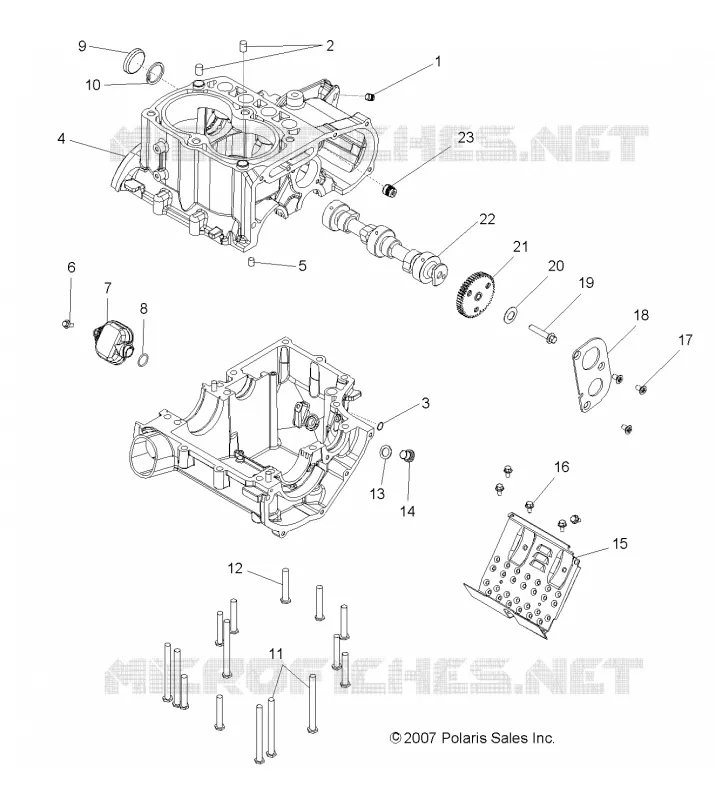

CRANKCASE
5
Parts Diagram
Parts Catalog
REGULATOR, RELAYS, SENSORS AND ECU
by
ENGINE, CRANKSHAFT
CRANKCASE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
PLUG EXPANSION 9MM
7051531
$13,64 Unit Price incl. VAT
2
DOWEL
7661175
$10,49 Unit Price incl. VAT
3
PLUG-EXPANSION 19MM
7051530
$15,74 Unit Price incl. VAT
4
KIT CRANKCASE [INCL. 1-3 5-16 23 ALSO FROM ENGINE CRANKSHAFT PAGE 1 7 AND FROM ENGINE OIL FILTER AND DIPSTICK PAGE 3-6 10]
2204395
$1 847,99 Unit Price incl. VAT
5
PIN DOWEL
7663001
$20,99 Unit Price incl. VAT
6
SCR-HXFL-M5X0.8X14 18-8
7516603
$19,94 Unit Price incl. VAT
7
ASM. OIL PICKUP
1202663
$104,99 Unit Price incl. VAT
8
SEAL O-RING
5812016
$5,76 Unit Price incl. VAT
9
PLUG EXPANSION 42MM
3060004
$31,49 Unit Price incl. VAT
10
RING RETAINING
7710512
$7,34 Unit Price incl. VAT
11
SCREW
7517792
$4,19 Unit Price incl. VAT
12
SCR-M8X1.25X50 HX/FL-Y
7517793
$10,49 Unit Price incl. VAT
13
WASHER-19X12X1.3 COPPER
5812232
$3,14 Unit Price incl. VAT
14
PLUG-SOCKET M12X1.5 DIN 908A
7052306
$31,49 Unit Price incl. VAT
15
PLATE BAFFLE
5211785
$73,49 Unit Price incl. VAT
16
SCREW-M5X.80X10-HX/FL-Y/D
7518045
$19,94 Unit Price incl. VAT
17
SCREW-M6X12 TORX DR FH
7517598
$19,94 Unit Price incl. VAT
18
PLATE THRUST
5244286
$99,74 Unit Price incl. VAT
19
SCREW
7517865
$20,99 Unit Price incl. VAT
20
WASHER SPRING
7556183
$17,84 Unit Price incl. VAT
21
KIT GEAR SET
2203106
Not Available
22
KIT CAMSHAFT
2203740
$871,49 Unit Price incl. VAT
23
PLUG EXPANSION 13MM
7052288
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
