1
Engine displacement
700
2
Year
2004
3
Trim
A04CH68AU/CU SPORTSMAN 700 - A04CH68AP/AQ/AU/CU
4
Parts Catalog

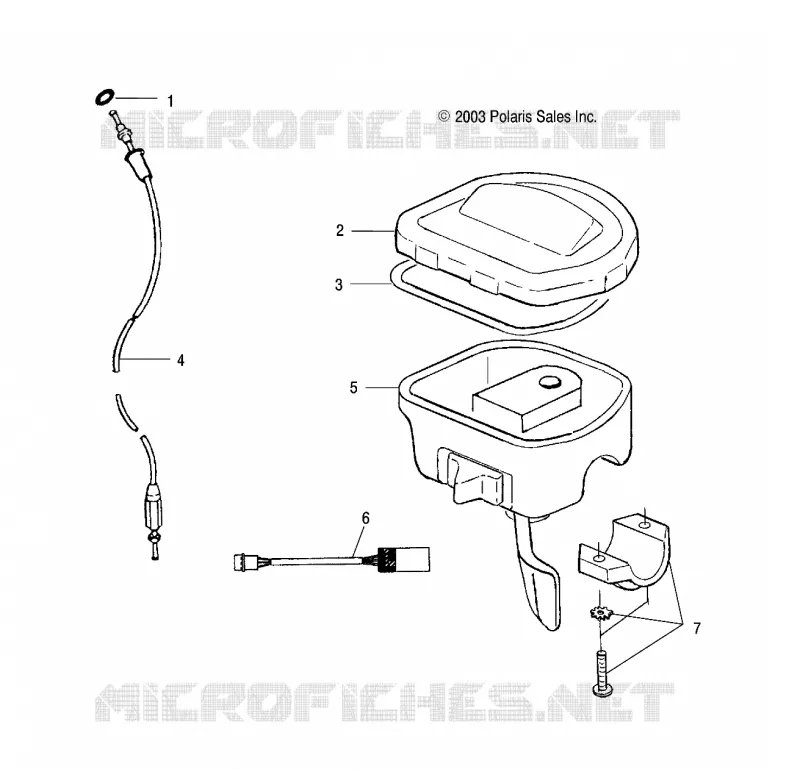

CONTROLS-THROTTLE ASM/CABLE
5
Parts Diagram
Parts Catalog
FRONT PROP SHAFT
by
REAR WHEEL DRIVE
CONTROLS-THROTTLE ASM/CABLE
1
2
3
4
5
5
6
7
1
2
3
4
5
6
7
1
O-RING
5410193
$7,34 Unit Price incl. VAT
2
Cover
5434113
$68,24 Unit Price incl. VAT
3
O-RING (10)
5411439
$4,19 Unit Price incl. VAT
4
Cable Throttle
7081182
7081220
$104,99 Unit Price incl. VAT
5
Asm. Throttle Control AWD [Incl. 7]
2010230
$351,74 Unit Price incl. VAT
5
Asm. Throttle Control AWD Thumb (Incl. 6 7)(AQ)
2010234
Not Available
6
ASM. THUMB WARMER ATV
2410420
$136,49 Unit Price incl. VAT
7
Asm. Throttle Clamp [INCL. CLAMP WASHERS SCREWS]
2010191
$68,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
