1
Engine displacement
500
2
Year
1995
3
Trim
500 EFI SKS PDLTRK - 0952974
4
Parts Catalog
FUEL PUMP 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0952974, AND EURO (4929052905D001)
5
Parts Diagram
Parts Catalog
THROTTLE BODYWORK 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0952 (4929052905C014)
by
TUNNEL ASSEMBLY 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0952974, AN (4929052905A006)

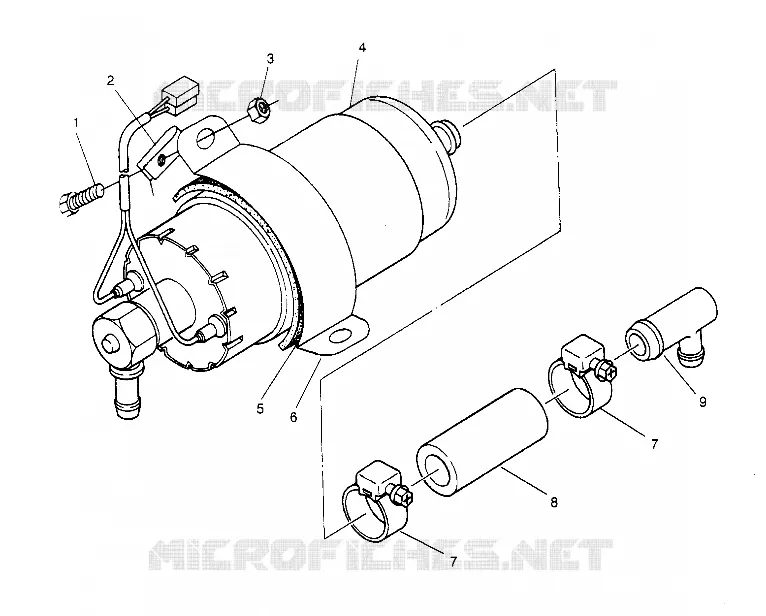

FUEL PUMP 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0952974, AND EURO (4929052905D001)
1
BOLT-CARRIAGE(10)
7512263
$7,34 Unit Price incl. VAT
2
NUT SPEED
7670021
$10,49 Unit Price incl. VAT
3
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
4
PUMP FUEL Substituted by 3084082
3084083
Not Available
4
PUMP FUEL *
3084082
Not Available
5
PAD FUELPUMP BRKT. Substituted by 5810290
5810508
5810290-CO
$13,64 Unit Price incl. VAT
6
BRKT FUEL PUMP BLK.
5222488067
Not Available
7
CLAMP HOSE
3084085
Not Available
8
HOSE PUMP
3084084
Not Available
9
L-PIPE
3084086
$33,06 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
