1
Engine displacement
570
2
Year
2018
3
Trim
SPORTSMAN 570 SP EPS TOURING
4
Parts Catalog

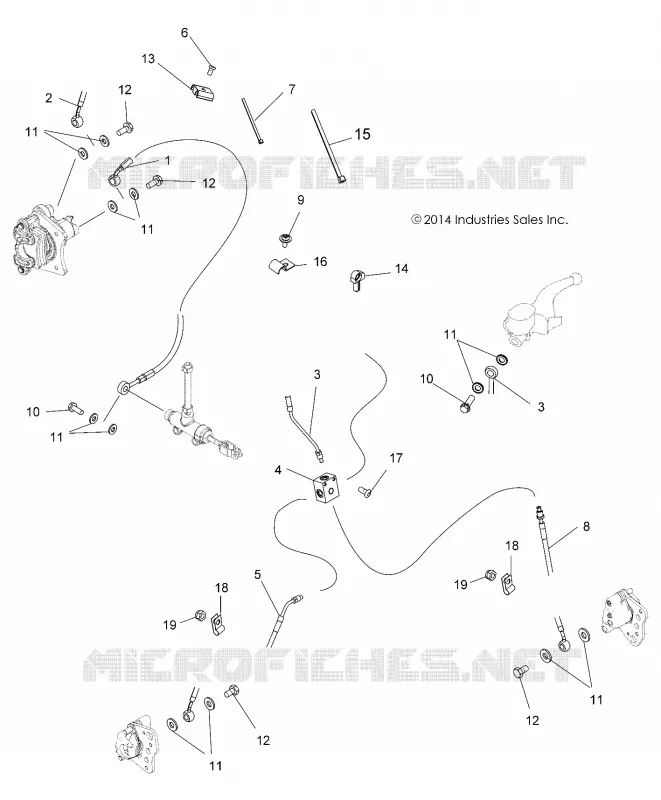

BRAKE LINES
5
Parts Diagram
Parts Catalog
BODY, STORAGE BOX, REAR
by
CHASSIS, FUEL TANK SUPPORT BRACKET
BRAKE LINES
8
9
10
10
11
11
11
11
11
11
12
12
12
12
13
14
15
16
17
18
18
19
19
1
LINE-BRK MCR 44 70B 20B 90 G2
1913042
$178,49 Unit Price incl. VAT
2
LINE-BRK RR 87 90F 70B 70 G2
1913043
$204,74 Unit Price incl. VAT
3
LINE-BRK MCT 22 30B CF1 0 JF
1913044
$120,74 Unit Price incl. VAT
4
FITTING-CROSS ATV BRAKE
7052292
$73,49 Unit Price incl. VAT
5
LINE BRAKE FRONT
1912386
$125,99 Unit Price incl. VAT
6
SCR-#10-24X5/8PN/TR-RDTORX-Y
7517756
$2,09 Unit Price incl. VAT
7
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
8
LINE BRAKE LEFT FRONT
1912385
$115,49 Unit Price incl. VAT
9
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
$9,44 Unit Price incl. VAT
10
BOLT-BANJO 10MM X 1.25-6G
1910958
$14,69 Unit Price incl. VAT
11
SEAL-STAT-0-3/8 70EP
5413212
$9,44 Unit Price incl. VAT
12
BOLT-BANJO 10MMX1.00-6G
1910499
$10,49 Unit Price incl. VAT
13
CLIP-RETAINING DUAL .250# LINE
7670126
$9,44 Unit Price incl. VAT
14
CLIP-SILENCER BOX-C 98 INDY
7670102
$4,19 Unit Price incl. VAT
15
CABLE-TIE 10-102MM WEATH.-RES.
7080761
$5,24 Unit Price incl. VAT
16
CLIP-HALF-Y
7081940
$7,34 Unit Price incl. VAT
17
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
18
CLIP-P W/CUSHION BLACK VINYL
7082067
$6,29 Unit Price incl. VAT
19
NUT-3/8-24 NYLOK LOW HT Y
7547025
$4,71 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
