1
Engine displacement
1000
2
Year
2022
3
Trim
RZR RS1 EPS
4
Parts Catalog
DRIVE TRAIN, CLUTCH COVER AND DUCTING
5
Parts Diagram
Parts Catalog
CHASSIS, MOUNTING, FRONT GEARCASE
by
DRIVE TRAIN, FRONT GEARCASE

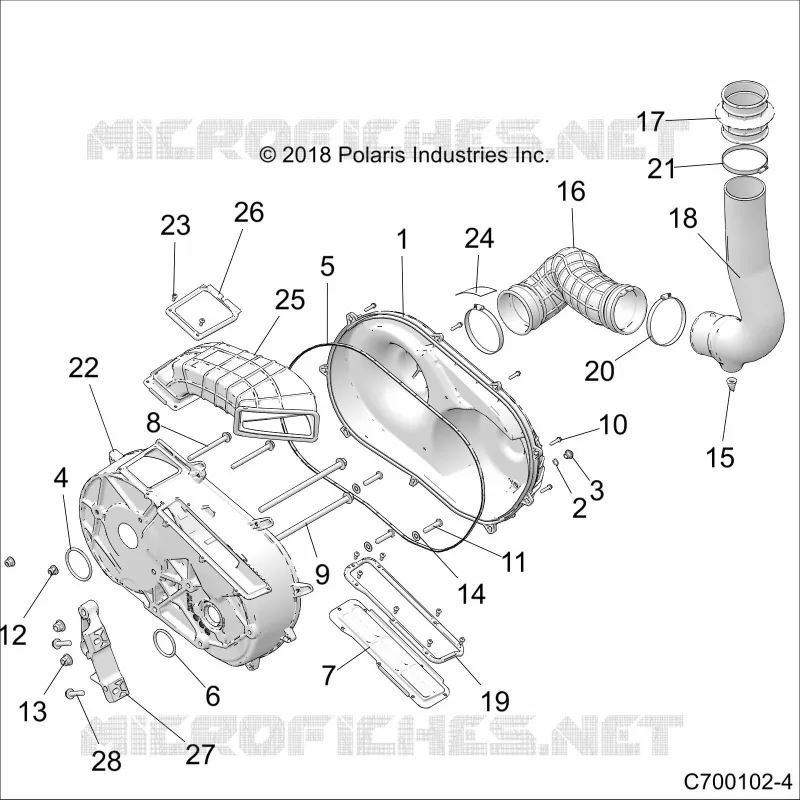

DRIVE TRAIN, CLUTCH COVER AND DUCTING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1
ASM-COVER CLUTCH OUTER [NCL. 2 3]
2637068
$398,99 Unit Price incl. VAT
2
O-RING-0.489X0.629X0.070 EPDM
5416606
$6,81 Unit Price incl. VAT
3
PLUG-DRAIN 9/16-18 PP
5454915
$10,49 Unit Price incl. VAT
4
O-RING-0.489X0.629X0.070 EPDM
5415647
$3,14 Unit Price incl. VAT
5
SEAL-OUTER CLUTCH COVER
5417715
$40,94 Unit Price incl. VAT
6
O-RING-2.25X2.625X.21 NBR BARB
5417662
$15,74 Unit Price incl. VAT
7
COVER-INLET
5416440
$68,24 Unit Price incl. VAT
8
SCR-HXFL-M10X1.5X115 8.8 ZY3
7518526
$5,76 Unit Price incl. VAT
9
SCR-M12X1.75X250 8.8 HX/FL ZOD
7518970
$41,99 Unit Price incl. VAT
10
SCR-HXFLG M6X1.0X25 10.9
7519754
$7,34 Unit Price incl. VAT
11
SCR-TXBH-M10X1.5X45 8.8ZOD P30
7520323
$10,49 Unit Price incl. VAT
12
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$7,34 Unit Price incl. VAT
13
NUT-HXFL M12X1.75 8 ZOD NYL
7547441
$9,44 Unit Price incl. VAT
14
WSHR-10.5X22.0X1.6 SPC
7556155
$9,44 Unit Price incl. VAT
15
PLUG-DRAIN
5414472
$10,49 Unit Price incl. VAT
16
HOSE-CLUTCH AIR INLET
5416222
$89,24 Unit Price incl. VAT
17
BOOT-CLUTCH INTAKE
5416221
$136,49 Unit Price incl. VAT
18
DUCT-CLUTCH INLET
5453918
$194,24 Unit Price incl. VAT
19
PLATE-INLET CLUTCH DUCT SEAL
5633909
$68,24 Unit Price incl. VAT
20
CLAMP-WORM DRIVE .44WX4.25 DIA(10)
7080813
$7,34 Unit Price incl. VAT
21
CLAMP-WORM DRIVE 3.69 DIA
7081626
$14,69 Unit Price incl. VAT
22
COVER-CLUTCH INNER MACH
5144058
2209338
$556,49 Unit Price incl. VAT
23
SCR-TXPH-M6X1.0X15 GR5 ZOD NYL
7518656
$7,34 Unit Price incl. VAT
24
DECAL-BELT WARNING/CHECK
7177469
Not Available
25
HOSE-CLUTCH AIR OUTLET
5416316
$167,99 Unit Price incl. VAT
26
MOUNT-OUTLET DUCT
5633826
5634514
$52,49 Unit Price incl. VAT
27
BRKT-TRANSJOINT MAG MACH
5143634
5144809
$89,24 Unit Price incl. VAT
28
SCR-HXFL-M10X1.5X1.5 8.8 ZY3
7518531
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
