1
Engine displacement
570
2
Year
2016
3
Trim
sportsman-touring-tractor-570-efi-eps
4
Parts Catalog

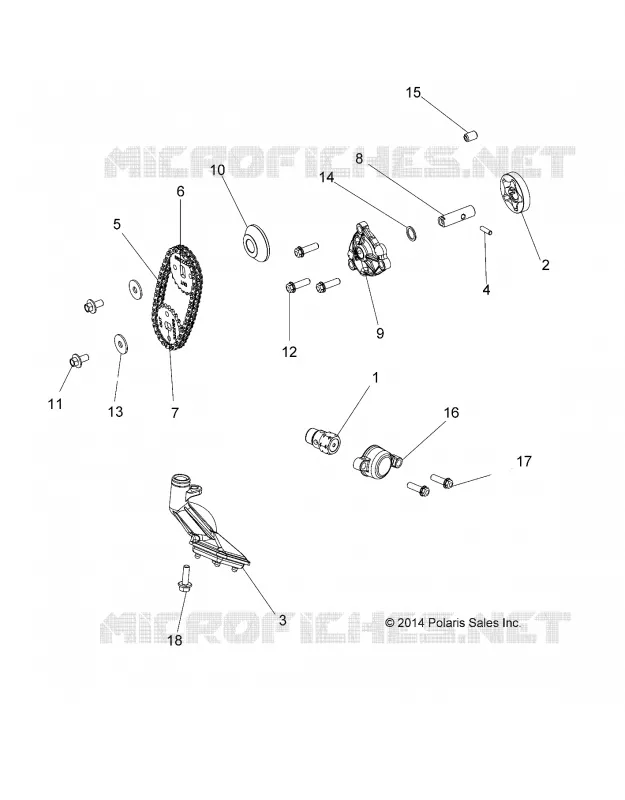

OIL PUMP
5
Parts Diagram
Parts Catalog
ENGINE, MOUNTING
by
OWNERS MANUAL
OIL PUMP
1
2
3
4
5
6
7
8
9
10
11
17
13
14
15
16
17
18
1
ASM. REGULATOR VALVE
2521459
$104,99 Unit Price incl. VAT
2
ASM-GEROTOR
1204293
$115,49 Unit Price incl. VAT
3
PICKUP OIL
2521451
$99,74 Unit Price incl. VAT
4
PIN-SOLID M4X15.8
3022308
$7,34 Unit Price incl. VAT
5
CHAIN OIL PUMP DRIVE
3222216
$62,99 Unit Price incl. VAT
6
SPROCKET-23T DRIVE
3222198
$26,24 Unit Price incl. VAT
7
SPROCKET-21T DRIVEN
3222199
$26,24 Unit Price incl. VAT
8
SHAFT-OIL PUMP
5138077
$52,49 Unit Price incl. VAT
9
COVER OIL PUMP
5138320
5143695
$73,49 Unit Price incl. VAT
10
SPACER-SPROCKET
5137451
$73,49 Unit Price incl. VAT
11
SCREW-HXFL-M6X1.0X12 10.9 ZPC
7517257
$17,84 Unit Price incl. VAT
12
SCREW-HXFL-M6X1.0X20 8.8 ZY3
7518576
$6,29 Unit Price incl. VAT
13
WASHER-6.4X20.0X1.6 01
7556054
$19,94 Unit Price incl. VAT
14
WASHER-11.2X15.0X1.0
7556570
$7,34 Unit Price incl. VAT
15
JET-OIL OIL PUMP
2540080
$17,84 Unit Price incl. VAT
16
COVER
5138339
$23,09 Unit Price incl. VAT
18
SCREW-M6X1.0X20-HX/FL-Y/D
7516822
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
