1
Engine displacement
1000
2
Year
2018
3
Trim
SCRAMBLER XP 1000
4
Parts Catalog
DRIVE TRAIN, REAR GEARCASE INTERNALS
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, GEAR SELECTOR
by
BATTERY

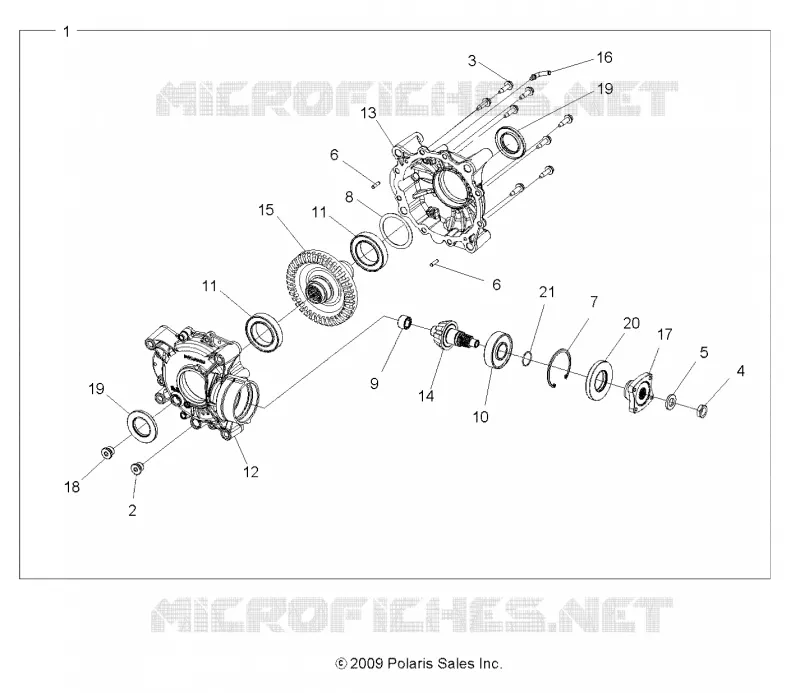

DRIVE TRAIN, REAR GEARCASE INTERNALS
1
2
3
4
5
6
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
19
21
1
ASM-REAR DRIVE 113.4MM [INCL. ALL]
1332802
$936,06 Unit Price incl. VAT
2
PLUG-SOCKET HEAD W/MAG M18X1.5
3234756
$57,74 Unit Price incl. VAT
3
SCREW HEX FLANGE HEAD M8 X 1.25 X 30
3234898
$17,84 Unit Price incl. VAT
4
NUT HEX M16 X 2.0
3234776
$19,94 Unit Price incl. VAT
5
CUP WASHER LOCKING 17 X 30
3234777
$78,74 Unit Price incl. VAT
6
PIN DOWEL 6 X 20
3234330
$13,64 Unit Price incl. VAT
7
RING RETAINING BEVELED INTERNAL 2.835
3234158
$41,99 Unit Price incl. VAT
8
SHIM 3.1 X 2.5
3233581
$73,49 Unit Price incl. VAT
9
BEARING NEEDLE DRAWN SHELL .75 X 1.0 X 0.625
3234799
$27,29 Unit Price incl. VAT
10
BEARING BALL 6306 STD 30X72X19
3233714
$54,59 Unit Price incl. VAT
11
BEARING BALL 6010 C3 50 X 80 X 10
3233268
$88,19 Unit Price incl. VAT
12
CASE MAIN
3234926
$440,99 Unit Price incl. VAT
13
SUBASSEMBLY COVER LH [INCL. 6]
3234937
$249,89 Unit Price incl. VAT
14
GEAR-37T STRAIGHT BEVEL
3234798
$309,74 Unit Price incl. VAT
15
SHAFT-PINION 10T STRAIGHTBEVEL
3234792
2204462
$2 383,49 Unit Price incl. VAT
16
TUBE VENT 90 -1/4 INCH HOSE
3234230
$19,94 Unit Price incl. VAT
17
COUPLER
3234782
$188,99 Unit Price incl. VAT
18
PLUG SOCKET HEAD
3234755
$52,49 Unit Price incl. VAT
19
SEAL TRIPLE LIP VITON HELIX 40X70X7
3235052
$57,74 Unit Price incl. VAT
21
O-RING 2-023 NITRILE
3234785
$17,84 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
