Engine displacement
500
2
Year
2009
3
Trim
SPORTSMAN 500 EFI TRACTOR - A09MN50ET
4
Parts Catalog
BRAKE PEDAL
5

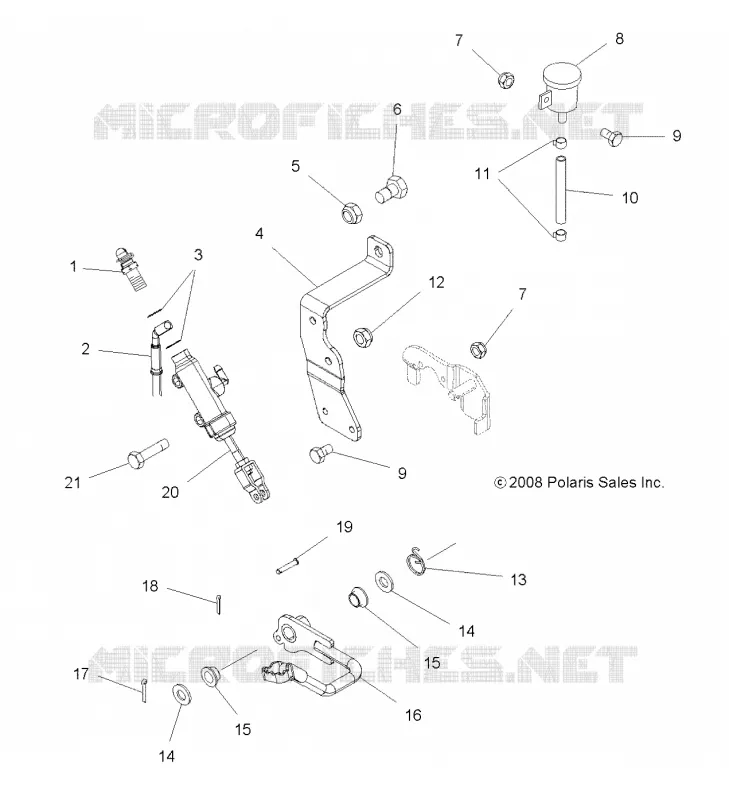

Parts Diagram
Parts Catalog
BRAKES, VALVE SYSTEM
by
DRIVE TRAIN, MAIN GEARCASE
BRAKE PEDAL
1
2
3
4
5
6
7
7
8
9
9
10
11
12
13
14
14
15
15
16
17
18
19
20
21
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
BOLT-BANJO 10MMX1 W/BLEEDER SC
1910886
$19,94 Unit Price incl. VAT
2
Line Foot to J/B
1911137
$96,06 Unit Price incl. VAT
3
SEAL-STAT-0-3/8 70EP
5413212
$9,44 Unit Price incl. VAT
4
Plate Brake Mnt
5249946067
$39,78 Unit Price incl. VAT
5
Nut Flanged Lock
7547263
$6,29 Unit Price incl. VAT
6
SCREW (10)
7517289
$9,44 Unit Price incl. VAT
7
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
8
Asm. Reservoir Brake Rear
1910674
$68,24 Unit Price incl. VAT
9
BOLT(10)
7512240
$7,34 Unit Price incl. VAT
10
Hose Reservoir
1911004
$7,97 Unit Price incl. VAT
11
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
12
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
13
SPRING-TORSION BRAKE
7041750
$16,79 Unit Price incl. VAT
14
WASHER-.510X.840X.031 Y
7555919
$7,34 Unit Price incl. VAT
15
BUSHING PIVOT PEDAL
5433189
$7,34 Unit Price incl. VAT
16
Pedal Brake Black
1015492067
$76,85 Unit Price incl. VAT
17
PIN COTTER(10)
7661011
$9,44 Unit Price incl. VAT
18
PIN COTTER
7661401
$1,56 Unit Price incl. VAT
19
PIN CLEVIS
7661013
$10,49 Unit Price incl. VAT
20
Asm. Master Cylinder Foot
1910995
$325,49 Unit Price incl. VAT
21
BOLT(10) Substituted by 7515352
7515306
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
